Accentra MO 4707LN Grade 1 Office Entry Function Cylindrical Lock
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).*
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- *Lever Handles are Free Wheeling in Locked Position
- ANSI F109

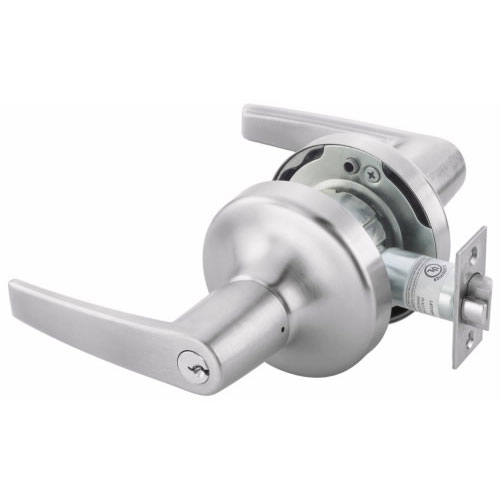

The Accentra MO 4707LN Office Entry Lockset (formerly Yale) is a premium, high-intent security solution engineered for executive suites, commercial entrances, and professional office environments. As a centerpiece of the Series 4700LN Grade 1 lineup, this cylindrical lockset is built to withstand the most rigorous use while providing the flexible security modes required by modern businesses.

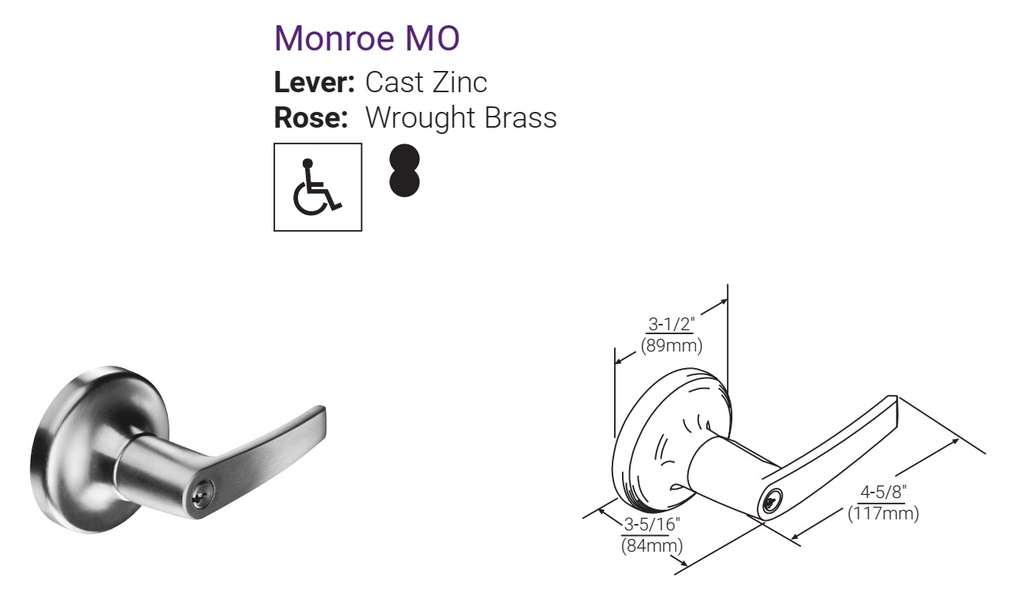

Featuring the contemporary and clean MO (Monroe) lever design, this hardware includes the advanced Free Wheeling lever mechanism. When the lock is engaged, the exterior lever rotates freely up and down, neutralizing the effects of vandalism or excessive force and protecting the internal chassis for years of reliable service.
Advanced Security & Versatile Operation
- Office Entry Function (ANSI F109): Provides high-level control with two locking modes. The inside turn-button can be pushed to lock the outside lever (released by key or inside lever), or pushed and rotated 90° to keep the exterior permanently locked until manually released.
- Grade 1 Industrial Strength: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, ensuring the highest structural integrity and cycle life available for commercial facilities.
- Free Wheeling Vandal Resistance: The exterior handle moves freely when locked, preventing unauthorized users from snapping the internal mechanism through forced torque.
- Deadlocking Protection: Equipped with a 1/2" throw deadlocking latchbolt to resist "shimming" and other forced entry techniques.
- Fire-Rated Safety: UL-cUL listed for all fire doors with a rating up to 3 hours, meeting strict life safety and building codes.
- Universal Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, providing easy, barrier-free operation for all staff and visitors.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | MO 4707LN |
| Function | Office / Entrance (ANSI F109) |
| Lever Style | Monroe (MO) |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4700 Series |
