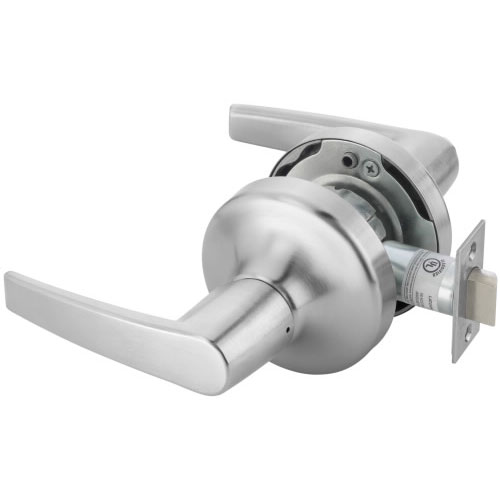

Accentra MO 4701LN Grade 1 Passage Function Cylindrical Lever
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75
The Accentra MO 4701LN Passage Function Lever (formerly Yale) represents the pinnacle of heavy-duty commercial door hardware. As a Series 4000 Grade 1 cylindrical latchset, this unit is engineered for the most demanding high-traffic environments, including hospitals, universities, and government facilities. When your project requires a non-locking solution that can withstand millions of cycles without fail, the MO 4701LN is the industry-standard choice.
This latchset features the contemporary and ergonomic MO (Monroe) lever design, combining architectural aesthetics with industrial-strength performance. The Accentra 4700LN Series is specifically designed with reinforced rose support plates, ensuring a secure and stable fit on heavy-duty commercial doors.
High-Performance Product Features
- Grade 1 Industrial Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, providing maximum resistance against wear and structural failure in the busiest corridors.
- Fire-Rated Safety: UL-cUL listed for all fire doors with a rating up to 3 hours, essential for maintaining building code integrity.
- Extended Service Life: Backed by an exceptional 7-Year Limited Warranty, ensuring long-term value and lower maintenance costs.
- Universal Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, allowing for effortless, barrier-free operation.
- Passage Function (ANSI F75): Perfect for hallways, closets, and common areas where locking is not required; both levers retract the latchbolt at all times.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | MO 4701LN |
| Function | Passage / Hall & Closet (ANSI F75) |
| Series | 4700LN Series |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |

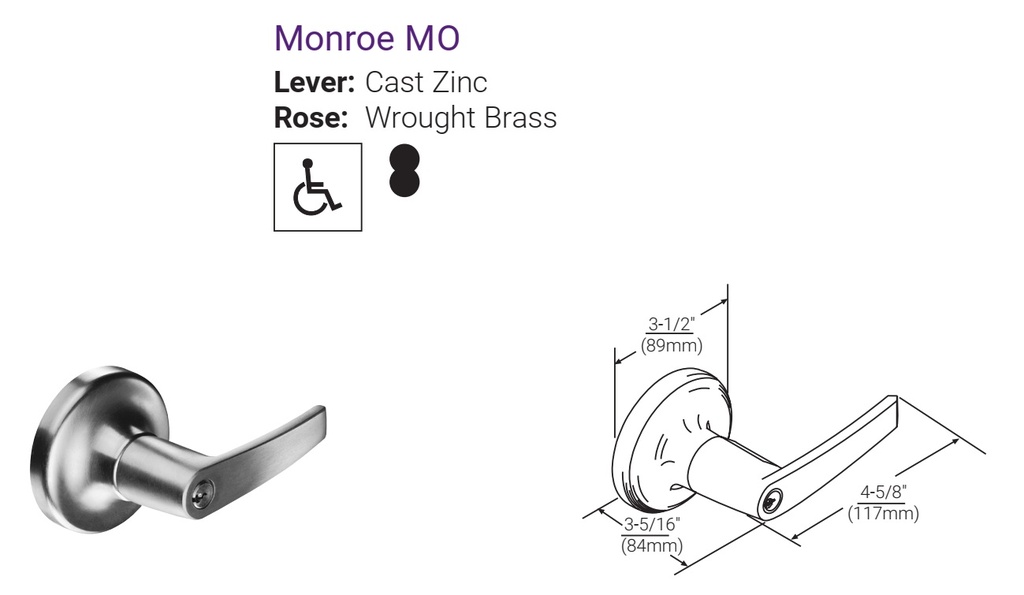

| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4700 Series |
