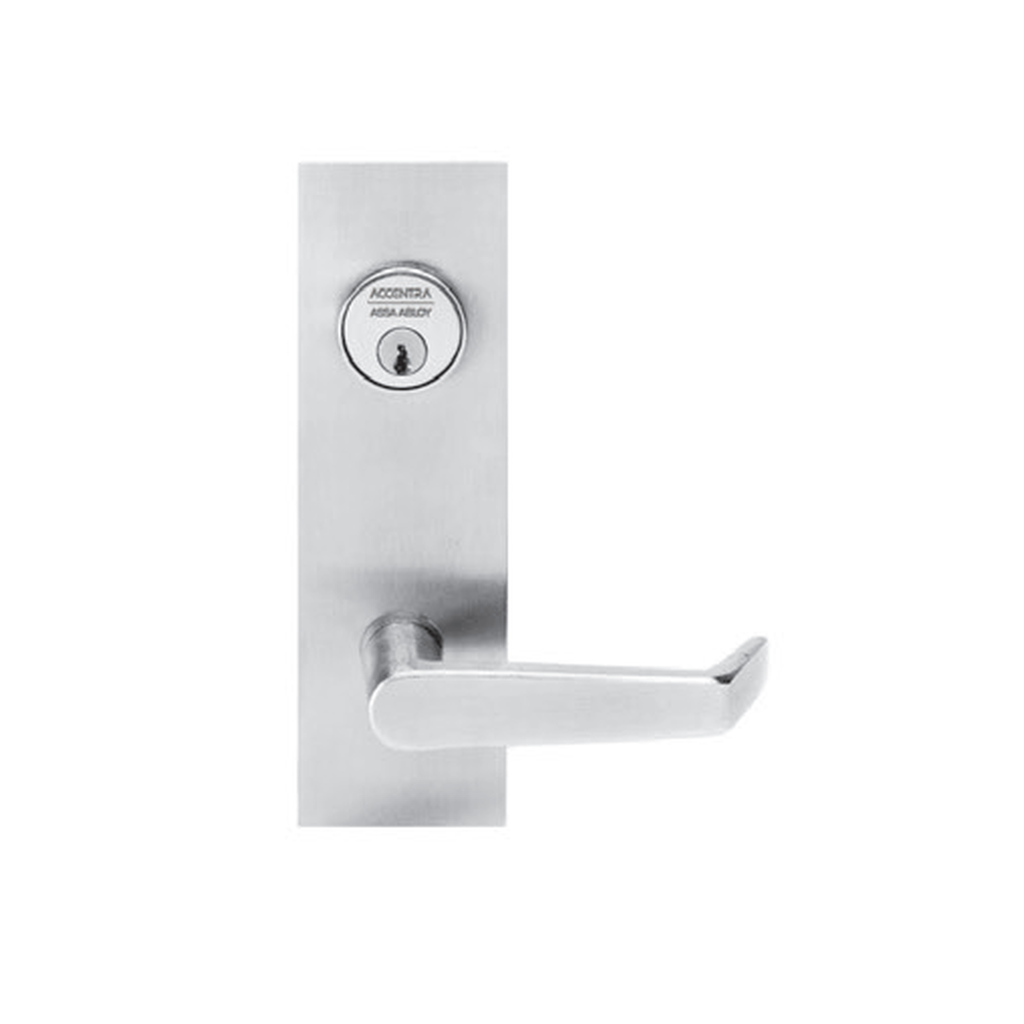

Accentra JNSL SL8860FL Room Door Mortise Lockset – Grade 1 Security
Function Info: Latchbolt retracted by knob/lever either side. Deadbolt operated by key outside, thumbturn inside.
The Accentra JNSL SL8860FL (formerly Yale SL8800 Series) is the heavy-duty security version of the 8800 Room Door Lock Function mortise lockset, built for openings where heavy abuse or vandalism is a concern. It is certified to ANSI/BHMA A156.13 Series 1000, Operational Grade 1, and the SL8800 with its security escutcheon also meets Security Grade 1. It carries the Jefferson (JNSL) lever on the SL security escutcheon.
Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Supplied in 630 Satin Stainless Steel, it is field reversible and ships with the door prep and installation drawings for the trim shown.
The SL security escutcheon is what sets this lock apart: heavy duty escutcheon trim that is flat against the door to resist damage and vandalism; lever attached directly to escutcheon for added security; thrubolted security head screws offer added protection. The SL8800 is furnished in 630 Satin Stainless Steel only; levers are Nickel Plated to match Stainless Steel.
Function Details: Room Door Lock (ANSI/BHMA F21)
- Lever Works the Latch from Either Side: Latchbolt retracted by knob/lever either side — either lever retracts the latchbolt, with no key needed to do it.
- Deadbolt, Keyed Outside and Turned Inside: Deadbolt operated by key outside, thumbturn inside — the deadbolt can be thrown or withdrawn from outside with the key and from inside by hand, so the opening can be secured from whichever side the person is on.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
- Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
- Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
- Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
- Mechanical Warranty: Backed for the long term against defects in the mechanical lock.
Technical Specifications & Compliance
| Model Number | JNSL SL8860FL (Room Door) |
| Lever Design | Jefferson (JNSL) |
| Trim | SL security escutcheon, thru-bolted (SL8800) |
| Certifications | ANSI/BHMA Grade 1 / UL & cUL 3-Hour Fire Rated. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| Security Grade | ANSI/BHMA A156.13 Security Grade 1 (SL8800 with security escutcheon) |
| Fire rating | UL / cUL Listed for use on fire doors. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 630 Satin Stainless Steel |
| Backset | 2-3/4" Only. |
| Armor front | 8" x 1-1/4". |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction. |
| Deadbolt | 1" Throw |
| Hubs | 3/8" Solid Steel (Heat Treated). |
| Door thickness | 1-3/4" Standard. |
| Strike | 4-7/8" ASA Strike Standard. Supplied as the 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. |
| Handing | Field Reversible (Furnished RH). |
| Case material | Wrought Steel, Zinc Dichromate Plated. |
| Cylinder | Standard 1-1/8" Mortise Cylinder (such as the 2153) with a 1/4" trim ring, and a 2160 cam outside. |
| Keying | Level One KA or KD; Level Two MK; Level Three GM; Level Four GGM. |
| Lever Handle | Cast. |
| Warranty | 10-Year Mechanical Warranty. |
| Accentra Keyways (formerly Yale) | E1R (Para) Keyway or B-SFIC or LC - Less Cylinder |
| Brand | Accentra (formally Yale Security) |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| ANSI Mortise Lock Function | F21 - Entrance/Storeroom |
| Trim Design | JNSL |
| Series | Accentra - 8800 Series |
