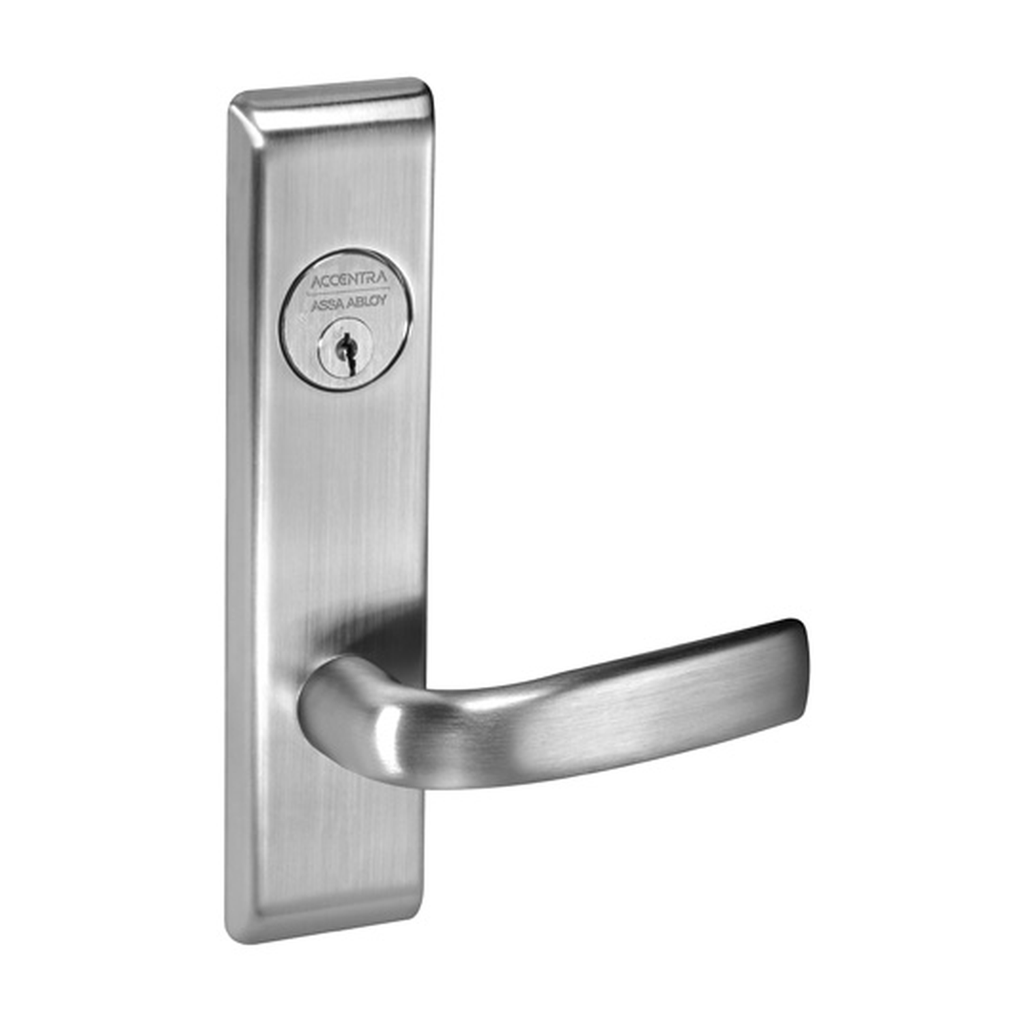

Accentra JNCN 8808FL Classroom Mortise Lockset – Grade 1 Security
Function Info: For classroom, office, or utility room doors. Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key. Inside knob/lever always active. Latchbolt can be retracted by key when outside knob/lever is locked. Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked. Deadlocking latchbolt.
The Accentra JNCN 8808FL (formerly Yale 8800 Series) is a heavy-duty Classroom Lock Function mortise lockset built for commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Grade 1 -- the highest operational and security grade the standard defines -- and carries the Jefferson (JNCN) lever on the Camden escutcheon.
Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Supplied in 626, it is field reversible and ships with the door prep and installation drawings for the trim shown.
Function Details: Classroom Lock (ANSI/BHMA F05)
- Typical Application: For classroom, office, or utility room doors — the openings this function is written for.
- Outside Lever Works Until It Is Locked: Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key — the outside lever retracts the latchbolt normally, and stops the moment the lock is set against it.
- Life-Safety Free Egress: Inside knob/lever always active — the inside lever is never locked, so a single motion always gets a person out.
- Key Entry While the Outside Stays Locked: Latchbolt can be retracted by key when outside knob/lever is locked — with the outside lever locked, the key withdraws the latchbolt for that one entry and leaves the outside lever locked behind it, so the room does not have to be unlocked to let someone in.
- Free Egress, Outside Unaffected: Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked — anyone inside leaves by turning the inside lever in a single motion, and doing so does not unlock the outside lever behind them.
- Anti-Shim Protection: Deadlocking latchbolt — a small plunger beside the latchbolt rides the strike when the door closes; with it depressed the latchbolt cannot be shimmed back with a card.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
- Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
- Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
- Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
- Mechanical Warranty: Backed for the long term against defects in the mechanical lock.
Technical Specifications & Compliance
| Model Number | JNCN 8808FL (Classroom) |
| Lever Design | Jefferson (JNCN) |
| Certifications | ANSI/BHMA Grade 1 / UL & cUL 3-Hour Fire Rated. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| Fire rating | UL / cUL Listed for use on fire doors. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 626 |
| Backset | 2-3/4" Only. |
| Armor front | 8" x 1-1/4". |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction. |
| Hubs | 3/8" Solid Steel (Heat Treated). |
| Door thickness | 1-3/4" Standard. |
| Strike | 4-7/8" ASA Strike Standard. Supplied as the 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. |
| Handing | Field Reversible (Furnished RH). |
| Case material | Wrought Steel, Zinc Dichromate Plated. |
| Cylinder | Standard 1-1/8" Mortise Cylinder (such as the 2153) with a 1/4" trim ring, and a 2160 cam outside. |
| Keying | Level One KA or KD; Level Two MK; Level Three GM; Level Four GGM. |
| Lever Handle | Cast. |
| Warranty | 10-Year Mechanical Warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or 693 - Painted, Black or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel |
| Accentra Keyways (formerly Yale) | E1R (Para) Keyway or B-SFIC or LC - Less Cylinder |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F05 - Classroom |
| Trim Design | JNCN |
| Series | Accentra - 8800 Series |
