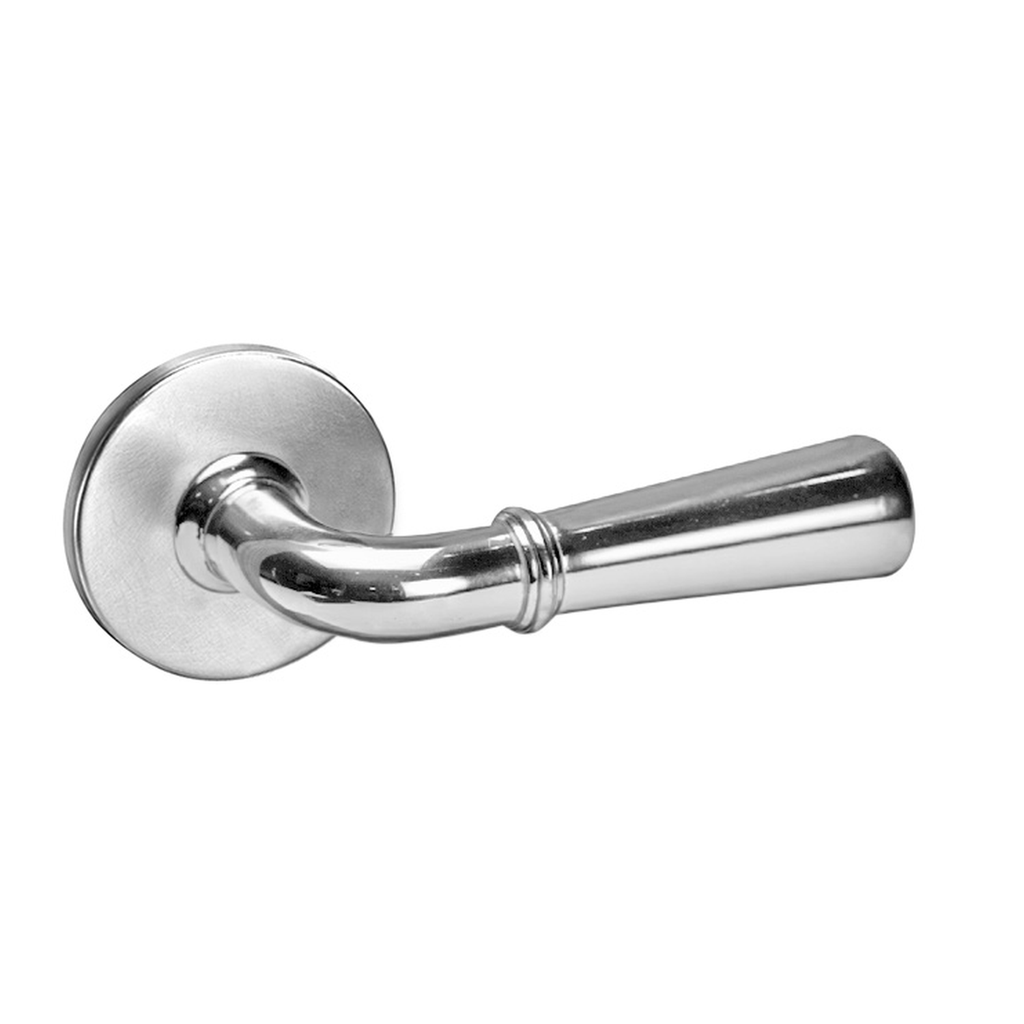

Accentra HAR 838BFL Dummy Trim Both Sides – Grade 1 Durability
Function Info: Push or pull only. Knob/lever both sides of inactive leaf of a pair of doors. Both knob/lever non-operational and rigid at all times. Available in all sectional and escutcheon trim. 2815 Strike available upon request.
The Accentra HAR 838BFL (formerly Yale 8800 Series) is a heavy-duty Dummy Trim Both Sides Function mortise dummy trim built for commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Grade 1 -- the highest operational and security grade the standard defines -- and carries the Hampton (HAR) lever on the standard rose.
Available in five architectural finishes, it ships with the door prep and installation drawings for the trim shown.
FIRE-RATED DOOR LIMITATION
This product is manufactured to UL standards, but it has no latchbolt and cannot self-latch, so it may not serve as the primary latching device on a fire-rated opening. Dummy trim may be applied to the inactive leaf of a pair of fire-rated doors, where the active leaf carries the latching device. Confirm the assembly listing and consult the authority having jurisdiction.
Function Details: Dummy Trim Both Sides
- A Pull, Not a Lock: Push or pull only — there is no lock mechanism of any kind here -- the trim mounts to the door and serves as a handle.
- Trim for the Inactive Leaf of a Pair: Knob/lever both sides of inactive leaf of a pair of doors — on a pair of doors this goes on the leaf that stays shut, giving it matching trim on both faces without a working lock.
- The Lever Does Not Turn: Both knob/lever non-operational and rigid at all times — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
- Offered in Every Trim Design: Available in all sectional and escutcheon trim — this function is built in the full range of sectional-rose and escutcheon trims, so it can be matched to whatever the working locks on the opening are wearing.
- Strike Supplied on Request: 2815 Strike available upon request — this function does not ship with a strike as standard -- the 2815 is available if the opening needs one.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
Technical Specifications & Compliance
| Model Number | HAR 838BFL (Dummy Trim Both Sides) |
| Lever Design | Hampton (HAR) |
| Certifications | ANSI/BHMA Grade 1. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 605, 606, 619, 625, 626 (5 finishes -- select above) |
| Lever Handle | Cast. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome |
| Brand | Accentra (formally Yale Security) |
| Trim Design | HAR |
| Series | Accentra - 8800 Series |
