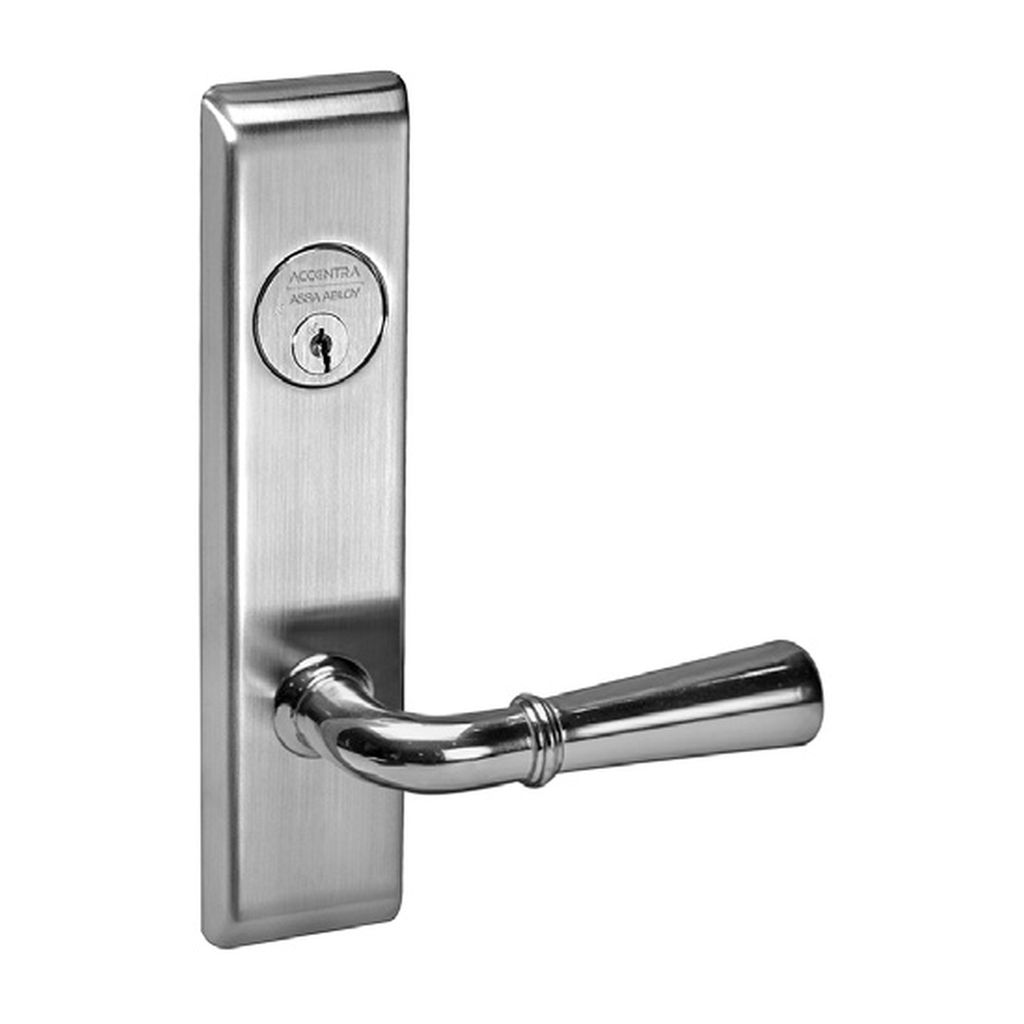

Accentra HACN 8899FL Fail Secure Electrified Mortise Lockset – Single Cylinder with Deadbolt, Both Levers Locked
Function Info: Power off - both levers locked. Power on - both levers active (even when deadbolt thrown). Auxiliary latch deadlocks latchbolt. Deadbolt projected by key outside, thumbturn inside. Mechanical key override by outside when locked. Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt.
The Accentra HACN 8899FL (formerly Yale 8800 Series) is a heavy-duty Fail Secure electrified mortise lockset with EcoFlex low-power technology -- single cylinder with deadbolt, both levers locked -- built for access-controlled commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Operational Grade 1. With the Camden escutcheon it also meets Security Grade 1. Factory set fail secure (power off - both levers locked; power on - both levers active (even when deadbolt thrown)); it carries the Hampton (HACN) lever on the Camden escutcheon.
Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Available in five architectural finishes, it is field reversible and ships with the door prep and installation drawings for the trim shown.
EcoFlex reduces energy consumption by up to 92% (GreenCircle certified) and lets the lock run on 12-24VDC (operating voltage not to exceed +/- 10%) at 15mA @ 12V or 24V continuous; 500mA @ 12V or 24V peak (max 2 locks per 1A power supply), so more locks share one power supply and longer cable runs do not degrade operation. Operating temperature -13F (-25C) to 151F (66C). The lock body ships fail secure and is field configurable to the other mode by a dip switch on the case, accessible before installation only, with a power cycle after the change. ElectroLynx connectors are standard (the door hinge must carry a compatible number of lead wires). Monitor switches available on this function, selectable above: Latchbolt Monitor (LBM) -- an SPDT switch that monitors full retraction of the latchbolt; Request to Exit (REX) -- an SPDT switch that monitors activation of the free lever; Deadbolt Monitor (DBM) -- an SPDT switch that monitors full retraction of the deadbolt. Typical applications: stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms.
FAIL SAFE / FAIL SECURE -- LIFE SAFETY
The system shall not be installed in fail secure mode unless permitted by the local authority having jurisdiction and shall not interfere with the operation of Listed panic hardware. (Accentra 8800 Series Electrified Mortise EcoFlex Locks Installation Instructions, 80-8800-0002-000)
DoorwaysPlus Note: Fail safe or fail secure is a life-safety decision governed by the applicable building and fire codes and the authority having jurisdiction -- stair re-entry, fire-alarm release and free egress from the secure side all bear on it -- not a matter of preference. Installation, power supply sizing and wiring are the work of a licensed electrical contractor or access control integrator. Gardner-Tobin Inc dba DoorwaysPlus supplies the hardware; it does not specify, install, or program it.

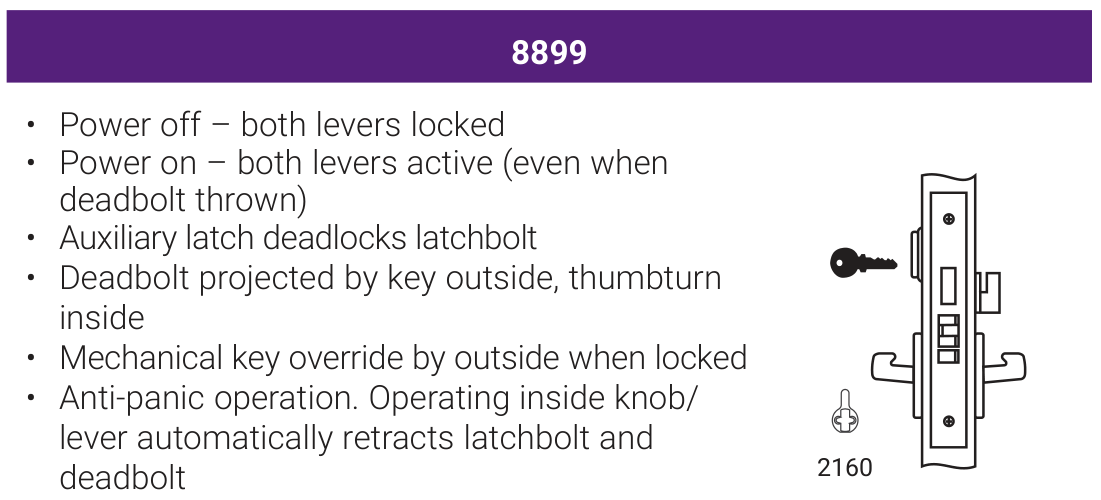

Function Details: Fail Secure Electrified Mortise Lockset, Single Cylinder with Deadbolt, Both Levers Locked
- Power off - both levers locked
- Power on - both levers active (even when deadbolt thrown)
- Auxiliary latch deadlocks latchbolt
- Deadbolt projected by key outside, thumbturn inside
- Mechanical key override by outside when locked
- Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
- Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
- Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
- Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
- Electrified Warranty: The electrified mortise lock is covered by the factory's two-year electrified warranty (catalog p.46), distinct from the ten-year mechanical term.
- EcoFlex Low-Power Operation: Up to 92% less energy than a conventional electrified lock, GreenCircle certified, which cuts power-supply count and operating cost across a building.
- 12-24VDC Operation: One lock body covers both common access-control voltages, with 15mA continuous draw so longer cable runs and shared supplies work without voltage-drop trouble.
- Field Configurable Fail Safe / Fail Secure: A dip switch on the lock case sets the mode before installation, so one body serves either application once the code authority has ruled which is required.
- ElectroLynx Connectors: Plug-together wiring from the electrified hinge to the lock, no field splicing at the door.
Technical Specifications & Compliance
| Model Number | HACN 8899FL (Fail Secure Electrified Mortise Lockset, Single Cylinder with Deadbolt, Both Levers Locked) |
| Lever Design | Hampton (HACN) |
| Certifications | ANSI/BHMA Grade 1 / UL & cUL 3-Hour Fire Rated. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| Security Grade | ANSI/BHMA A156.13 Security Grade 1 (8800FL with CN escutcheon, catalog p.25) |
| Electrified function | Fail Secure (factory set) -- Single Cylinder with Deadbolt, Both Levers Locked |
| Operating voltage | 12-24VDC (operating voltage not to exceed +/- 10%). |
| Current draw | 15mA @ 12V or 24V continuous; 500mA @ 12V or 24V peak (max 2 locks per 1A power supply). |
| Monitoring options | LBM, REX, DBM (SPDT switches, optional -- select above) |
| Monitor switch rating | 2A max to 30VDC (SPDT monitor switches). |
| Operating temperature | -13F (-25C) to 151F (66C). |
| Energy | EcoFlex -- reduces energy consumption up to 92% as certified by GreenCircle. |
| Fail mode configuration | Field configurable fail safe / fail secure by dip switch on the lock body (accessible prior to installation only; power cycle after changing). |
| Connector | ElectroLynx connectors standard. |
| Fire rating | UL / cUL Listed for use on fire doors. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 605, 606, 619, 625, 626 (5 finishes -- select above) |
| Backset | 2-3/4" Only. |
| Armor front | 8" x 1-1/4". |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction. |
| Deadbolt | 1" Throw |
| Hubs | 3/8" Solid Steel (Heat Treated). |
| Door thickness | 1-3/4" Standard. |
| Strike | 4-7/8" ASA Strike Standard. Supplied as the 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. |
| Handing | Field Reversible (Furnished RH). |
| Case material | Wrought Steel, Zinc Dichromate Plated. |
| Cylinder | Standard 1-1/8" Mortise Cylinder (such as the 2153) with a 1/4" trim ring, and a 2160 cam outside. |
| Keying | Level One KA or KD; Level Two MK; Level Three GM; Level Four GGM. |
| Lever Handle | Cast. |
| Warranty | 2-Year Warranty (electrified mortise locks). |
| Finish with BHMA code | 626 - US26D Satin Chrome or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome |
| Accentra Electrified Lock Options | LBM - Latchbolt Monitoring (SPDT Switch) or DBM - Deadbolt Monitoring (SPDT Switch) or REX - Request to Exit (SPDT Switch) |
| Accentra Keyways (formerly Yale) | E1R (Para) Keyway or B-SFIC or LC - Less Cylinder |
| Brand | Accentra (formally Yale Security) |
| Trim Design | HACN |
| Series | Accentra - 8800 Series |
| Fail Safe/Fail Secure | Fail Secure |
| Voltage | 12 VDC, 24 VDC, 12/24 VDC |
