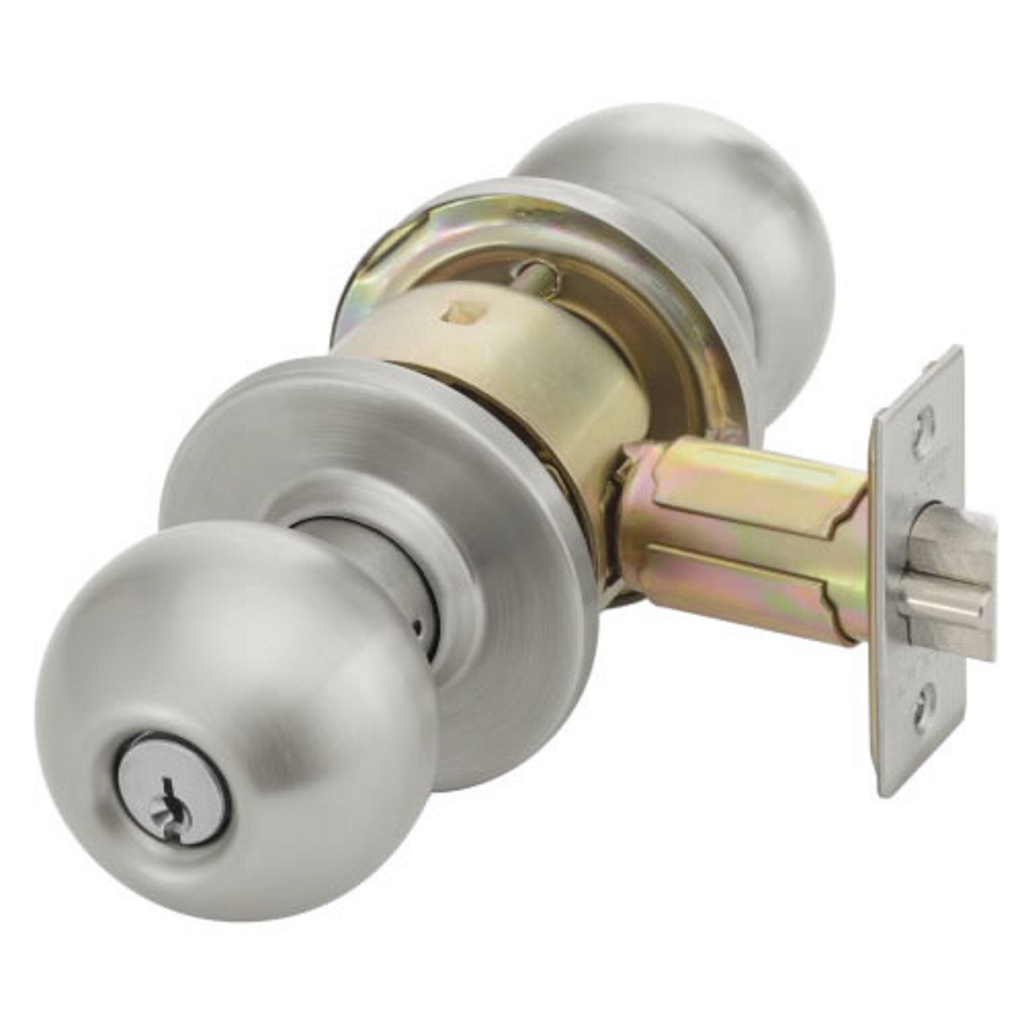

Accentra CA 4605YC Grade 2 Storeroom Knob Lockset
Function Information:
- For use on storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by lever inside, key in outside lever.
- Outside lever always rigid.
- Inside lever always active.
- ANSI F86
The Accentra CA 4605YC Storeroom Knob Lockset (formerly Yale) is a high-security, standard-duty cylindrical lock engineered for areas requiring constant restricted access. This ANSI/BHMA Grade 2 certified lockset is the industry standard for storerooms, mechanical closets, and utility rooms where the exterior must remain locked at all times. Built by ASSA ABLOY Accentra, it combines robust mechanical engineering with a budget-friendly price point for commercial and institutional projects.
Featuring the classic California (CA) ball knob, this lockset is designed for maximum security. The F86 Storeroom Function ensures that the outside knob is always rigid and can only be operated by a key, while the inside knob is always active to allow for immediate, single-motion egress. With a UL/cUL 3-hour fire rating, it provides essential life safety protection for any commercial facility.
High-Security Commercial Features
- Storeroom Function (ANSI F86): The outside knob remains fixed and rigid. Access is granted only via key, ensuring the door is always locked from the outside even if it is closed behind you.
- Deadlocking Latchbolt: Features a guarded deadlatch that prevents "shimming" or "loiding" attacks, providing a higher level of security than standard passage or privacy latches.
- Grade 2 Performance: Certified to ANSI/BHMA A156.2 Series 4000 standards, providing reliable operation and long-lasting durability in medium-traffic environments.
- Flexible Cylinder Options: Compatible with 6-pin conventional cores or Small Format Interchangeable Cores (SFIC), allowing for easy integration into existing master key systems.
- Heavy-Duty ANSI Strike: Includes a 4-7/8" x 1-1/4" ASA strike (ANSI A115.2), which is the standard for commercial steel frames.
- Fire Safety Compliance: Fully UL-cUL listed for 3-hour fire doors and NFPA 80 compliant, ensuring your building stays up to code.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | CA 4605YC |
| Function | Storeroom / Closet (ANSI F86) |
| Certification | ANSI/BHMA Grade 2 |
| Backset | 2-3/4" (70mm) Standard |
| Strike | 4-7/8" x 1-1/4" ASA Strike (ANSI Curved Lip) |
| Door Thickness | Adjustable 1-3/8" to 1-3/4" |
| Cylinder Type | 6-Pin Conventional (Schlage C or Para) |
| Latchbolt Throw | 1/2" (13mm) Deadlocking |
| Handing | Non-Handed (Field Reversible) |
| Fire Rating | UL-cUL Listed (Up to 3 Hours) |
| Warranty | 3-Year Limited Mechanical Warranty |
Professional Application & Hardware Integration
The Accentra CA 4605YC is a vital component for maintaining secure perimeters within schools, offices, and retail spaces. Its non-handed design allows for seamless installation on any door regardless of swing. To maintain a consistent architectural theme across your facility, this storeroom lock matches the Accentra CA 4601YC Passage Knob and the Accentra CA 4607YC Entrance Knob.
This model is available at DoorwaysPlus.com in several professional finishes, including Satin Stainless Steel (630) and Satin Chrome (626). For doors with a shorter frame preparation, an optional 2-3/8" backset latch is also available to suit your specific project needs.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 629 - US32 Polish Stainless |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | CA - Carolina Knob |
| Series | Accentra - 4600 Series |
