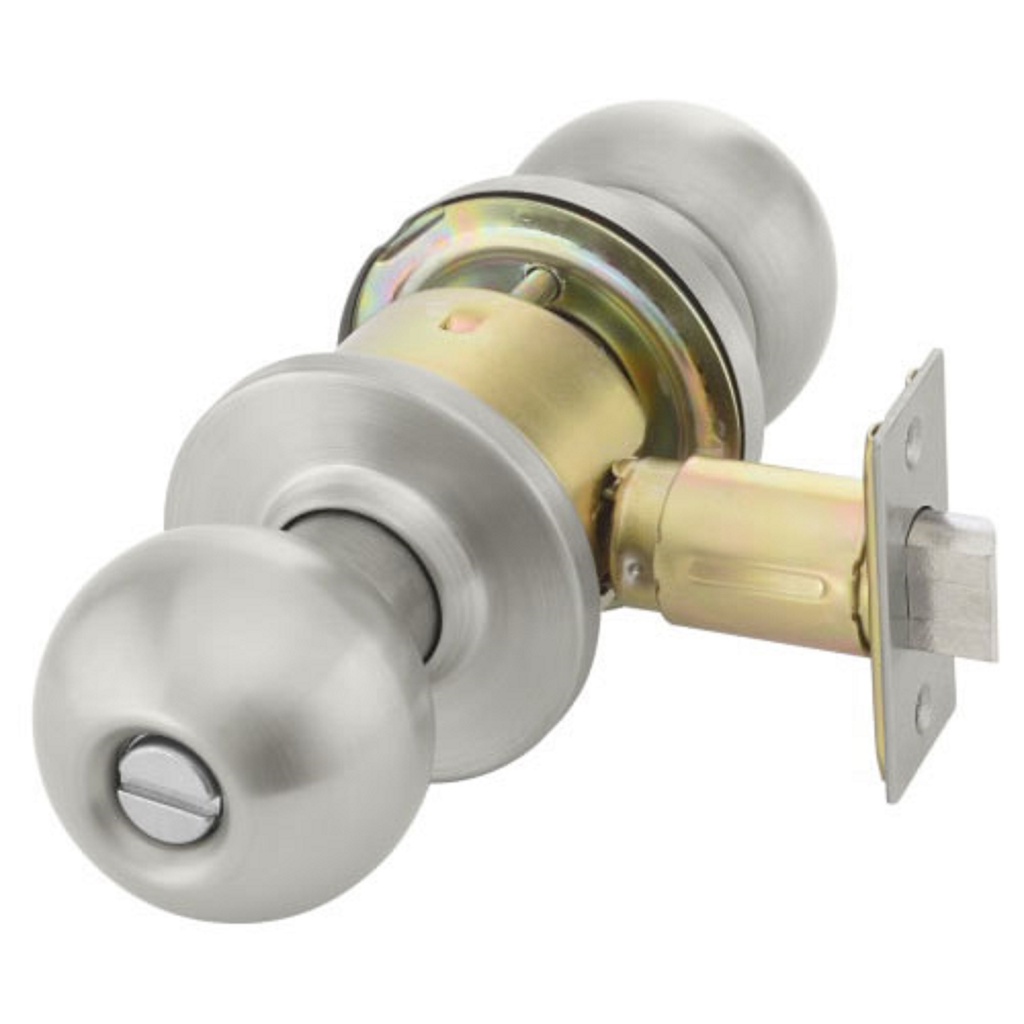

Accentra CA 4602YC Grade 2 Privacy Knob Latchset
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
- Button automatically releases when inside lever is turned or door is closed.
- Emergency release in outside lever.
- Inside lever always active.
- ANSI F76B
The Accentra CA 4602YC Privacy Knob Latchset (formerly Yale) is a high-quality, standard-duty commercial lockset designed specifically for restrooms, changing rooms, and private offices. As part of the Accentra 4600YC Series, this Grade 2 cylindrical lock provides a durable and cost-effective solution for facilities that require reliable privacy functions without the need for a keyed cylinder.
Featuring the traditional California (CA) ball knob design, this latchset is constructed from stainless steel or wrought brass to withstand constant use in commercial environments. The 4602YC is UL/cUL fire-rated for up to 3 hours, ensuring your facility meets strict safety and building codes while providing a clean, professional aesthetic.
Commercial Privacy & Safety Features
- Privacy Function (ANSI F76B): Ideal for lavatories; the outside knob is locked by a push-button on the inside. The lock automatically releases when the inside knob is turned or the door is closed.
- Emergency Access: Includes an emergency release on the outside knob, allowing staff to gain entry using a simple tool if the room is occupied and an emergency occurs.
- Grade 2 Certified Strength: Certified to ANSI/BHMA A156.2, Series 4000 Grade 2 standards, ensuring long-term mechanical reliability in medium-traffic applications.
- Life Safety Compliance: The inside knob is always active, ensuring a single-motion egress at all times for occupant safety.
- Standard ASA Strike: Shipped with a heavy-duty 4-7/8" x 1-1/4" ANSI strike with a curved lip for secure latching and smooth operation.
- Non-Handed Design: The hardware is fully reversible, making it easy to install on both right-hand and left-hand doors.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | CA 4602YC |
| Function | Privacy / Lavatory (ANSI F76B) |
| Certification | ANSI/BHMA Grade 2 |
| Backset | 2-3/4" (70mm) Standard |
| Strike Type | 4-7/8" x 1-1/4" ASA Strike (Curved Lip) |
| Door Thickness | Adjustable 1-3/8" to 1-3/4" |
| Latchbolt Throw | 1/2" (13mm) |
| Fire Rating | UL-cUL Listed (Up to 3 Hours) |

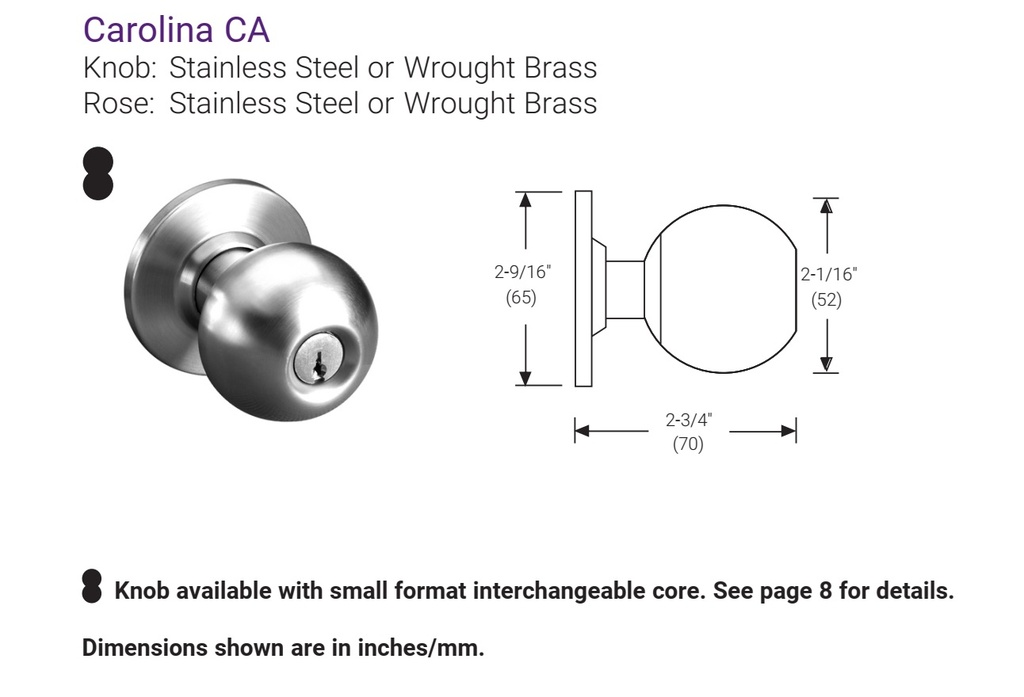

| Knob Style | California (CA) Ball Knob |
| Warranty | 3-Year Limited Mechanical Warranty |
Professional Installation & Compatibility
The Accentra CA 4602YC is designed for quick and easy installation in standard commercial door preparations. Its robust internal mechanism ensures it maintains its finish and functionality even in high-moisture environments like public restrooms. To maintain a uniform architectural look throughout your facility, you can pair this privacy set with the Accentra CA 4601YC Passage Knob for non-locking doors.
This model is available in various professional finishes, including Satin Chrome (626) and Satin Stainless Steel (630). For facilities requiring a shorter backset, an optional 2-3/8" latch can be ordered to fit your specific door requirements at DoorwaysPlus.com.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 629 - US32 Polish Stainless |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | CA - Carolina Knob |
| Series | Accentra - 4600 Series |
| Occupancy Indicator | No |
