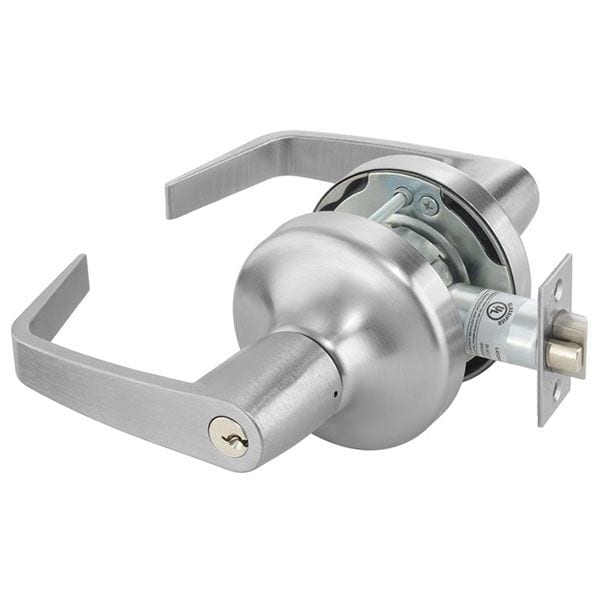

Accentra AU 4707LN Grade 1 Office Entry Function Cylindrical Lock
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).*
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- *Lever Handles are Free Wheeling in Locked Position
- ANSI F109
The Accentra AU 4707LN Office Entry Lockset (formerly Yale) is a premium, high-intent security solution designed for executive offices, entrance doors, and commercial spaces requiring elite access control. As a flagship model in the Series 4700LN Grade 1 lineup, this cylindrical lockset is engineered to withstand the most rigorous high-traffic environments while providing flexible locking modes tailored to professional needs.
Featuring the sophisticated and ergonomic AU (Augusta) lever design, this lockset includes the advanced Free Wheeling lever mechanism. When the exterior is locked, the lever rotates freely, neutralizing the risk of internal damage from vandalism or excessive force—a critical feature for maintaining facility integrity over time.
Elite Security & Versatile Performance
- Office Entry Function (ANSI F109): Offers two locking methods via the inside turn-button. Pushing the button locks the outside lever until released by a key or the inside lever. For constant security, pushing and rotating the button 90° "dogs" the lock in a permanent locked state until manually released.
- Grade 1 Industrial Strength: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, providing the highest level of cycle life and structural durability available in the commercial market.
- Vandal-Resistant Free Wheeling: The exterior handle moves freely when the lock is engaged, protecting the internal chassis from forced entry and mechanical fatigue.
- Deadlocking Security: Equipped with a 1/2" throw deadlocking latchbolt to resist "shimming" and unauthorized manipulation.
- Life Safety & Compliance: UL-cUL listed for all fire doors up to 3 hours and fully compliant with ADA A117.1 Accessibility Codes for effortless, barrier-free use.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4707LN |
| Function | Office / Entrance (ANSI F109) |

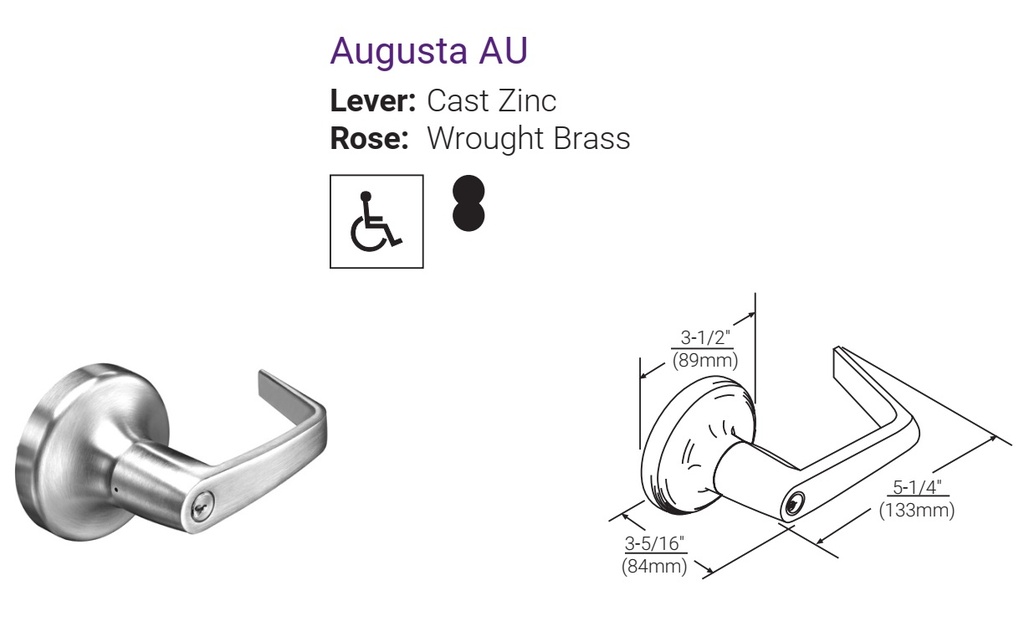

| Lever Style | Augusta (AU) |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4700 Series |
