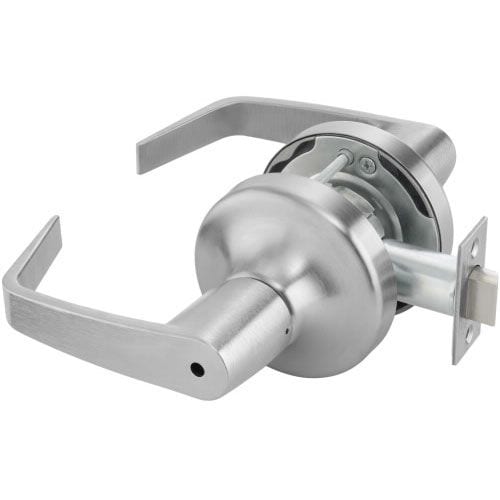

Accentra AU 4702LN Grade 1 Privacy Function Cylindrical Lever
Function Information:
- For lavatory or other privacy doors.
- Either lever operates latchbolt unless outside lever is locked by pushbutton inside.*
- Button automatically releases when inside lever is turned or door is closed.
- Emergency key inserted and turned in hole in outside lever will unlock door from outside. (Emergency key furnished with lockset.)
- Inside lever always active.
- * Lever Handles are Free Wheeling in Locked Position
- ANSI F76A
The Accentra AU 4702LN Privacy Function Lever (formerly Yale) is a premium, high-intent hardware solution designed for high-traffic commercial restrooms, changing areas, and private suites. As a Series 4700LN Grade 1 cylindrical lockset, it represents the highest level of durability and security in the industry. This heavy-duty latchset is specifically engineered to withstand the rigorous demands of hospitals, schools, and high-occupancy public buildings where privacy and safety are paramount.
Featuring the elegant and ergonomic AU (Augusta) lever design, this unit incorporates Free Wheeling technology. In the locked position, the outside lever rotates freely, significantly reducing the potential for damage caused by vandalism or excessive force.
Advanced Privacy & Safety Features
- Privacy Locking (ANSI F76A): The outside lever is locked by a pushbutton on the interior. The lock automatically releases when the inside lever is turned or the door is closed, preventing accidental lockouts.
- Emergency Access: Includes an exterior emergency release. An emergency key (furnished with the lockset) can be inserted into the outside lever to unlock the door in urgent situations.
- Free Wheeling Lever: All locking functions in the 4700LN Series feature a lever that rotates freely when locked, protecting the internal mechanism from forced entry or wear.
- Grade 1 Industrial Strength: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, ensuring the longest cycle life and structural integrity available.
- Fire-Rated Security: UL-cUL listed for fire doors up to 3 hours, meeting strict life safety and building codes.
- ADA & Accessibility: Complies with ADA A117.1 Accessibility Codes, providing easy, barrier-free operation for all users.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4702LN |
| Function | Privacy / Lavatory (ANSI F76A) |
| Series | 4700LN Series |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F76 - Privacy |

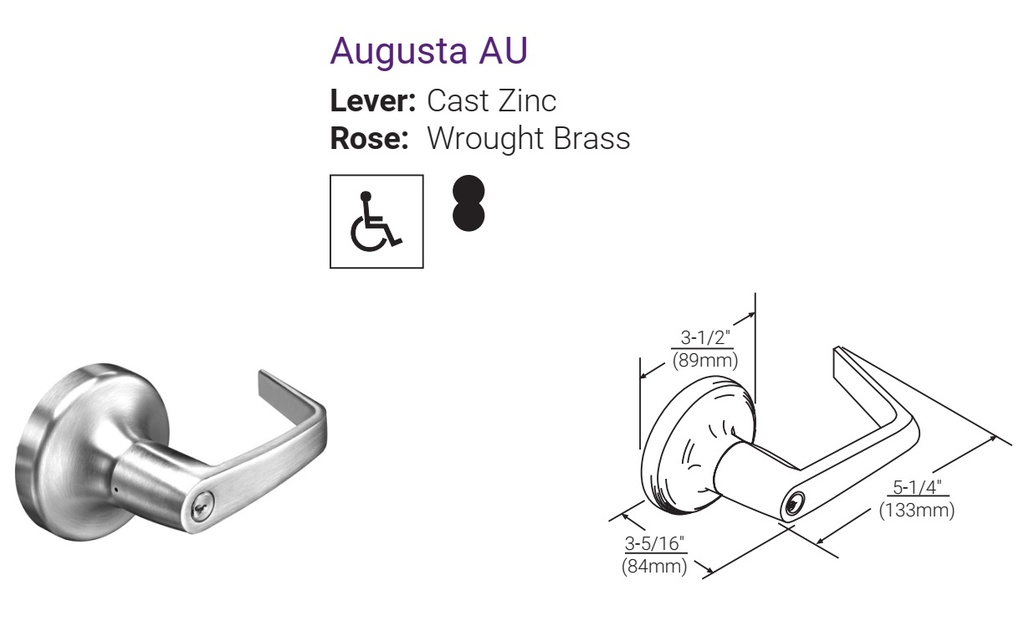

| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4700 Series |
| Occupancy Indicator | No |
