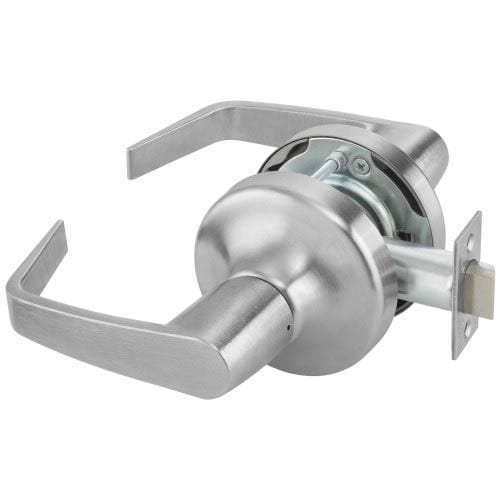

Accentra AU 4701LN Grade 1 Passage Function Cylindrical Lever
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75
The Accentra AU 4701LN Passage Function Lever (formerly Yale) is the ultimate high-intent solution for heavy-duty commercial openings that demand maximum durability without the need for locking. As a Series 4000 Grade 1 cylindrical latchset, this hardware is engineered for the most rigorous high-traffic environments, including schools, hospitals, and busy corporate corridors where interior doors must remain accessible at all times.
Featuring the elegant and ergonomic AU (Augusta) lever design, the Accentra 4700LN Series is built to outperform standard hardware. It includes robust rose support plates for a stable fit and is designed to endure millions of cycles, making it a "fit and forget" solution for facility managers who prioritize long-term reliability and safety.
Premium Performance & Durability
- Heavy-Duty Grade 1 Certified: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, providing the highest level of structural integrity and wear resistance.
- Fire-Rated Security: UL-cUL listed for all fire doors with a rating up to 3 hours, ensuring critical life safety compliance.
- Extended Service Life: Backed by an industry-leading 7 Year Limited Warranty, reflecting its superior construction and engineering.
- ADA & Accessibility: Fully compliant with ADA A117.1 Accessibility Codes, offering easy, barrier-free operation for all users.
- Passage Function (ANSI F75): Ideal for non-locking doors; either lever retracts the latchbolt at all times for seamless movement.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4701LN |
| Function | Passage (ANSI F75) |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed (Field Reversible) |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |

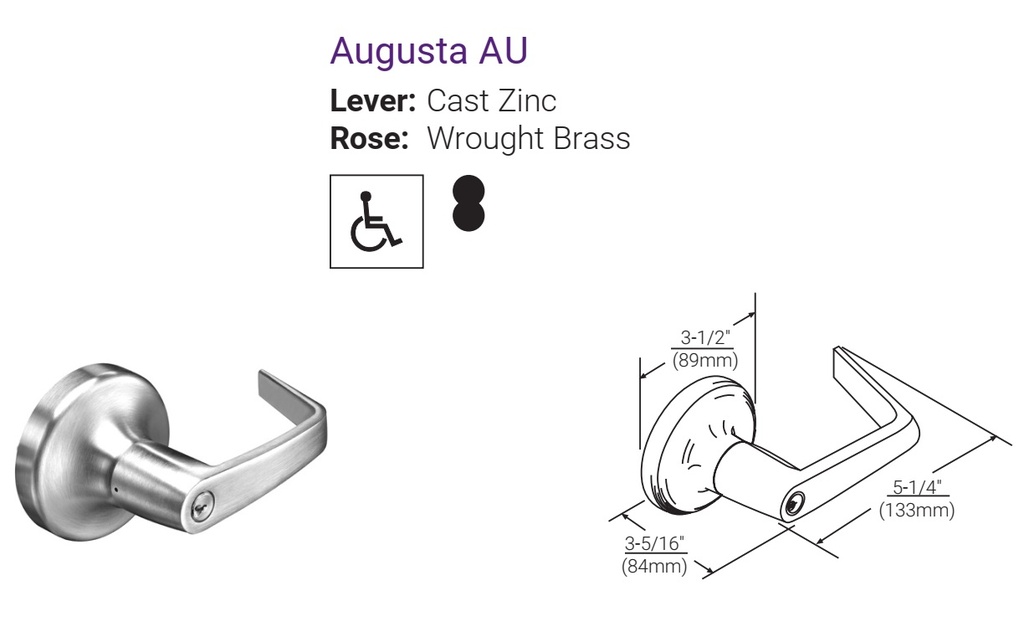

| Trim Design | AU - Augusta Lever |
| Series | Accentra - 4700 Series |
