Accentra ARR 8862FL Privacy, Bedroom Or Bath Lock Mortise Latchset – Grade 1 Durability
Function Info: Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn. Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever. Outside emergency release unlocks outside knob/lever. E203 emergency key supplied. Automatically unlocks when door latches.

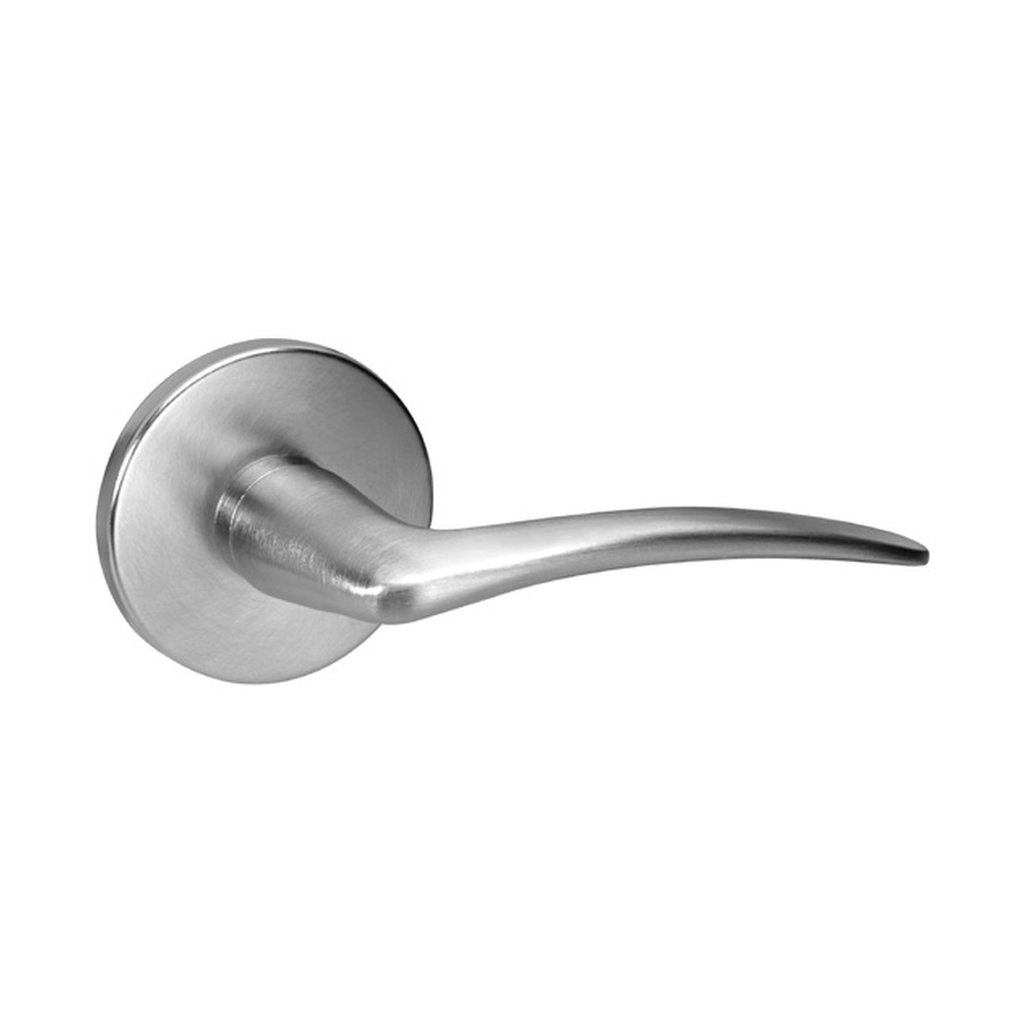

The Accentra ARR 8862FL (formerly Yale 8800 Series) is a heavy-duty Privacy, Bedroom Or Bath Lock Function mortise latchset built for commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Grade 1 -- the highest operational and security grade the standard defines -- and carries the Arcadia (ARR) lever on the standard rose.
Built for openings that are opened and closed thousands of times a year, it uses a wrought steel, zinc dichromate plated case, 3/8" solid steel (heat treated) hubs and a 3/4" throw stainless steel anti-friction latchbolt. Available in fourteen architectural finishes, it is field reversible and ships with the door prep and installation drawings for the trim shown.

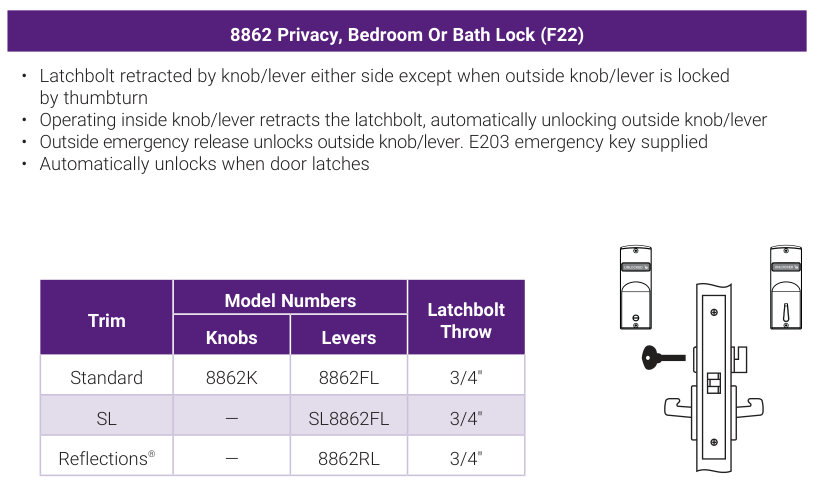

Function Details: Privacy, Bedroom Or Bath Lock (ANSI/BHMA F22)
- Inside Thumbturn: Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn — the outside lever can be locked from the inside by hand, without needing a key in it.
- Free Egress -- and the Outside Trim Unlocks With It: Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever — the inside lever is never locked, so a single motion always gets a person out -- and on this function that same motion also unlocks the outside trim, so the opening does not re-secure itself behind whoever left.
- Emergency Release Outside: Outside emergency release unlocks outside knob/lever. E203 emergency key supplied — staff can free the outside lever with the supplied emergency key without disturbing how the occupant has set the lock.
- Closing the Door Releases the Privacy Lock: Automatically unlocks when door latches — shutting the door unlocks the outside lever again, so the privacy setting is made from the inside with the door already closed.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- 3-Hour Fire Rating: UL and cUL listed for use on fire-rated door assemblies, so the opening stays code compliant.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
- Field Reversible: Furnished right hand and re-handed in the field, so one lock suits either door swing without a return.
- Anti-Friction Latchbolt: A stainless steel one-piece latch that closes quietly and resists the drag that wears a latch out on a high-traffic door.
- Heavy-Duty Hubs: Heat-treated solid steel through the point that takes every turn of the lever, which is where a lighter lock fails first.
- Mechanical Warranty: Backed for the long term against defects in the mechanical lock.
Technical Specifications & Compliance
| Model Number | ARR 8862FL (Privacy, Bedroom Or Bath Lock) |
| Lever Design | Arcadia (ARR) |
| Certifications | ANSI/BHMA Grade 1 / UL & cUL 3-Hour Fire Rated. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| Fire rating | UL / cUL Listed for use on fire doors. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 626, 605, 606, 611, 612, 613E, 618, 619, 625, 629, 630, 693, BSP, WSP (14 finishes -- select above) |
| Backset | 2-3/4" Only. |
| Armor front | 8" x 1-1/4". |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction. |
| Hubs | 3/8" Solid Steel (Heat Treated). |
| Door thickness | 1-3/4" Standard. |
| Strike | 4-7/8" ASA Strike Standard. Supplied as the 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. |
| Handing | Field Reversible (Furnished RH). |
| Case material | Wrought Steel, Zinc Dichromate Plated. |
| Lever Handle | Cast. |
| Warranty | 10-Year Mechanical Warranty. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or 693 - Painted, Black or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | ARR |
| Series | Accentra - 8800 Series |
