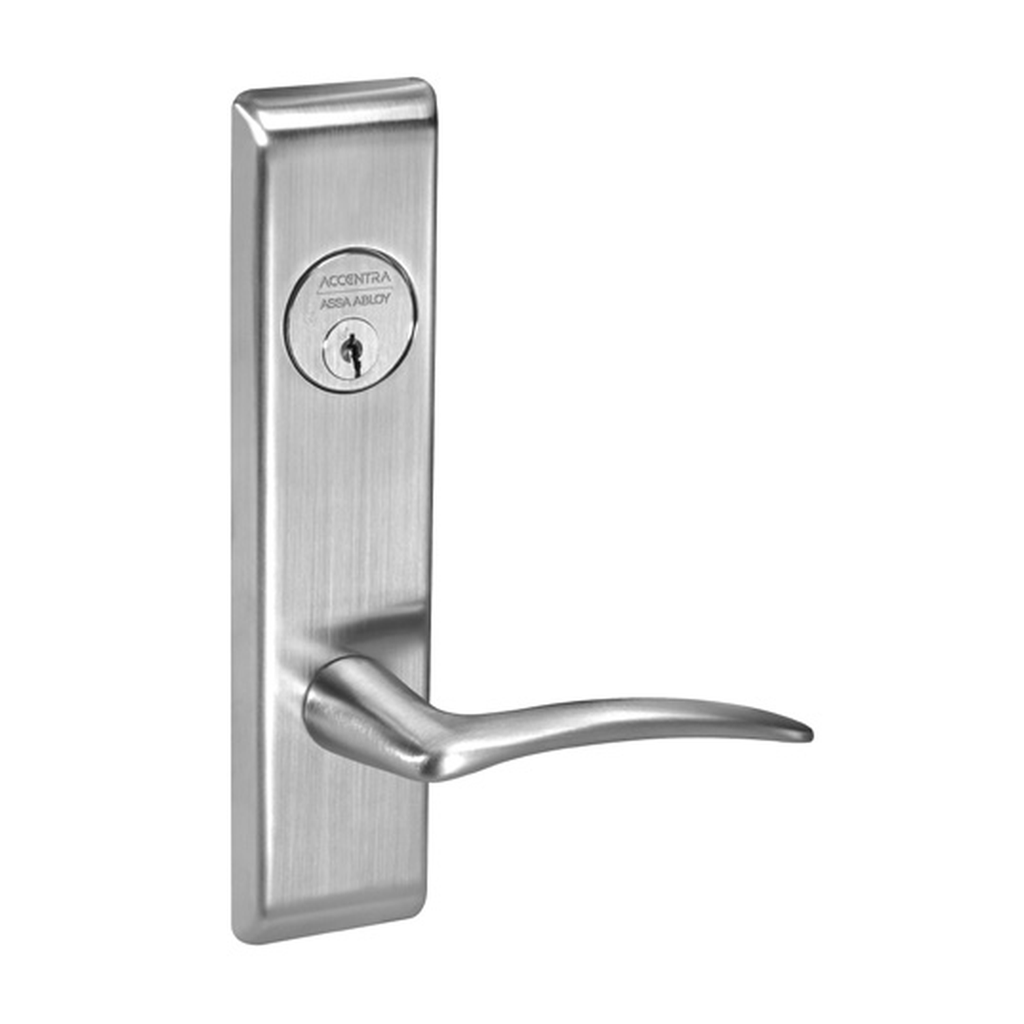

Accentra ARCN 855FL Dummy Trim One Side – Grade 1 Durability
Function Info: Push or pull only. Knob/lever one side. Knob/lever non-operational and rigid at all times. Function only available with CO, R3, R4, R5 roses or CN escutcheon.
The Accentra ARCN 855FL (formerly Yale 8800 Series) is a heavy-duty Dummy Trim One Side Function mortise dummy trim built for commercial and institutional openings. It is certified to ANSI/BHMA A156.13 Series 1000, Grade 1 -- the highest operational and security grade the standard defines -- and carries the Arcadia (ARCN) lever on the Camden escutcheon.
Available in fourteen architectural finishes, it ships with the door prep and installation drawings for the trim shown.
FIRE-RATED DOOR LIMITATION
This product is manufactured to UL standards, but it has no latchbolt and cannot self-latch, so it may not serve as the primary latching device on a fire-rated opening. Dummy trim may be applied to the inactive leaf of a pair of fire-rated doors, where the active leaf carries the latching device. Confirm the assembly listing and consult the authority having jurisdiction.

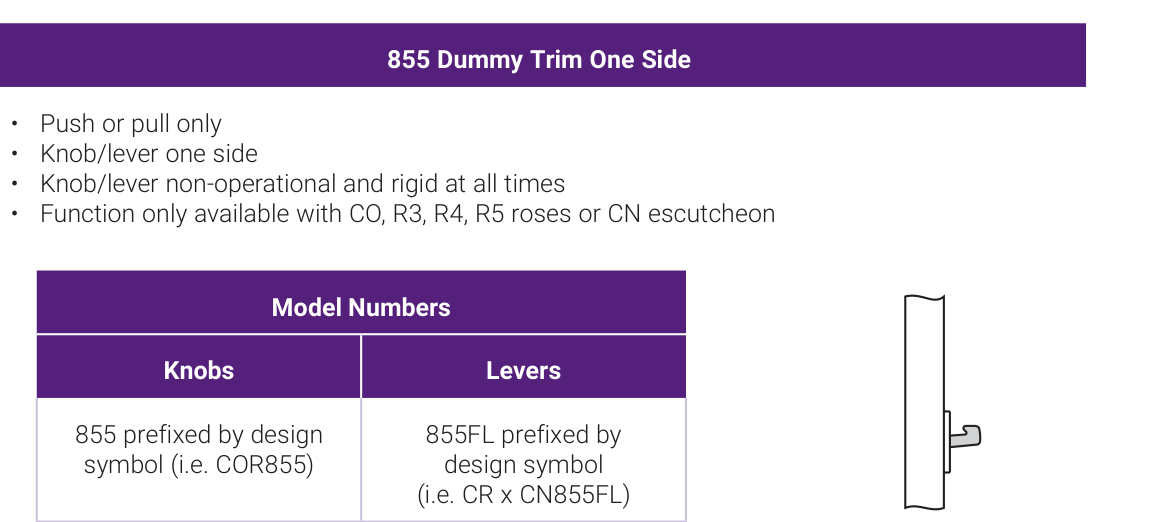

Function Details: Dummy Trim One Side
- A Pull, Not a Lock: Push or pull only — there is no lock mechanism of any kind here -- the trim mounts to the door and serves as a handle.
- Trim on One Face Only: Knob/lever one side — the door carries trim on a single face and none on the other, so which face is trimmed has to be stated when the order is placed.
- The Lever Does Not Turn: Knob/lever non-operational and rigid at all times — this lever is rigid -- a fixed handle for pushing and pulling the door; it does not rotate and it operates nothing.
- Offered on a Limited Trim Set: Function only available with CO, R3, R4, R5 roses or CN escutcheon — only those carriers are built with this function, so the trim is chosen from that list rather than from the full range.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested to the highest operational and security grade the standard defines, for long service life in demanding commercial and institutional openings.
- Accessible Operation: The lever is operable without tight grasping, pinching or wrist twisting, which is what ADA 404.2.7 requires of an accessible opening.
Technical Specifications & Compliance
| Model Number | ARCN 855FL (Dummy Trim One Side) |
| Lever Design | Arcadia (ARCN) |
| Certifications | ANSI/BHMA Grade 1. |
| Grade | ANSI/BHMA A156.13 Series 1000 Grade 1. |
| ADA | Complies with ADA requirements for accessible operation. |
| Finish | 626, 605, 606, 611, 612, 613E, 618, 619, 625, 629, 630, 693, BSP, WSP (14 finishes -- select above) |
| Lever Handle | Cast. |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or 693 - Painted, Black or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel |
| Brand | Accentra (formally Yale Security) |
| Trim Design | ARCN |
| Series | Accentra - 8800 Series |
