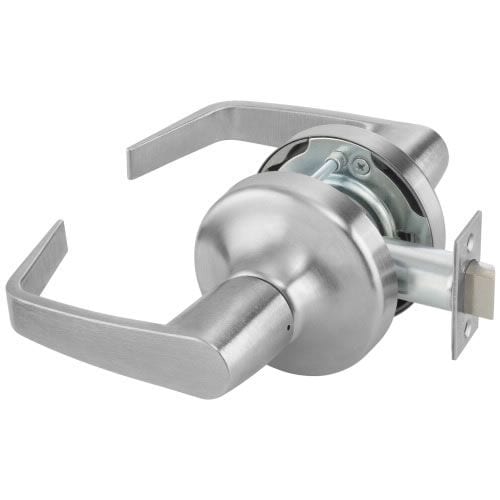

Accentra 5301LN Grade 2 Cylindrical Passage Latchset — Augusta (AU) Lever, 626 Satin Chrome
The Accentra 5301LN is a Grade 2 cylindrical passage latchset from the Accentra 5300LN Series (formerly Yale Security). It features the Augusta (AU) lever in 626 (US26D) Satin Chrome finish and is built to the ANSI/BHMA A156.2 Grade 2 standard for commercial-grade bored lockset applications. This model carries the ANSI F75 Passage function, making it ideal for interior doors where free passage is required from both sides at all times — no key or credential needed.
ANSI F75 Passage Function — What It Means
An ANSI F75 Passage latchset operates freely from both sides without the use of a key. The latchbolt retracts when either lever is turned. There is no locking mechanism. This function is specified for interior corridors, common-area doors, and other openings where unrestricted two-way traffic is required.
Key Features & Benefits
- ANSI/BHMA A156.2 Grade 2 Certified: Meets commercial durability requirements for moderate-traffic interior openings — suitable for offices, schools, healthcare facilities, and institutional environments.
- Augusta (AU) Lever Design: A clean, arc-shaped lever profile that complements a wide range of architectural hardware schedules without drawing attention away from the overall design.
- 626 Satin Chrome Finish (US26D): A durable, corrosion-resistant satin chrome that coordinates with the majority of commercial finish schedules and maintains a professional appearance over time.
- 5300LN Cylindrical Chassis: The LN (lever, non-keyed passage) configuration uses a proven cylindrical chassis compatible with standard ANSI A115.2 door prep — both hollow metal and wood door applications per manufacturer templates (AADSS1090368 / AADSS1090369 / AADSS1090373).
- Standard 2-3/4" Backset: Ships configured for the most common commercial backset; optional backsets also available per the 5300LN series template.
- Accentra / ASSA ABLOY Lineage: Manufactured under the Accentra brand (formerly Yale Security), backed by ASSA ABLOY engineering, documentation, and parts support.
Typical Applications
- Interior office doors and conference rooms
- School and university corridor doors (non-locking)
- Healthcare common areas and staff passages
- Hospitality and retail interior openings
- Any commercial opening where ANSI F75 passage function is specified
Technical Details
| Feature | Details |
|---|---|
| Model Number | 5301LN (AU lever, 626 finish) |
| Brand | Accentra (formerly Yale Security) |
| Series | 5300LN Cylindrical Lever Series |
| ANSI Function | F75 — Passage (free egress and ingress, both sides) |
| ANSI/BHMA Grade | Grade 2 (ANSI/BHMA A156.2) |
| Lever Design | AU — Augusta |
| Finish | 626 / US26D — Satin Chrome |
| Backset | 2-3/4 in. (standard); optional backsets per series template |
| Lock Type | Cylindrical (bored) latchset |
| Door Compatibility | Hollow metal and wood doors; standard ANSI A115.2 prep |
| Door Thickness | 1-3/8 in. to 1-3/4 in. standard; 1-3/4 in. to 2-1/4 in. special |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 5300 Series |
