Accentra PB 4607LN Grade 2 Office Entry Function Cylindrical Lock
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- ANSI F109

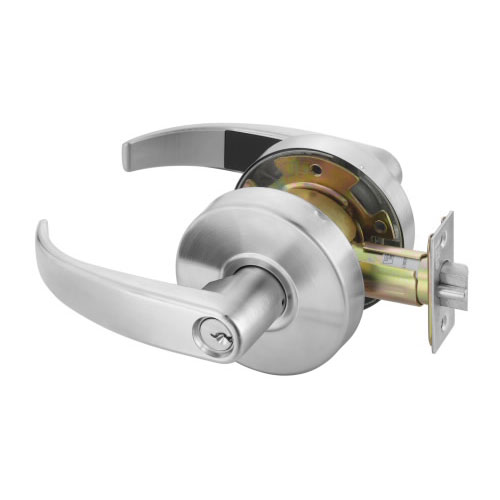

The Accentra PB 4607LN Office Entry Lockset (formerly Yale) is a high-intent security solution engineered for versatile access control in professional environments. As a cornerstone of the Series 4000 Grade 2 Standard Duty line, this cylindrical lockset is the ideal choice for entrance doors, private offices, and residential-to-commercial transitions where both robust security and operational flexibility are required.
Featuring the ergonomic and timeless PB (Pacific Beach) lever design, this hardware provides a comfortable grip and a classic aesthetic that fits any modern interior. The Accentra 4607LN allows for sophisticated locking options through an internal turn-button, ensuring authorized entry via key while maintaining a constant path for egress from the interior.
Advanced Security & Performance Features
- Office Entry Function (ANSI F109): Provides dual-mode locking. Push the inside turn-button to lock the outside lever (automatically releases when the inside lever is turned), or push and rotate the button 90° to keep the outside lever in a permanent locked state.
- Deadlocking Latchbolt: Designed with a 1/2" throw deadlocking latch to prevent "shimming" and other common forced-entry techniques.
- Certified Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2, guaranteeing reliable performance in medium-duty applications.
- Fire-Rated Safety: UL-cUL listed for all fire doors with ratings up to and including 3 hours, providing critical protection for commercial building occupants.
- ADA Compliant: Fully meets ADA A117.1 Accessibility Codes, ensuring easy operation for all users.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4607LN |
| Function | Office / Entrance (ANSI F109) |
| Lever Style | Pacific Beach (PB) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Professional Installation & Versatility
The Accentra PB 4607LN is an economical yet heavy-duty solution backed by over 170 years of brand legacy. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the installer to ensure the perfect fit for specific door stability requirements and materials.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4600 Series |
