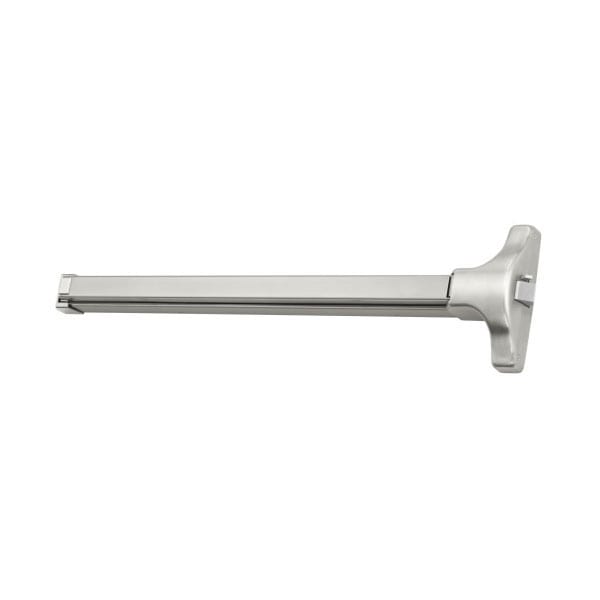

Accentra 2100F Grade 1 Fire-Rated Rim Exit Device | Exit Only
The Accentra 2100F Rim Exit Device (formerly Yale) is a high-intent, life-safety hardware solution engineered for the most demanding fire-labeled openings. As an ANSI/BHMA Grade 1 certified device, the 2100F Series is the premier choice for high-traffic institutional environments, including hospitals, schools, and government facilities. This fire-rated rim exit device provides a secure "Exit Only" configuration while ensuring 3-hour fire containment and immediate emergency egress for building occupants.
Designed for wide stile doors made of hollow metal, wood, or composite materials, the 2100F features a 3/4" stainless steel deadlocking pullman-type latchbolt. To ensure code compliance and structural integrity during a fire event, this device includes a specialized steel interlock bracket that maintains the critical door-to-mullion relationship.
Advanced Fire Safety & High-Security Features
- 3-Hour Fire Rating: UL/cUL Listed for fire exit hardware (GXHX) on 4' x 8' single doors and 8' x 8' pairs, providing maximum protection against fire spread and smoke infiltration.
- Grade 1 Heavy-Duty Durability: Rigorously tested to meet ANSI/BHMA A156.3 Type 1, Grade 1 standards, ensuring long-term reliability in the busiest commercial corridors.
- Steel Interlock Bracket: Shipped standard with fire-labeled devices to ensure the door stays securely latched against the strike or mullion under the extreme heat and pressure of a fire.
- Windstorm & Hurricane Rated: This device is ZHLA windstorm rated and available in certified hurricane-resistant configurations, making it a critical component for building envelope security in coastal regions.
- Non-Handed Architecture: The universal design allows for seamless installation on both left and right-hand doors, reducing installation time and ordering complexity.
- Deadlocking Pullman Latch: The high-strength stainless steel latchbolt provides a positive, secure connection to the strike, significantly increasing the force required for unauthorized entry.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 2100F (Exit Only) |
| Device Type | Fire-Rated Rim Exit Device |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Width Compatibility | 36" (3') or 48" (4') Doors |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Stainless Steel Pullman-Type |
| Projection | 2-1/2" Active / 1-3/4" Depressed |
| Strike | 757F Roller Strike (Included) |
| Fasteners | Thru Bolts (Sex Nuts & Bolts) Shipped Standard |
| Warranty | 3-Year Limited Warranty |
Professional Installation & Code Compliance
The Accentra 2100F is designed for a permanent, high-strength mount. To meet strict fire-life safety codes and ensure the hardware never loosens under constant use, this device is supplied standard with thru bolts for a secure "sandwich-style" attachment. While this model is an "Exit Only" configuration, it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 440F Series Rose Trim, allowing for keyed exterior access where required.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 2100 Series |
| Exit Device Fire Rating | Fire Rated Door |
