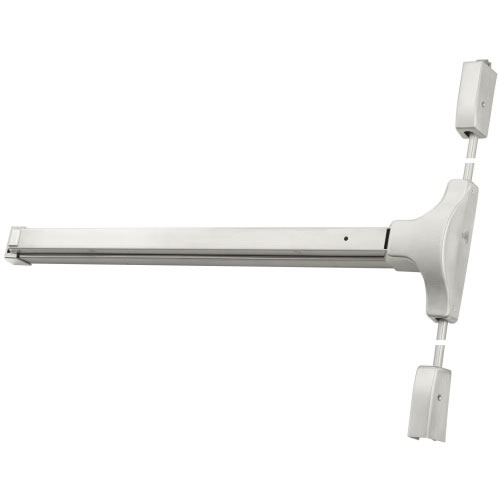

Accentra 2110 Grade 1 Surface Vertical Rod Exit Device | 84" Height | Exit Only
The Accentra 2110 Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-intent, heavy-duty life safety solution engineered for maximum security and emergency egress. As an ANSI/BHMA Grade 1 certified hardware component, the 2110 Series is specifically designed for high-traffic commercial openings, including pairs of doors and double egress applications in schools, hospitals, and government facilities. This surface vertical rod device provides two-point latching—securing the door at both the top header and the floor—to ensure superior protection against forced entry and structural deflection.
Constructed with heavily electroplated high-grade steel and non-ferrous internal mechanisms, the Accentra 2110 offers exceptional corrosion resistance and industrial-strength durability. Whether installed on metal, wood, or composite doors, this "Exit Only" device ensures occupants can evacuate safely while maintaining the building's perimeter integrity.
High-Security Latching & Industrial Features
- Two-Point Deadlocking: Features a 3/4" throw top Pullman-type latchbolt with automatic deadlatching and a 5/8" throw bottom deadbolt for total door stability.
- Grade 1 Certified Durability: Rigorously tested to meet ANSI/BHMA A156.3 Type 7 and 8, Grade 1 standards, guaranteeing reliable performance across millions of cycles.
- Windstorm & Hurricane Rated: This device is ZHLA windstorm rated, making it an essential choice for facilities in high-velocity hurricane zones or areas prone to severe weather.
- Field Reversible Handing: While the device is handed (please specify LHR or RHR), the design is field reversible to accommodate last-minute job site adjustments.
- Hex Key Dogging: Shipped standard with hex key dogging, allowing authorized personnel to keep the bolts retracted and the push bar depressed during high-traffic business hours.
- Bolt Retraction Technology: The bottom deadbolt is engineered to be held retracted during the door swing, preventing floor damage and ensuring smooth operation.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 2110 (Exit Only) |
| Device Type | Surface Vertical Rod (Panic Rated) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Width Compatibility | -36 (30"-36" Doors) or -48 (42"-48" Doors) |
| Standard Door Height | 84" (7'0") |
| Door Thickness | 1-3/4" (44mm) Standard |
| Minimum Stile Width | 4-1/2" (114mm) |
| Vertical Rods | 1/2" O.D. Tubular Brass, Bronze, or Stainless Steel |
| Finishes | 689 (Aluminum) or 630 (Satin Stainless Steel) |
| Warranty | 3-Year Limited Warranty |
Professional Installation & Structural Integrity
The Accentra 2110 is designed for a permanent, high-strength mount. To ensure the hardware remains secure and compliant with high-traffic safety standards, we recommend the use of thru bolts to achieve a secure "sandwich-style" attachment. This prevents the device from pulling through the door material over time. This "Exit Only" model is fully compatible with a wide range of Accentra Exit Device Trim, including the 620F Series Escutcheon or 440F Series Rose Trim, for applications requiring exterior keyed access.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 2100 Series |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Non Rated Door |
