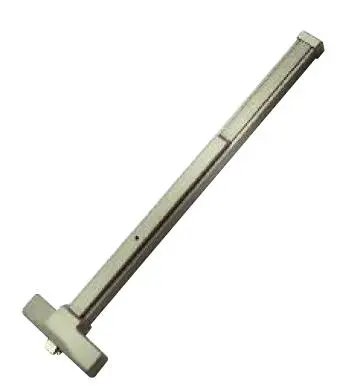

PDQ 4200 Series: Grade 1 Heavy-Duty Commercial Exit Devices
The PDQ 4200 Series is a high-performance, Grade 1 exit device designed to blend rugged durability with a refined, modern profile. Ideal for high-traffic office buildings, hospitality venues, and healthcare suites, the 4200 Series offers the security of a heavy-duty panic bar without the bulky footprint. Featuring a stainless steel latchbolt and a field-sizable aluminum rail, it provides a reliable, long-lasting life-safety solution for any wide-stile door application.
4200 Series Exit Devices
Engineered for ease of installation and maximum versatility, the PDQ 4200 Series is a contractor favorite for both new construction and retrofits. Certified to ANSI/BHMA A156.3 Grade 1 and UL Listed for 3-hour fire doors, this series is available in Rim, Surface Vertical Rod (SVR), and Concealed Vertical Rod (CVR) configurations. With a wide array of architectural finishes and electrified options like Motorized Latch Retraction (MLR), the 4200 Series is the ultimate "problem-solver" for modern facility managers.
Download the PDQ 4200 Series Catalog for a deep dive into architectural details, sizing charts, and finish options. This comprehensive guide covers all device types, including the 4200R Rim, 4200V SVR, and 4200C Concealed models. Whether you are matching existing hardware in 626 Satin Chrome or looking for the sleek 622 Flat Black finish, the catalog provides the technical specs you need to specify the right hardware for your project.
The PDQ 4200 Series Templates are essential for achieving a precision fit and ensuring the structural integrity of your Grade 1 installation. These dimensional drawings provide exact coordinates for door prep, ensuring that the chassis, strike plates, and outside trims align perfectly. Using factory-verified templates prevents costly door errors and guarantees that the device functions smoothly for its entire 15-year warranty period.
PDQ 4200R 4200 R RA RF RFA Template - Rim Device Template
PDQ 4200 V VA Non Rated SVR Exit Device Template
PDQ 4200 VF VFA Fire Rated SVR Exit Device Template
PDQ 4S08 4S09 4S14 Sectional Lever Trim Template
The PDQ 4200 Series Installation Instructions provide clear, step-by-step guidance for a professional mount. This manual covers critical adjustments, such as field-cutting the rail to fit custom door widths and fine-tuning the vertical rod timing on SVR models. Following these instructions ensures that your 4200 Series hardware meets all ADA requirements and maintains its UL 3-hour fire rating for life-safety compliance.
PDQ 4200R Series Non Rated Exit Device Installation Instructions
PDQ 4200RF Series Fire Rated Exit Device Installation Instructions
PDQ 4200 V VA Series Non Rated SVR Installation Instructions (Same as Template)
PDQ 4200 VF Series Fire-Rated SVR Installation Instructions (Same as Template)
Device Accessories
Customise and maintain your hardware with PDQ 4200 Series Accessories. This section features thru bolts (SNB) for secure mounting on various door types, Shim Kits for doors with glass beads, and specialized Strike Plates for unique frame conditions. You can also find replacement end caps and dogging keys to keep your PDQ hardware looking and functioning like new.

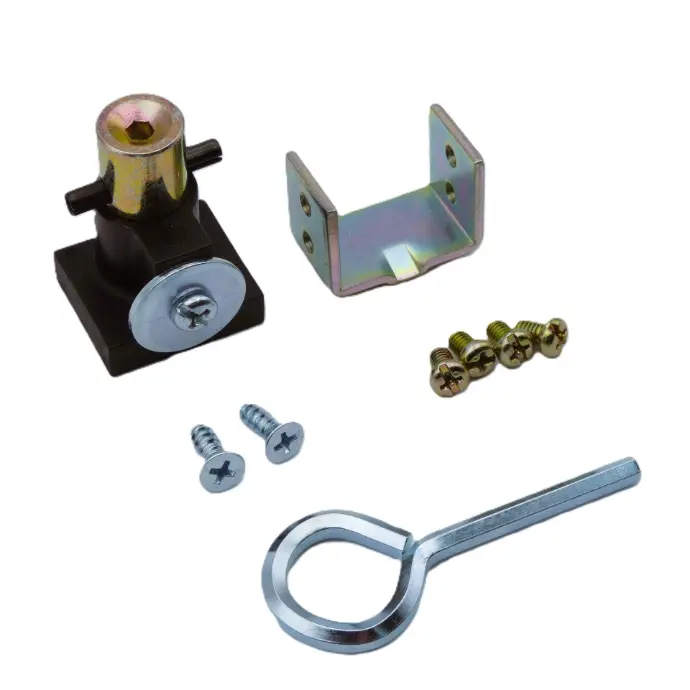

4200 Series Parts
Maintain the peak performance of your hardware with genuine PDQ 4200 Series Parts. This subsection features essential replacement components, including latchbolt assemblies, chassis springs, and replacement end caps designed to fit the 4200's unique profile. Using factory-authorized parts is the only way to ensure your device remains Grade 1 compliant and preserves its 15-year mechanical warranty.

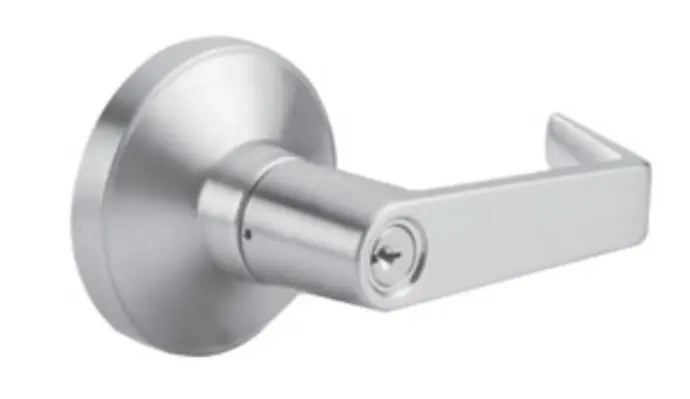

4200 Series Exit Trims
Our selection of PDQ 4200 Series Exit Trims offers a variety of entry functions to meet your facility’s security needs. Choose from high-performance Escutcheon or Rose trims available in Classroom (08), Night Latch (03), and Passage (14) functions. All trims are designed to withstand heavy-duty use and are available in matching finishes to complement your 4200 Series exit device perfectly.
