Hager 4700 Series: Grade 1 Standard-Duty Exit Devices
Designed for ease of installation and long-term durability, the Hager 4700 Series meets all major Life Safety and fire-safety requirements. It is available in Rim (4701R) and Surface Vertical Rod (4701SVR) configurations, with fire-rated options providing up to 3 hours of protection. With its field-sizable rail and non-handed design, the 4700 Series is a versatile, code-compliant choice for any standard commercial opening.
4700 Series Exit Devices
The Hager 4700 Series is engineered to provide superior performance and security at an economy price point. Built to ANSI/BHMA Grade 1 standards, it features a stainless steel Pullman-type latchbolt and a durable steel chassis. This series is the perfect solution for light-to-medium traffic areas that require a reliable life-safety device without the high cost of institutional-grade hardware. s
Download the Hager 4700 Series Catalog to explore the full range of options, including finish choices like ALM (Aluminum), DBZ (Dark Bronze), and US32D (Satin Stainless Steel). The catalog provides detailed ordering information for both the standard panic-rated models and the 4701R-F fire-rated devices, ensuring you select the correct hardware for your building's specific safety requirements.
The Hager 4700 Series Installation Instructions guide you through every step of the mounting process. This manual includes technical details on field-cutting the rail to fit narrower doors and properly installing the thru bolts (SNB) for a high-strength attachment. Following these factory instructions is critical for maintaining the device's Grade 1 rating and 5-year mechanical warranty.
Hager 4700 Series Installation Instructions
Hager 4700 Series SVR and LBR Instructions
Hager 4701 Series Trim PP Pull Handle/ Thumb Piece Installation Instructions
Hager 4703 Series Key-in-Lever Trim Installation Instructions
Hager 47RD and 47RN Installation Instruction for Retrofit Applications
Precision door preparation is key to a smooth-functioning exit. Our Hager 4700 Series Templates provide exact drilling coordinates for the chassis, strikes, and exit trim. These dimensional drawings ensure that your 4701 Rim or 4701 SVR device aligns perfectly with the frame, preventing latch-drag and ensuring long-term hardware reliability.
Hager 4700 Series 4701RIM Rim Door Prep Template
Hager 4700 Series 4701RIM with 4900 Mullion Template
Hager 4700 Series 4701RIM with Rim Cylinder
Hager 4700 Series 4701SVR Door Prep Template
Hager 4700 Series 4701SVR Latch Template
Hager 4700 Series 47CE / 47NL / 47BT / 47DT Exit Lever Escutcheon Trim Template
Hager 4700 Series Key-in-Lever Exit Trim Template
Hager 4700 Series Pull Plate Exit Trim Template
Hager 47RN or 47RD Raised Lip Pull Exit Trim Template
Outside Exit Trims
The Hager 4700 Series Exit Trims are designed to complement the 4700 chassis with various entry functions. We offer a full selection of Key-in-Lever (47KE) and Escutcheon (47CE) trims in popular styles like the Withnell and Archer. These trims are ADA compliant and available in multiple finishes to match your existing door hardware perfectly.
4700 Series Accessories

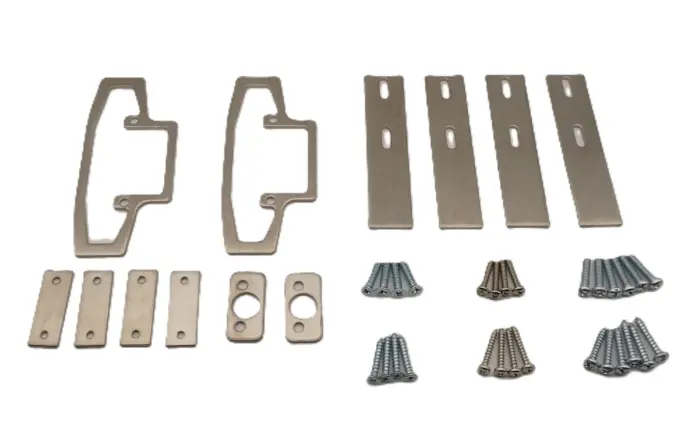

Customise your entry with Hager 4700 Series Accessories. This section features Shim Kits for doors with glass moldings, specialized Strike Plates, and replacement dogging keys. All kits include the necessary mounting hardware, including thru bolts (SNB), to ensure a secure and permanent installation on any door material.
