Stand Alone Alarmed Exit Device Applications
Protect your facility from unauthorized entry and exit with our high-performance Stand Alone Alarmed Exit Device solutions. These self-contained units provide an immediate audible deterrent, making them an essential component for loss prevention in retail, healthcare, and industrial environments. By utilizing a battery-powered exit alarm, you can secure secondary perimeters and fire doors without the need for extensive wiring. Each device is engineered for durability and includes the necessary technical specifications and mounting hardware to ensure a quick, code-compliant installation that protects your assets and your occupants.
System Operation:
The exit alarm kit is a simple way to monitor the use of an exit. While still a means of egress, the unit contains an internal horn (alarm). When the touchbar is depressed, the horn sounds, thus providing an audible means of signaling that the opening has been violated.
The cylinder/key switch serves three functions:
- Silences the Alarm
- Provides a 20 second delay in the alarm activation, allowing authorized personnel to use the exit.
- Deactivates the alarm, allowing free use of the opening.
The unit operates on one standard 9V battery. When the battery is weak the horn will emit an intermittent signal.
**** Special Note: Exit Devices with Exit Alarms use Mortise Cylinders, whereas, Exit Alarms can use both Rim and Mortise Cylinders. When using mortise cylinders pay attention to the tailpiece on the back. The shape, length, and configuration is important to the function of the exit alarm. ****

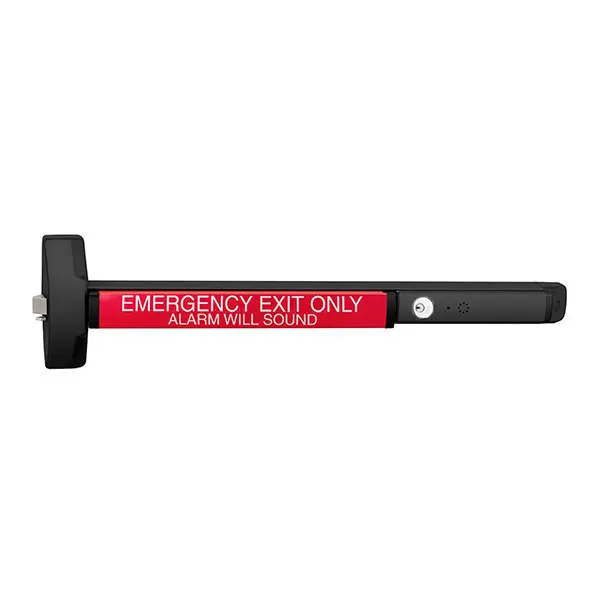

Alarmed Exit Devices
The Alarmed Exit Device combines a heavy-duty panic bar with an integrated high-decibel horn. When the touch bar is depressed for egress, the internal alarm sounds immediately, alerting staff to unauthorized use of the door. These units are ideal for back-of-house retail exits or delivery doors where security monitoring is required at the opening itself. They are available in various finishes and include all required mounting components for standard door preparations.

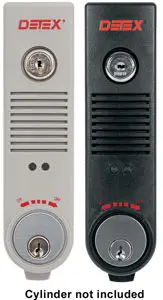

Exit Alarms
For doors that already have existing hardware, a dedicated Exit Alarm provides a cost-effective security overlay. These standalone, surface-mounted units monitor the door position and trigger a loud siren if the opening is breached without a key bypass. Perfect for retrofit applications, our exit alarms offer a simple way to bring any door into a managed security plan. Detailed installation templates are included to ensure proper alignment with your existing hardware.
