Electric Lock Applications & Integrated Security
Upgrade your facility with integrated Electric Lock Applications designed for superior security and seamless aesthetic integration. Unlike external components, an electrified lockset provides a built-in solution for fail-safe and fail-secure requirements, making them the preferred choice for high-traffic commercial corridors and secure stairwell perimeters. Our configurations support advanced access control system integration, providing the technical data and specialized mounting hardware necessary for a precise, code-compliant installation. Whether you are implementing a centralized security hub or a single-door retrofit, these electric locks offer the durability and control required for modern architectural openings.
System Operation:
Electric Locks facilitate the remote release of a secured opening by electronically controlling the lever's ability to engage the internal lockbody. This allows the door to be opened for authorized entry without the need to manually retract the latchbolt.
Fail Secure:
- Outside lever continuously locked until unlocked by key or electric current.
- Inside Lever always free for immediate egress.
Fail Safe:
- Outside lever continuously electrically locked until unlocked by key, switch, or power failure
- Inside Lever always free for immediate egress.
Electrified Locks
For facilities requiring centralized control and real-time security, our electrified locks provide the necessary hardware foundation for a fully integrated system. Unlike battery units, these locks are hardwired to a power supply, enabling advanced features like remote locking/unlocking and fire alarm integration. We specialize in Sargent Electrified Hardware, providing the precision-engineered components that security integrators and locksmiths require for "system-ready" openings. These units maintain a traditional architectural appearance while housing the internal solenoids and switches needed for sophisticated access control.

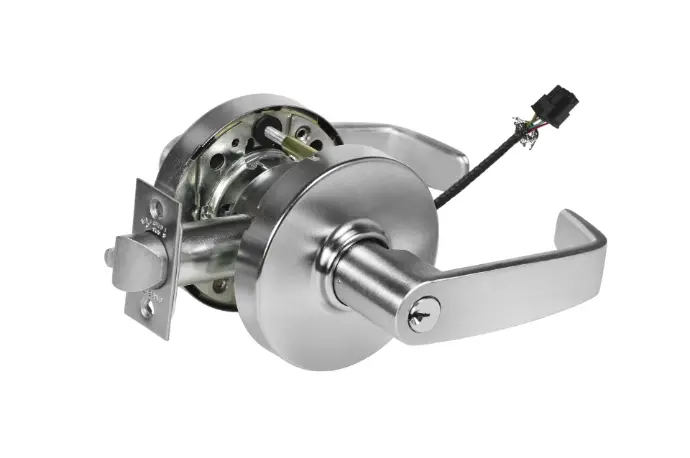

- Sargent 10X Line Electrified: The premier choice for electrified cylindrical locks, offering superior strength and flexible Fail-Safe or Fail-Secure functionality.
- Sargent 8200 Series Electrified: A high-security electrified mortise lock designed for maximum physical defense and seamless integration with building management systems.
Readers, Keypads & Egress Sensors

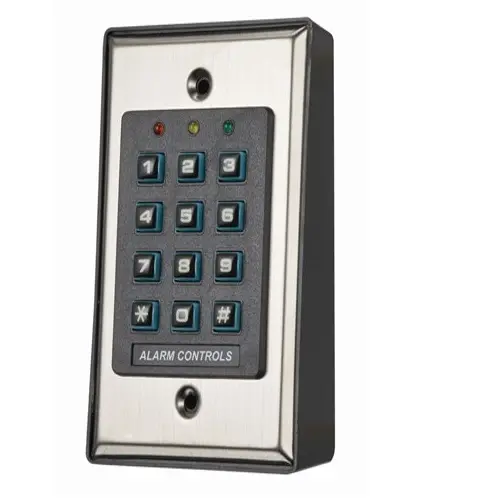

Control who enters and how they exit. This section includes Securitron DK-26 keypads, proximity readers, and high-accuracy XMS2 motion sensors. In 2026, we prioritize "No-Touch" technology, featuring Alarm Controls wave-to-open sensors that trigger both the lock release and the door operator for a completely sanitary, hands-free experience.
Power Supplies & Power Transfer
Ensure your electrified hardware never misses a beat with our Securitron BPS and PSP power supplies, which deliver clean, filtered power to your access control system. To protect critical wiring from damage or tampering, we offer a full range of power transfer solutions, including concealed electric hinges, EPTs, and heavy-duty armored door loops.

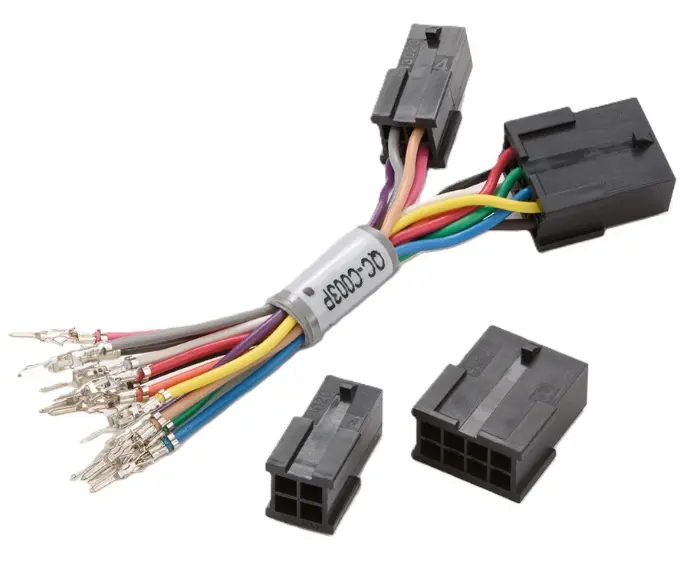

McKinney ElectroLynx® Accessories
To eliminate the risk of field-wiring errors, McKinney ElectroLynx® accessories offer a plug-and-play system. This section includes cable harnesses, crimpers, and connectors that allow for snap-together installation, significantly reducing labor costs and ensuring a fail-safe connection between the power source and the hardware.
Fire-Rated Stairwell Re-entry
Ensuring life safety compliance is critical in multi-story environments. Our Fire-Rated Stairwell configurations utilize fail-safe electric locks that automatically unlock the exterior lever upon a signal from the fire alarm system. This allows for safe, immediate re-entry during emergencies while maintaining restricted access during normal business hours. Each set is designed for seamless integration with existing life safety protocols and includes technical data for code verification.
Perimeter Building Security
Protecting the building envelope requires hardware that remains uncompromised during power interruptions. For these applications, we recommend fail-secure electrified mortise locks, which ensure the exterior lever remains locked even if power is lost. This setup is ideal for main entrances and sensitive perimeter doors where maintaining a secure "closed" state is the primary objective. All perimeter solutions are provided with heavy-duty mounting hardware for maximum resistance.
Integrated Request to Exit (REX)
Streamline your installation by choosing electrified locks with Integrated Request to Exit (REX) switches. By housing the monitoring switch directly within the lock body, you eliminate the need for additional mounting components on the door frame or separate wall-mounted sensors. This built-in functionality simplifies the wiring process and provides a cleaner architectural look while ensuring the access control system accurately tracks authorized egress.
Low-Voltage Power Requirements
The longevity of any electric lock depends on the quality of the power it receives. To protect sensitive internal solenoids from heat buildup and electrical noise, these applications require filtered and regulated low-voltage power supplies. Utilizing the correct power source ensures consistent performance and prevents premature hardware failure. Detailed installation guides are available to help you match the correct voltage and amperage to your specific lockset.
