Magnetic Lock & Automatic Door Operator Application
Ensure maximum holding force and high-end aesthetics with our Magnetic Lock Door Operator Applications. This configuration is the ideal solution for glass "all-glass" entrances and high-security interior openings that lack traditional latching hardware. By integrating a high-performance magnetic lock with an automatic operator, you achieve a sophisticated, touchless entry system that maintains a rigorous security profile while meeting all NFPA 101 life-safety requirements.
System Operation:
The operation of a Maglock-equipped door requires a "power-to-lock" logic, meaning the system must intentionally drop power to allow the door to move.
- Doors with magnetic locks in the normally closed and locked position.
- Manually depressing interior or exterior pushbutton will deactivate the magnetic lock.
- Operators will remain inactive for a predetermined time.
- Upon expiration of the time delay, the door operator will activate.
- Magnetic lock will relock upon closing of the door.
- System must be interfaced (integrated) with the fire alarm system in the building.
Operations Summary
The operation of a Maglock-equipped door requires a "power-to-lock" logic, meaning the system must intentionally drop power to allow the door to move.
- Request for Access: A user triggers the system via a PIR motion sensor, wave-to-open actuator, or access control credential. Standard Building Code requires 2 of those 3 options, in the event one fails. Verify with local building inspectors to verify.
- Power Interruption: The control system or power supply immediately cuts power to the electromagnetic lock, neutralizing the holding force.
- Confirmation Delay: A specialized delay-on-release relay (typically 200–400ms) ensures the residual magnetism has dissipated completely.
- Operator Cycle: Once the door is free, the automatic operator initiates the opening swing.
- Dwell & Closing: The door remains open for the programmed duration. Once the door closes and is fully seated against the frame, power is restored to the magnet.
- Life Safety Integration: Because magnetic locks are "Fail-Safe" by nature, they are tied directly to the building's fire alarm system. If the alarm is triggered, power is cut, and the door becomes a free-swinging manual exit.
Door Operators
Enable hands-free access with high-performance low-energy operators. We stock Norton’s 6000 and 5200 Series for intelligent, WiFi-integrated control, alongside Hager’s 8300 and 8400 Series for robust, cost-effective automation. These units offer adjustable opening speeds and "boost on close" technology to ensure security and compliance in any facility.
Power Supplies & Power Transfer
Ensure your electrified hardware never misses a beat with our Securitron BPS and PSP power supplies, which deliver clean, filtered power to your access control system. To protect critical wiring from damage or tampering, we offer a full range of power transfer solutions, including concealed electric hinges, EPTs, and heavy-duty armored door loops.
Operator Push Buttons
Complete your automation system with durable activation switches. Explore a wide variety of Hager and Norton push plates, including 4-1/2" square and 6" round designs. Available in hardwired or wireless RF configurations, these buttons feature high-visibility ADA logos and stainless steel finishes to withstand constant public use.
Door Operator Components
Keep your automation systems running smoothly with genuine accessories and installation hardware. This section includes essential Norton and Hager components designed for seamless integration, such as bollard posts for push buttons and high-reliability wireless transmitters and receivers.
Electromagnetic Locks
(Maglocks)
Discover the ultimate in "fail-safe" security. Electromagnetic locks provide powerful holding force with no moving parts to wear out, making them the ideal choice for high-traffic glass, aluminum, and wood doors. Featuring the industry-standard Securitron M62 and versatile Alarm Controls 600 series, these locks are designed to release instantly when power is cut, ensuring compliance with life-safety codes on emergency exit routes.
Mounting Brackets & Hardware
Ensure a professional, secure installation with the correct mounting accessories. Because every frame is different, we provide a comprehensive selection of Z-brackets for in-swinging doors, L-brackets for narrow headers, and glass-door shim kits. All brackets are designed for a precision fit with Securitron and Alarm Controls hardware, featuring high-strength thru bolts to ensure the lock remains permanently anchored to the door.
Readers, Keypads & Egress Sensors
Control who enters and how they exit. This section includes Securitron DK-26 keypads, proximity readers, and high-accuracy XMS2 motion sensors. In 2026, we prioritize "No-Touch" technology, featuring Alarm Controls wave-to-open sensors that trigger both the lock release and the door operator for a completely sanitary, hands-free experience.

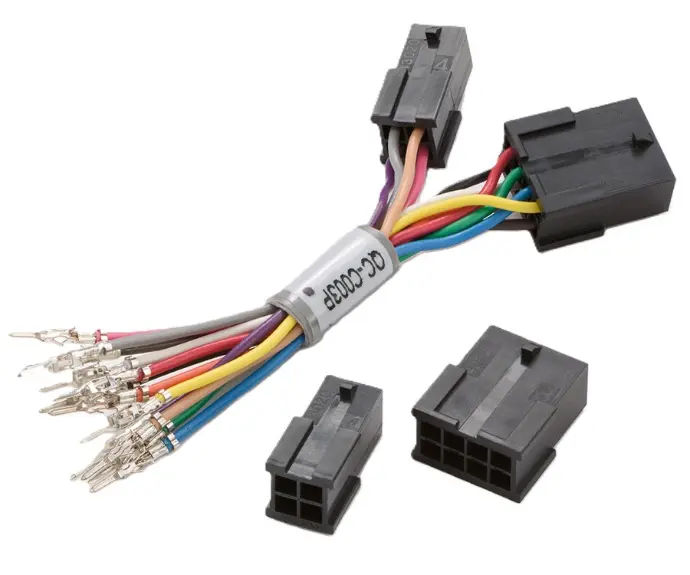

ElectroLynx® Accessories
To eliminate the risk of field-wiring errors, McKinney ElectroLynx® accessories offer a plug-and-play system. This section includes cable harnesses, crimpers, and connectors that allow for snap-together installation, significantly reducing labor costs and ensuring a fail-safe connection between the power source and the hardware.
