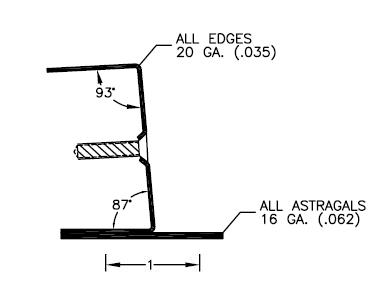

All Metal Stamping 210 Steel Astragal — 83-1/4" Door Pair Seal for Beveled Edge Doors

The All Metal Stamping #210 Steel Astragal is a heavy-duty commercial door pair seal engineered for beveled-edge door pairs. At 83-1/4" in length, this surface-mounted overlapping astragal is designed to cover and seal the meeting stile gap between double door leaves, providing a continuous barrier against air infiltration, light, drafts, and smoke. Finished in a beige prime coat, it is ready for field painting to match your opening specifications.

The #210 is the high-side-of-bevel version of All Metal's classic astragal profile. If you need the low-side-of-bevel configuration, see the All Metal Stamping #205. Choosing the correct model for your bevel orientation is essential for a flush, professional fit.

Key Features & Benefits

• Fire-rated performance: UL and WHI listed for use on wood and plastic-faced doors rated up to 90 minutes, and UL approved for hollow metal and steel-covered composite doors rated up to 3 hours
• Door pair sealing: Overlapping astragal design covers the meeting stile on pairs, eliminating the gap that allows drafts, light, smoke, and sound transmission
• Beveled door compatible: Specifically profiled for beveled-edge doors — high-side-of-bevel mounting (#210 series)
• Blank / no cutouts: Supplied blank without hardware cutouts; can be field- or factory-machined for locksets, flush bolts, exit device rods, or other hardware as needed
• Durable steel construction: All-metal stamped steel body for long-term commercial and institutional service life
• Beige prime finish: Accepts field-applied paint for color-matching to the door or frame finish

Applications

• Commercial and institutional double door openings requiring a meeting stile seal
• Fire-rated door pairs (wood, plastic-faced, hollow metal, or steel-covered composite construction)
• Openings requiring smoke, draft, or light control at the door pair gap
• New construction and retrofit/replacement astragal installations
• Schools, hospitals, offices, government buildings, and industrial facilities

Hardware Machining

This astragal ships blank — without cutouts for locksets, exit device bottom rods, flush bolts, or coordinators. Custom machining for hardware preparations is available; contact us to request a quote for material specially prepped to fit your opening. All Metal Stamping publishes a comprehensive machining guide covering standard hardware preparations and custom location layouts for their astragal and door edging products — ask for details when ordering.

Bevel Orientation — #205 vs. #210

All Metal Stamping offers two bevel-specific profiles for this astragal series. The #210 mounts on the high side of the bevel; the #205 mounts on the low side of the bevel. Confirm your door bevel orientation before ordering to ensure a proper fit against the inactive leaf.

Technical Details
