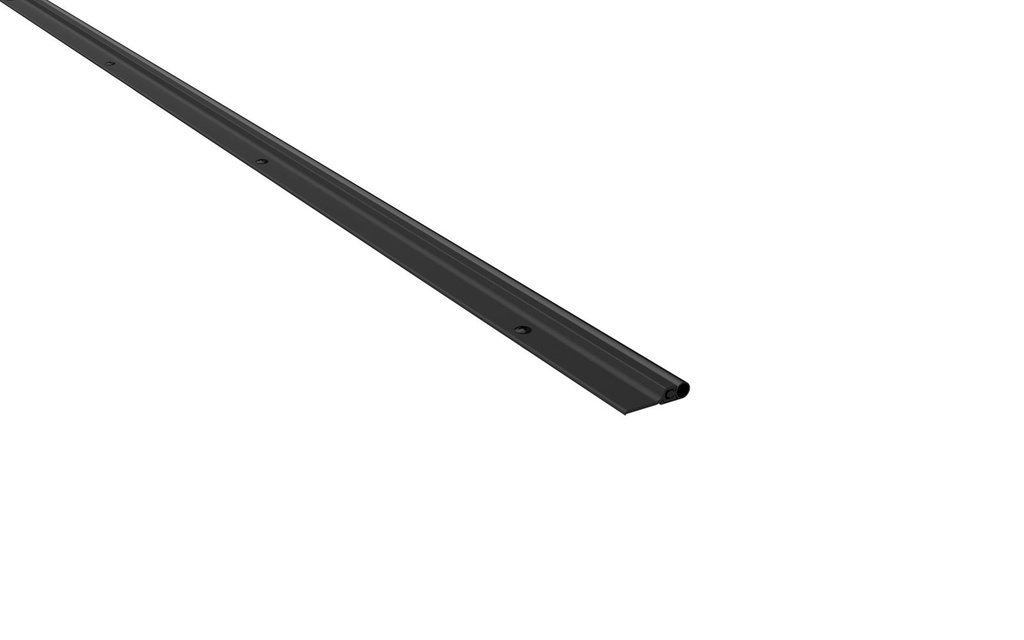

Pemko 303BSPV Eco-V Vinyl Perimeter Door Seal Kit — Black Suede Powder Coat Aluminum, 3'0 x 7'0 Opening
The Pemko 303BSPV is a screw-applied perimeter door seal kit designed to seal a standard 3'0 x 7'0 door opening (head and two jambs, 17 linear feet total). The kit combines a Black Suede Powder Coat aluminum channel with an Eco-V vinyl insert to create a continuous, compression-fit perimeter gasket along the top and both sides of the door frame. This type of perimeter gasketing is also commonly referred to as a door frame seal, door stop seal, or perimeter weatherstrip kit. Pemko is a recognized industry leader in commercial door sealing solutions, and the 303BSPV is a purpose-built, field-ready kit sized for the most common commercial door opening.
Institutional Grade Features & Benefits
- Complete Perimeter Kit: Includes head and two jamb sections covering a full 3'0 x 7'0 opening — 17 feet of continuous perimeter sealing in a single purchase, no additional measuring or cutting of separate lengths required.
- Eco-V Vinyl Insert: The flexible vinyl bulb seal compresses against the door face upon closing, forming a tight perimeter contact that helps reduce air infiltration, drafts, dust, light, and noise transmission around the door.
- Black Suede Powder Coat Aluminum Channel: The durable aluminum retainer channel is finished in a Black Suede Powder Coat, offering corrosion resistance and a professional, low-sheen aesthetic compatible with a wide range of commercial door and frame finishes.
- Screw-Applied Installation: The channel mounts directly to the door stop with standard screws, making installation straightforward for door hardware professionals and facilities maintenance teams without specialized tools.
- Pemko Eco-V Series Design: The Eco-V profile is engineered for reliable compression performance across repeated open/close cycles, maintaining consistent contact and seal integrity over the life of the installation.
- Versatile Commercial Application: Suited for interior and exterior commercial door openings where perimeter sealing is required to address air leakage, energy loss, sound transmission, or environmental control.
Technical Details
| Feature | Details |
|---|---|
| Brand | Pemko |
| Part Number | 303BSPV |
| Part Type | Perimeter Gasketing / Perimeter Door Seal Kit |
| Series / Profile | Eco-V |
| Opening Size Covered | 3'0 x 7'0 (Head + Two Jambs) |
| Total Linear Coverage | 17 feet |
| Channel Material | Aluminum |
| Finish / Color | Black Suede Powder Coat (BSP) |
| Insert / Seal Material | Eco-V Vinyl |
| Installation Method | Screw-Applied |
Documentation
| Brand | Pemko |
| Housing Finish | Black Suede Powder Coat |
| Weatherstripping Type | Perimeter Gasketing |
| Gasketing Set Size | 3'0 x 7'0 Set |
| Insert Material | Vinyl |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
