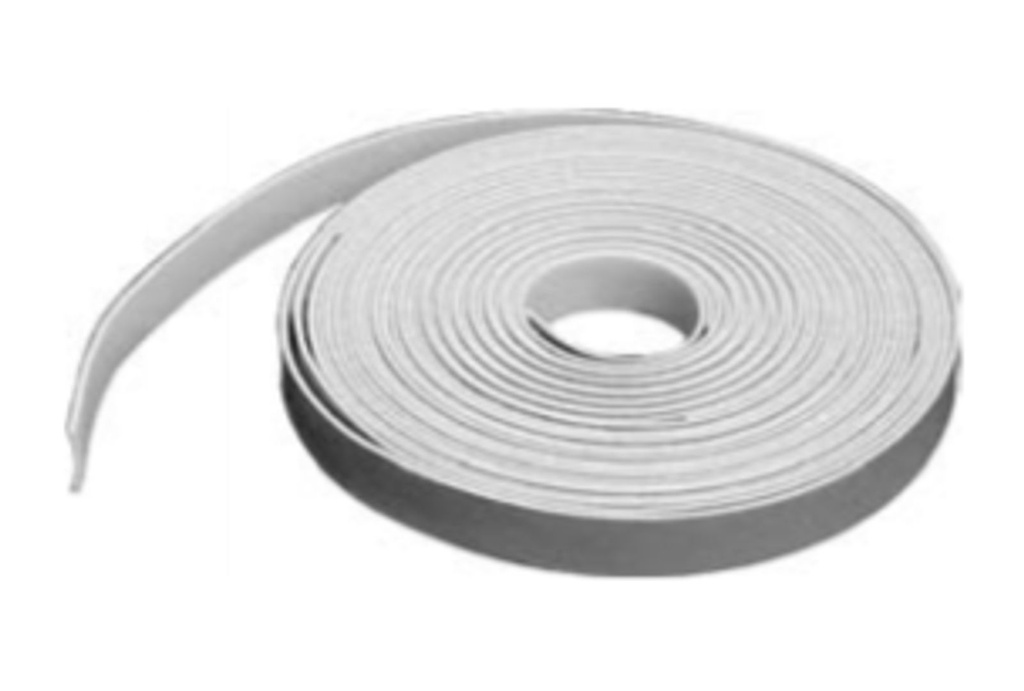

Pemko FG3000S45 Intumescent Fire Glazing Tape — White, 45-Minute Rated, 16 Ft Coil
The Pemko FG3000S45 is an adhesive-backed intumescent fire glazing tape designed to be applied around the perimeter of fire-rated lite and glazing openings in fire-rated door assemblies. Measuring 7/16 in. wide x 3/64 in. thick and supplied as a 16-foot coil, this tape provides a reliable, code-compliant method of sealing the glass edge within a fire-rated frame or door lite. When exposed to elevated heat, the intumescent material expands to seal the gap between the glass and the frame, helping to maintain the integrity of the fire-rated assembly. Finished in white, it blends cleanly into painted frames and lite stops. The FG3000S45 carries a UL 10C classification and is 45-minute fire rated.
Institutional Grade Features & Benefits
- Intumescent Sealing Action: Expands under heat to seal the glass edge within the glazing opening, helping maintain fire-rated assembly performance.
- Adhesive-Backed for Easy Installation: Peel-and-stick backing allows fast, consistent application directly to the glazing stop or frame rabbet — no additional adhesive required.
- 45-Minute Fire Rating: UL 10C classified at 45 minutes, making it appropriate for use in 45-minute fire-rated door and frame lite openings.
- Compact Coil Format: The 16-foot coil provides sufficient material for multiple lite openings from a single package, reducing waste and simplifying inventory.
- White Finish: Clean white color suits painted hollow metal frames, wood frames, and aluminum lite stops without visible contrast.
- Precise Profile: At 7/16 in. wide x 3/64 in. thick, the tape is sized to fit standard glazing channel dimensions without overfilling or leaving gaps.
Technical Details
| Feature | Details |
|---|---|
| Brand | Pemko |
| Part Number | FG3000S45 |
| Part Type | Intumescent Fire Glazing Tape |
| Width | 7/16 in. |
| Thickness | 3/64 in. |
| Length | 16 ft coil |
| Color / Finish | White |
| Fire Rating | 45-Minute |
| Classification | UL 10C Classified |
| Backing | Adhesive-backed (peel and stick) |
Documentation
| Brand | Pemko |
| Weatherstripping Type | Intumescent Seal |
| Fire Rated | Fire Rated |
| Insert Material | Intumescent |
| Mounting Type | Adhesive Applied |
| Gasketing Finish | White |
