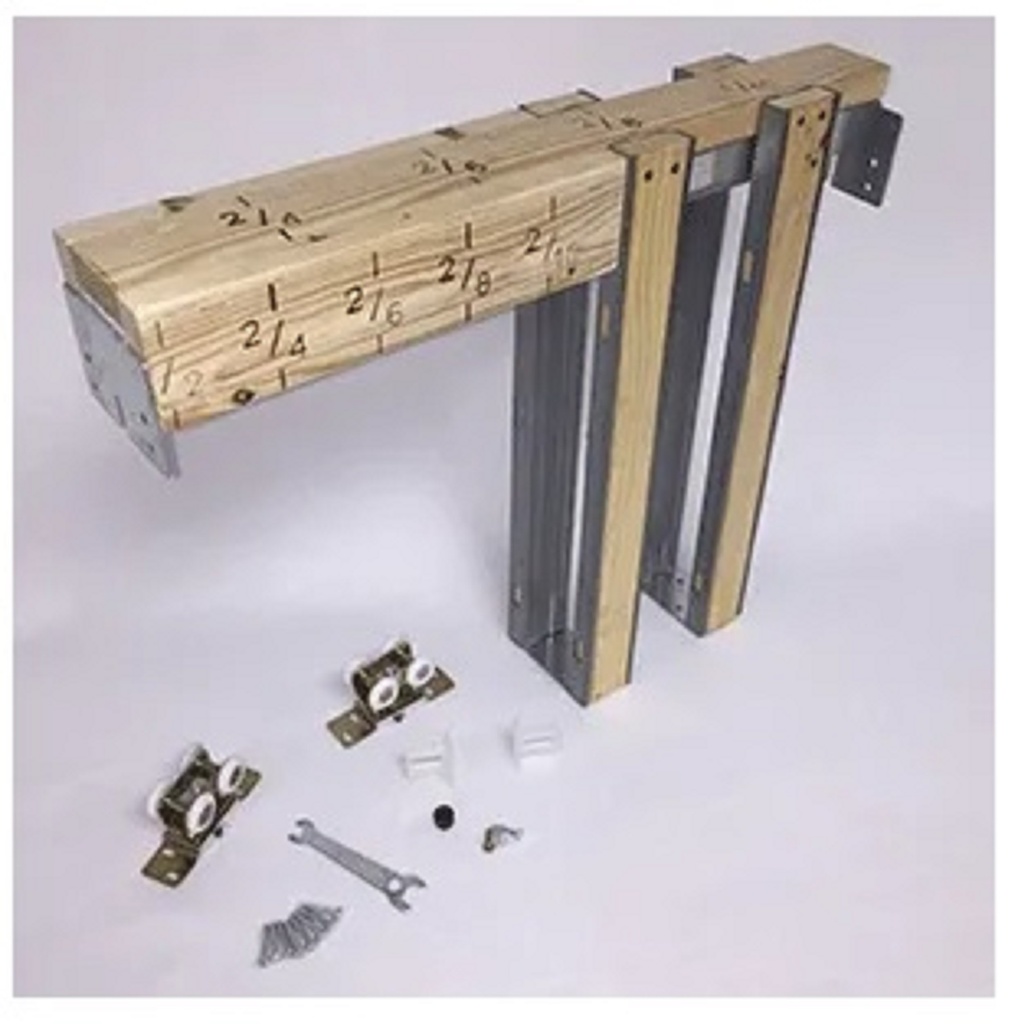

Hager 9850HD-96 Extra Heavy Duty Pocket Door Track Set with Pocket Door Studs
The Hager 9850HD-96 Pocket Door Set is the ultimate industrial-grade solution for oversized and heavy-duty sliding door applications. Specifically designed for a 4-foot door opening, this set is engineered to support a massive weight capacity of Up to 250 lbs. per door. This makes it the premier choice for Commercial, Healthcare, and High-End Residential projects where solid-core doors or lead-lined medical doors require a smooth, hidden transit system.
The foundation of the 9850 series is the 9303HD Track, an extruded aluminum "jump-proof" rail featuring a precision "V" shape. This rail geometry ensures the hangers remain perfectly seated, providing a whisper-quiet, effortless glide even under maximum load. To ensure the structural integrity of the pocket wall, this set includes heavy-duty pocket door studs, preventing wall bowing and protecting the door finish over years of high-frequency use.
BHMA Grade 1 Certified Reliability
The Hager 9850HD-96 is a BHMA Certified Grade 1 hardware system, meaning it has been rigorously tested to exceed 100,000 operational cycles. It stands as the modern, high-performance equivalent to previous Hager series, including the 9878, 9130, and 9901. IMPORTANT NOTE: While the functionality remains identical, the internal components of the 9850HD version are non-interchangeable with previous versions; for all new installations or complete structural retrofits, the 9850HD is the current industry standard.
Key Features
- Extreme Weight Capacity: Supports heavy-duty doors up to 250 lbs. (113 kg).
- Jump-Proof 9303HD Track: Extruded aluminum with "V" rails for silent, secure operation.
- Structural Studs Included: Includes rigid pocket door studs to maintain wall integrity and pocket clearance.
- Grade 1 Performance: Meets ANSI/BHMA A156.14 requirements by exceeding 100,000 cycles.
- Versatile Thickness: Accommodates standard door thicknesses from 1-1/8" to 1-3/4".
- Complete Hardware Package: Includes the 9606 Parts Bag with industrial-grade hangers and floor guides.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 9850HD-96 |
| Track Model | 9303HD (Extruded Aluminum) |
| Max Door Weight | 250 lbs. (113 kg) |
| Door Width Compatibility | Up to 48" (4-foot) Doors |
| Door Thickness Range | 1-1/8" (28.6 mm) to 1-3/4" (44 mm) |
| Certification | BHMA Grade 1 (ANSI A156.14) |
| Hardware Bag | 9606 (Heavy Duty Rollers & Guides) |
Packaged Set Options
The Hager 9850HD series is available at DoorwaysPlus.com in the following configurations to suit your project requirements:
- 9850HD-72: 72" (1829 mm) Set for a 3' (914 mm) door.
- 9850HD-96: 96" (2438 mm) Set for a 4' (1219 mm) door.
| Length | 96 Inch |
| Brand | Hager |
| Trackset Type | Pocket Door |
