Hager 9436 Stainless Steel Barn Door Track and Hardware Set - Face Mounted

The Hager 9436 Stainless Steel Barn Door Set is a premium, high-performance sliding hardware solution designed for modern architectural spaces. This versatile system is uniquely engineered for Face Mounted applications, featuring elegant stainless steel straps that fasten directly to the front of the door. Compatible with both Wood and Glass Doors, it is the premier choice for Commercial, Healthcare, and high-end Residential interiors requiring a sophisticated, minimalist aesthetic.

Constructed from industrial-grade 304 Stainless Steel, the 9432 series offers exceptional durability and a refined satin finish. The hangers are equipped with nylon-coated rollers and high-precision ball bearings, ensuring a whisper-quiet, glassy-smooth glide that is essential for private offices, hotel suites, and contemporary medical facilities.

BHMA Grade 1 Industrial Performance

The Hager 9436 is a BHMA Certified Grade 1 hardware system, rigorously tested to exceed 100,000 operational cycles. This certification guarantees long-term reliability in high-traffic environments. Capable of supporting heavy-duty door panels weighing up to 250 lbs, this system provides the structural integrity needed for thick solid-core wood or heavy tempered glass partitions.

Key Features

• Universal Door Compatibility: Includes hardware for Wood (1-1/4" to 1-3/4") and Glass (3/8" to 1/2") doors.

• Architectural Stainless Steel: Premium 304-grade stainless steel track and hangers for maximum corrosion resistance.

• Whisper-Quiet Operation: Precision nylon-coated rollers ensure silent, effortless movement.

• Grade 1 Reliability: Meets ANSI/BHMA 156.14 standards, exceeding 100,000 cycles for professional use.

• Low Profile Clearance: Requires only 3-13/16" of space from the top of the door to the top of the hardware.

• Complete Installation Kit: Includes the 1-269-8672 Parts Bag with all necessary mounting and technical fasteners.


Technical Specifications

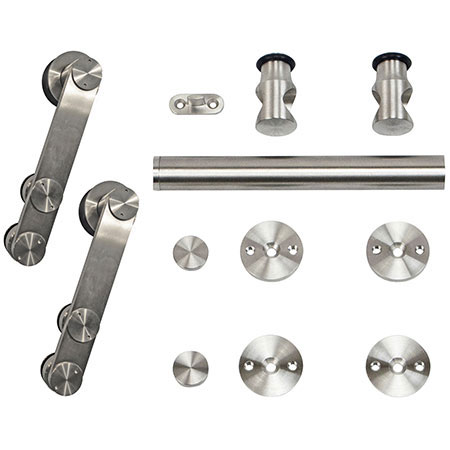

Packaged Set Contents

Each Hager 9436 set ordered from DoorwaysPlus.com arrives as a comprehensive, ready-to-install system:

• Stainless Steel Round Track: Available in 78" or 96" net lengths with decorative end caps.

• (2) Face-Mount Hangers: High-strength steel straps with integrated wall brackets.

• (2) Track Stops: Industrial-grade stops to safely limit door travel.

• (1) Door Bottom Guide: Ensures alignment and prevents panel swaying.

• Mounting & Installation Hardware: All high-strength fasteners required for a professional finish.

Professional Installation Note

To ensure the "effortless glide" this hardware is known for, DoorwaysPlus.com recommends mounting the rail into solid wood blocking. Precision-engineered 304 stainless steel tracks require a perfectly level installation to prevent "drifting." For glass door installations, ensure the panel is tempered and meets the specified thickness requirements for a secure fit with the face-mount straps.
