Alarm Controls TS-20 Under-Counter Alternate Action Request-to-Exit Button

The Alarm Controls TS-20 is a surface-mounted, under-counter door release station designed for discreet, convenient egress control at reception desks, front counters, nurse stations, and any location where a concealed request-to-exit (RTE) trigger is required. Featuring an alternate action pushbutton (push-on / push-off), the TS-20 gives operators positive, latching control over electric strikes, magnetic locks, and other access-controlled locking devices without exposing the release point to public view.

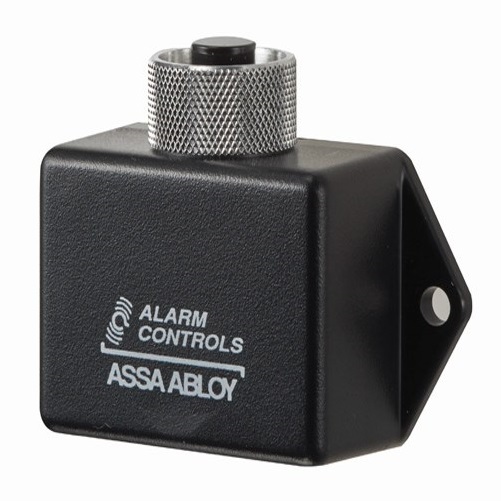

The compact black ABS plastic enclosure mounts under a desk or counter surface via two integrated mounting ears. The recessed pushbutton is protected by a 1-inch guard ring to prevent accidental actuation — a critical feature in high-traffic environments where incidental contact could inadvertently release a door. Depressing the button operates the internal switch contacts directly, providing a clean, CPU-bypass signal path to the locking device.

Key Benefits

• Discreet placement — mounts out of sight under counters or desks; ideal for reception, lobby control, and security checkpoints
• Alternate action switching — push-on / push-off operation allows the operator to hold a door released for extended periods without continuously depressing the button
• Guard ring protection — 1-inch raised guard ring prevents unintentional activation
• Flexible contact configuration — one N/O and one N/C contact supports both fail-safe and fail-secure locking device wiring
• Solid-state simplicity — direct switch contact operation; no CPU routing required, maintaining code-compliant direct power interruption paths
• Upgrade option — TS-20D variant provides a DPDT switch for dual-circuit or more complex access control panel wiring

Typical Applications

• Reception and front-desk door release at corporate lobbies, medical offices, and government facilities
• Nurse station and behavioral health unit egress control
• Secured vestibule or mantrap release points
• Any installation pairing with an Alarm Controls magnetic lock (600S, 1200S series) or compatible electric strike requiring an under-counter RTE station
• Access control systems where a wall-mounted button is not practical or aesthetically acceptable

Specifier & Installer Notes

The TS-20 is intended as a supplemental or operator-controlled RTE station, not a sole means of egress release for fail-safe locks on required exit paths. Per IBC and NFPA 101, standalone buttons may not serve as the only release method on access-controlled egress doors — pair this device with compliant egress hardware or a listed switch-in-hardware solution where required. Always verify local code compliance with your AHJ when integrating under-counter release stations into life-safety egress plans.
