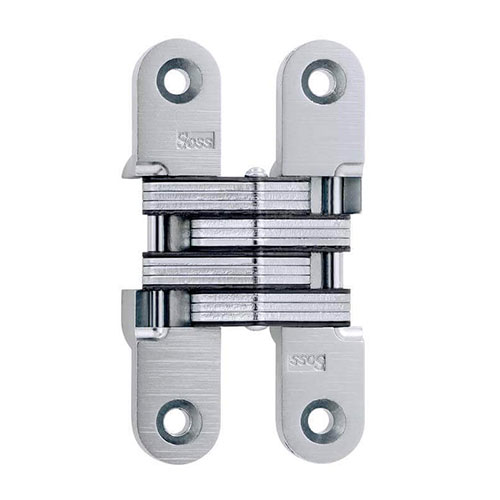

SOSS 212 Invisible Hinge for 1-1/8" Minimum Door Thickness
The SOSS® Invisible Hinge model #212 is ideal for use in wood or metal constructions that measure between 1-1/8″ and 1-3/8″ in thickness. Made from a combination of zinc and steel, this hinge incorporates nylon links for added strength and durability. The SOSS® Invisible Hinges can open a full 180° and are designed as a single action hinge.
Wood screws included. Machine screws are available for an additional charge.
Dimensions
| A | 3/4″ (19.05mm) |
| B | 35/64″ (13.49mm) |
| C | 3-3/4″ (95.25mm) |
| D | 11/64″ (4.37mm) |
| E | 3/16″ (4.76mm) |
| F | 2-1/16″ (52.39mm) |
| G | 3/64″ (1.19mm) |
| H | 1-5/64″ (27.38mm) |
| I | 3/8″ (9.53mm) |
| Min. Matl. Thickness | 1-1/8″ (28.58mm) |
| Wood Screw Sizes | #10×1-1/4″ (4.8x32mm) |
| Soft Wood Pilot Hole | No. 43 |
| Hard Wood Pilot Hole | No. 31 |
| Machine Screw Sizes | #10-24×3/4″ |
| Hinge Weight | .75 lb. |
Additional Information
| Application | Metal, Wood |
|---|---|
| Min. Material Thickness | 1-1/8″ |
| Fire Rating | No |
| Power Transfer | No |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood |
| Packaging | 1 / Box = 1 Each |
| Packages Per Container | 1 Each |
| Price Per | Each |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US5 - Blackened Satin Brass or US14 - Polished Nickel or US19 - Flat Black or US32 - Polished Stainless Steel or UNP - Unplated or US10BL - Oil Rubbed Bronze Lacquered |
| Brand | SOSS |
| Hinge Type | Invisible |
| Base Material | Steel |
| Door Thickness | 1-1/8" Dr Thickness, 1-3/8" Dr Thickness |
