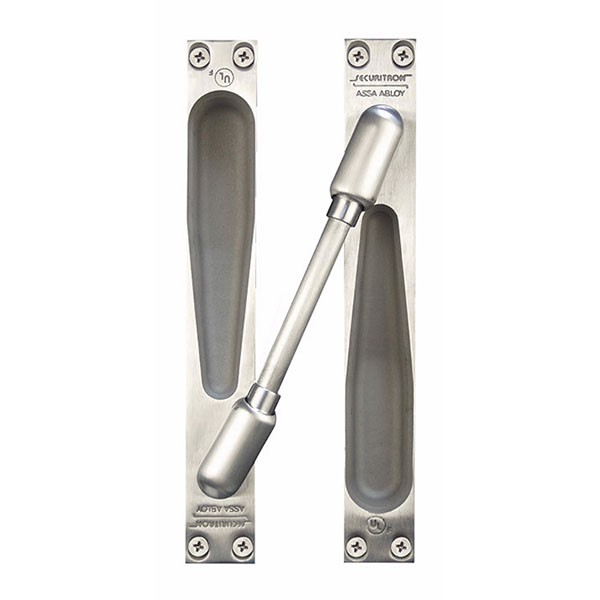

Securitron EL-CEPT-10 Concealed 10 Wire Electrical Power Transfer with Electrolynx Connectors

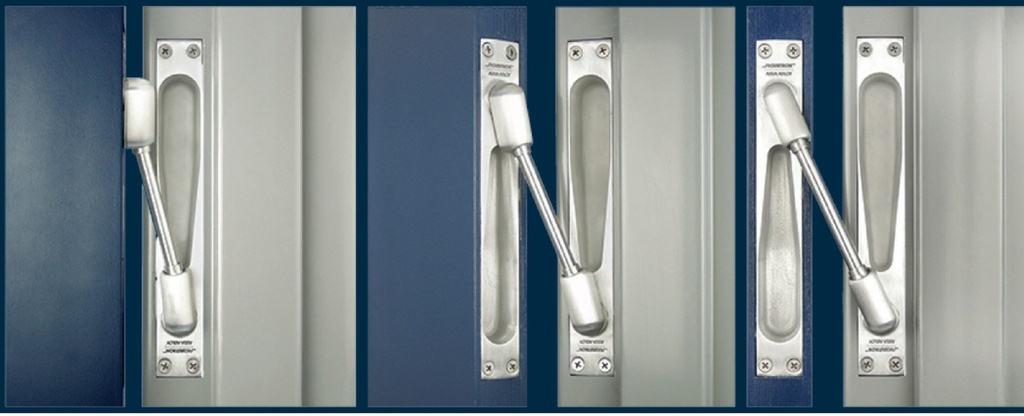

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door.
Product Features
- Mortises into the edges of the door and frame
- Direct retrofit for competitor products
- Tamper resistant
- All metal construction including back boxes
- 7/8" [22.25mm] knockouts on back boxes accommodate EMF type fittings
- Tested to 1 million cycles
- Compatible with butt hinges up to 6"[152.4mm] and continuous hinges without cutout
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty

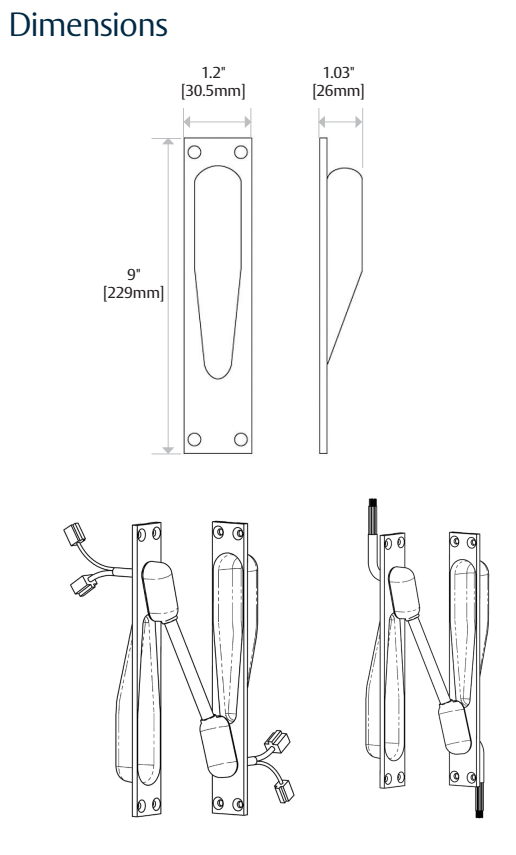

Weights & Dimensions
- Height : 9
- Width : 1-1/5
- Depth : 1-3/100
- Max Shipping Weight (lbs) : 2-2/5
- Hinge Size : 5 inches or less up to 180 degree swing range 5.5 inches up to 130 degree swing range 6 inches Butt Hinge up to 110 degree swing range 0.75 inches Offset Pivot up to 110 degree swing range
Strength & Durability
- Endurance : 1,000,000
- Fire Rated : Yes
- Windstorm Resistant : Yes
- Weather Resistance : Indoor/Outdoor
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Electric Power Transfer Options | EL - ElectroLynx connections |
| Brand | Securitron |
| Electric Hinge Options | QC10 - ElectroLynx |
