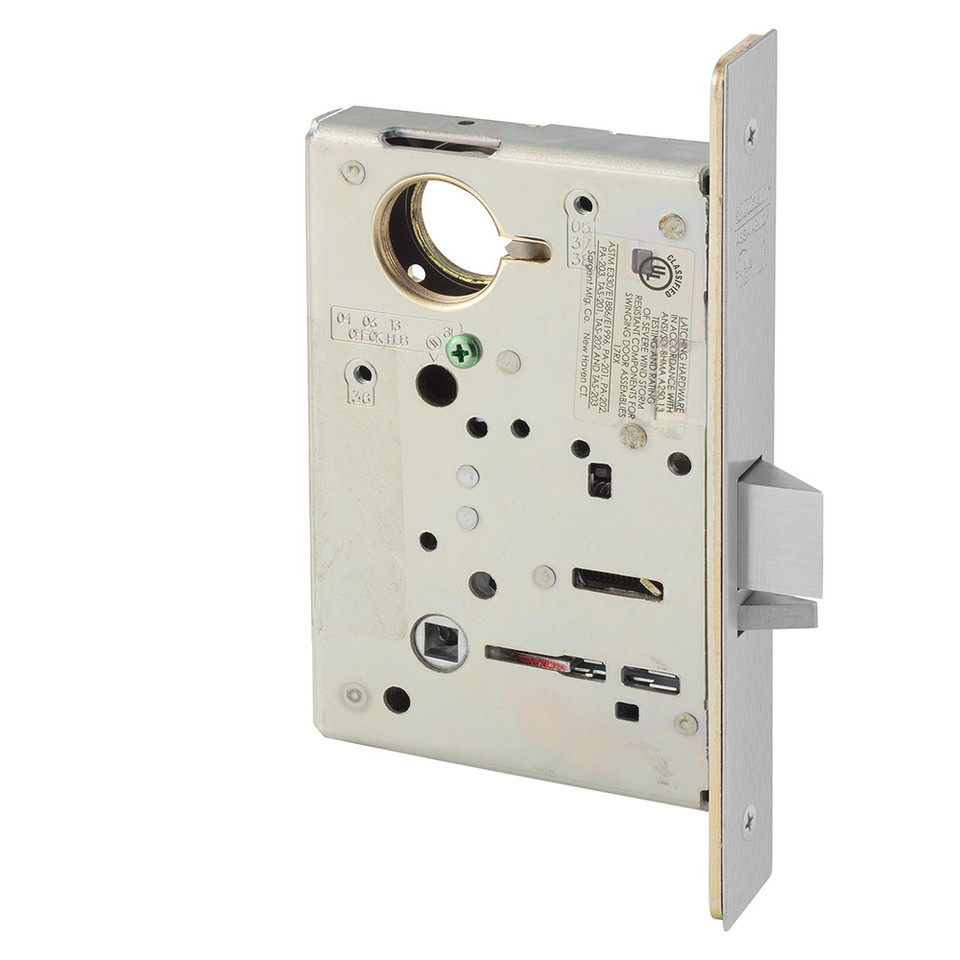

Sargent LB-8215 Mortise Lever Lock Body - Passage Function
Includes:
- Lock Body, Outside Front, Strike and Screw Pack
- Lock Bodies will be furnished as RH Swing, Handing can easily be changed in the field
- Will not work with 7800 (Knob) Mortise Locks or R8200 Mortise Locks
Function Info:
Trim from either side retracts latchbolt at all times
ANSI F01
Technical Specifications
| Feature | Details |
| Function | 15 Passage or Closet (ANSI F01) |
| Series | 8200 Heavy-Duty Mortise (Lever line) |
| Type | Mortise lock body (case only) -- trim & cylinder ordered separately |
| Cylinder | Non-keyed (no cylinder) |
| Deadbolt | No |
| BHMA Finishes | 626, 630, 613, 613E, 612, 625, 605, 606, 619 |
| Handing | LH / RH / LHR / RHR |
| Grade | ANSI/BHMA A156.13 Series 1000, Operational Grade 1 & Security Grade 1 (standard trims) |
| Cycle Test | 16,000,000-cycle UL test (Verification ID V584148) -- 16x ANSI Grade 1 minimum |
| Fire Rating | UL/cUL listed, A-label (3 hr) up to 4'x10' single / 8'x10' pair; UL 10C positive-pressure |
| Backset | 2-3/4" |
| Armored Front | 8" x 1-1/4", ANSI/BHMA A156.115, flat-to-1/8" bevel field-adjustable |
| Case | 12-ga heavy-duty wrought steel (0.109"), zinc dichromate; 0.125" cold-rolled inside front |
| Latchbolt | 3/4" one-piece anti-friction stainless steel, reversible |
| Field Reversibility | Rehanded without opening the lockbody |
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome |
| Door Handing | LH or RH or RHR or LHR |
| Brand | Sargent |
| ANSI Mortise Lock Function | F01 - Passage |
| Series | Sargent - 8200 Series |
| Part Type | Lock Body |
