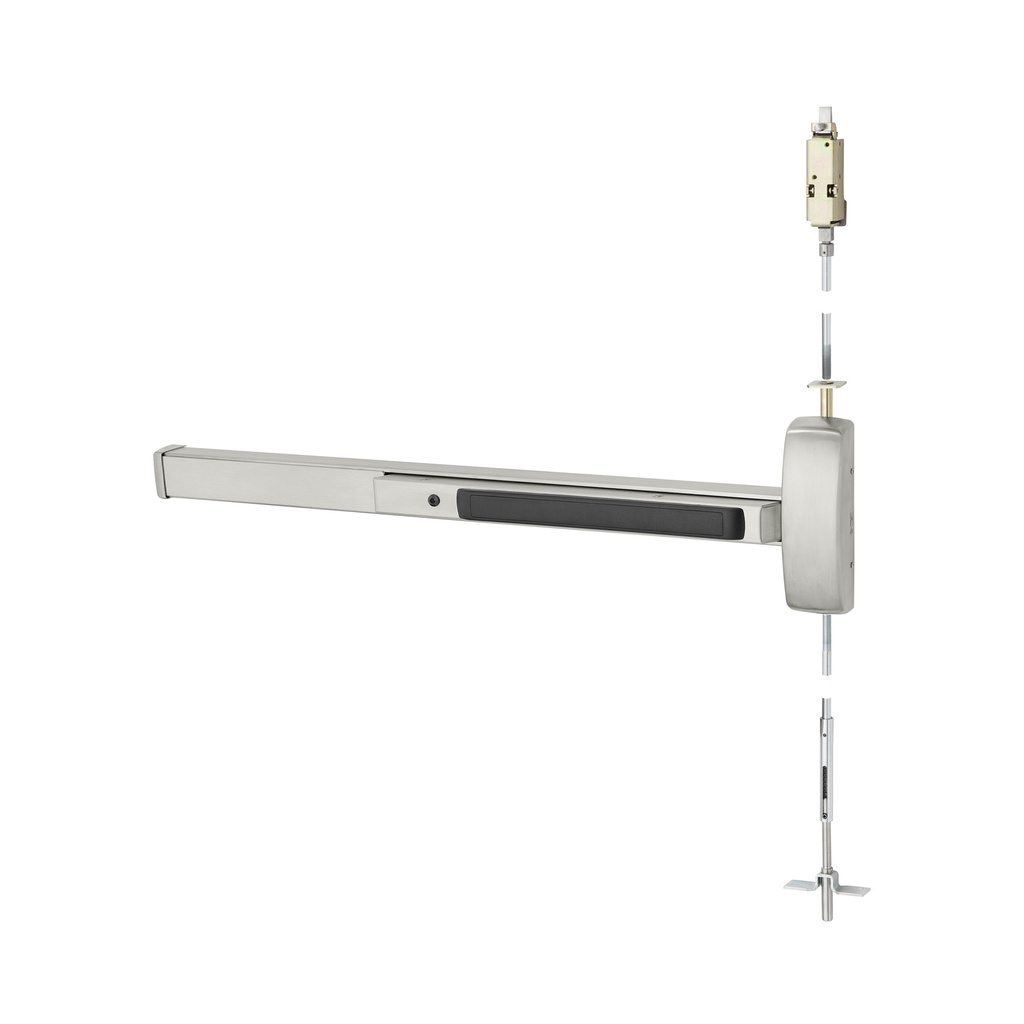

Sargent AD8610 Wide Stile Concealed Vertical Rod Exit Device - Aluminum Door
The Sargent AD8610 is a premium Grade 1 Concealed Vertical Rod (CVR) exit device specifically designed for wide stile aluminum doors. By housing the vertical rods within the door frame, the AD8610 provides a clean, high-end architectural look while protecting the locking mechanism from tampering and environmental wear. This heavy-duty panic bar is the ideal solution for high-traffic retail storefronts, commercial offices, and institutional buildings where both aesthetics and rugged security are required.
High-Security Performance for Aluminum Doors
Engineered for 84" (7'0") door heights, the Sargent AD8600 Series is certified to ANSI/BHMA A156.3 Grade 1 standards, ensuring it can withstand heavy daily use. This model provides secure two-point latching at the top and bottom of the frame for total door control. It is UL305 Panic Listed, providing immediate and reliable egress in emergency situations. The wide stile design is optimized for standard aluminum door profiles with a 4-1/2" minimum stile width.
Versatility and Advanced Integration
The AD8610 is designed to adapt to your facility’s specific needs. For high-traffic areas where floor strikes are undesirable, it can be configured as a "Less Bottom Rod" (NB-AD8610) device. The NB configuration eliminates the bottom strike, providing an obstacle-free threshold for wheelchairs and carts. For modern security setups, the device supports various electric options, including Remote Latch Retraction (56-) and Request-to-Exit (55-). To ensure a simplified, professional installation, we recommend using the QC12 Electrolynx connector on the associated hinge for a reliable "plug-and-play" power connection.
Key Product Features
- Concealed Vertical Rods: Rods are hidden within the aluminum door for enhanced security and a sleek appearance.
- Wide Stile Design: Purpose-built for aluminum doors with a 4-1/2" minimum stile width.
- Grade 1 Durability: Certified ANSI/BHMA A156.3 for extreme longevity and high-frequency use.
- Two-Point Latching: Includes a stainless steel top bolt and secure 640 strikes for the top and bottom.
- Accessibility Friendly: Can be used as an NB (Less Bottom Rod) device to eliminate tripping hazards.
- Customizable Sizing: Available in four rail lengths (E, F, J, G) to fit door widths from 24" to 48".
Technical Specifications
| Feature | Details |
| Device Type | Concealed Vertical Rod (CVR) for Aluminum Doors |
| Door Height | Optimized for 84" (7'0") openings |
| Minimum Stile | 4-1/2" (114mm) |
| Latching | Top & Bottom (640 Strikes standard) |
| Dogging | Hex key dogging standard; 16- cylinder dogging available |
| Centerline | 41" from finished floor (Standard) |
| Mounting | Supplied standard with machine screws |
Ordering Information & Handing
To ensure a perfect fit, Sargent rails are factory-cut to size; please provide the exact door width upon order placement. Additionally, door handing information (LHRB or RHRB) is required to ensure the device and any associated trim are correctly configured for your opening. For doors thicker than 1-3/4", specify the dimensions and use the 31- prefix.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Sargent Exit Device Rail Length | F - 36" Wide Door or J - 42" Wide Door or G - 48" Wide Door |
| Sargent Exit Device Prefixes | 43 - Flush End Cap or 53 - Latchbolt Monitor Switch – available with 55, 56, 58, AL options) or 55 - Signal Switch in Rail or 56 - Motorized Electric Latch Retraction (Minimum door width for narrow & wide stile is 28") or 58 - Electric Dogging or 59 - Electroguard Delay Egress (Not available with 16-, 53-, 55-, 56-, 58- Options) |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Exit Device Type | CVR Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches, 42 Inches, 48 Inches |
| Door Height | 7'0" Dr Ht |
