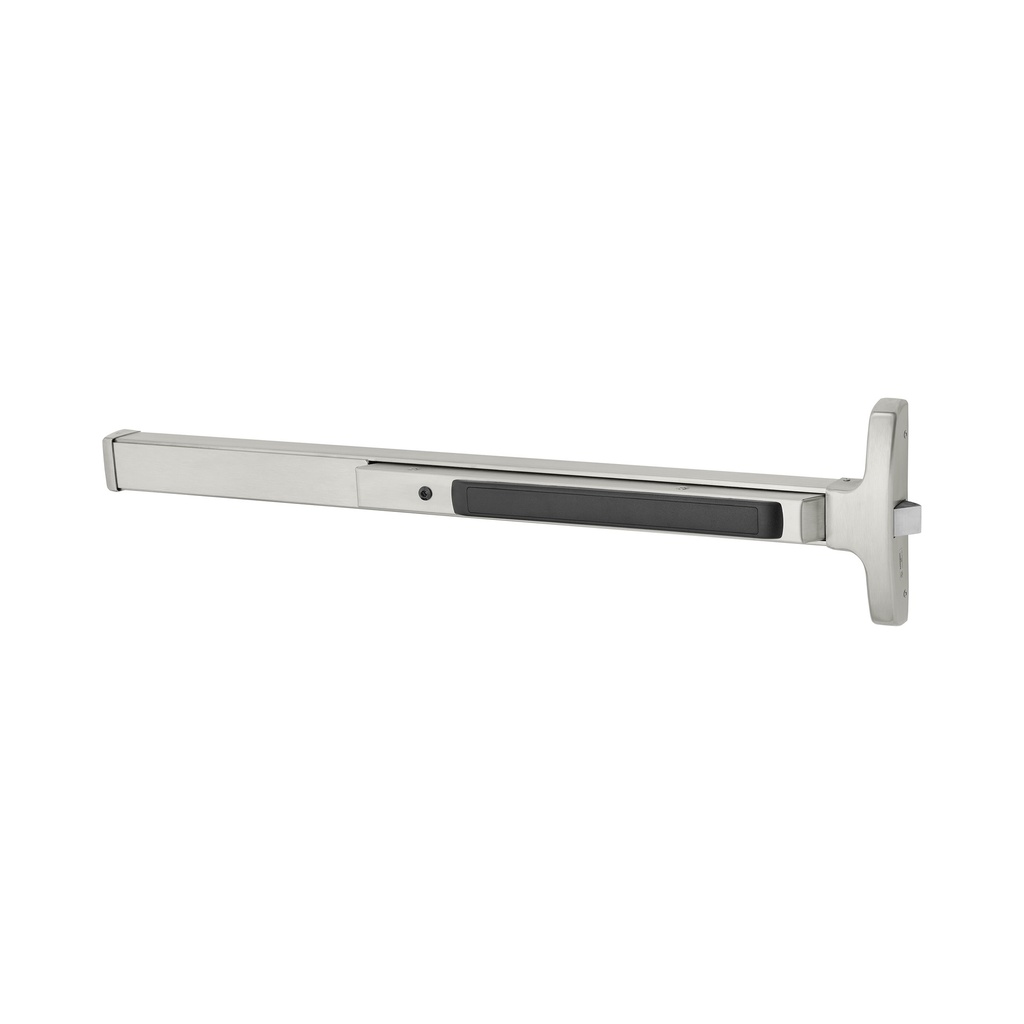

Sargent AD8510 Narrow Stile Rim Exit Device
The Sargent AD8510 is an elite Grade 1 Narrow Stile Rim Exit Device engineered specifically for aluminum frame full-glass doors and narrow-profile metal or wood openings. Part of the renowned Sargent 80 Series, the AD8510 combines a sleek, architectural "pushpad" design with the extreme durability required for high-traffic commercial environments. This exit-only device offers a single-point rim latching system that delivers quiet, dependable operation and rugged security.
Architectural Performance and Security
Certified to ANSI/BHMA A156.3 Grade 1, the AD8510 is built to last the life of the building. It features a robust 3/4" throw stainless steel latchbolt and is UL305 Panic Listed for life safety. For fire-rated applications, the 12-prefix version is UL10C Fire Rated (up to 3 hours), providing essential protection while maintaining a modern, narrow-profile aesthetic. Its modular design and minimal moving parts ensure it remains maintenance-free even under heavy use in schools, hospitals, and office towers.
Smart Integration and Electrified Options
The AD8510 is a future-proof solution, easily integrating into advanced access control systems. It supports a comprehensive range of electric options, including Remote Latch Retraction (56-), Electric Dogging (58-), and Request-to-Exit (55-) monitoring. To guarantee a reliable, "plug-and-play" installation, using the QC12 Electrolynx connector on the associated hinge is the optimal choice for connecting the device's internal Molex connectors to your power source without complex wiring.
Key Product Features
- Narrow Design: Specifically optimized for aluminum frame glass doors with stiles as narrow as 2".
- Grade 1 Certified: Exceeds ANSI/BHMA A156.3 standards for superior strength and cycle life.
- Quiet & Secure: Features a 3/4" throw stainless steel bolt for silent operation and solid latching.
- Versatile Sizing: Available in four rail sizes (E, F, J, G) to accommodate door widths from 24" to 48".
- Universal Application: Ideal for single doors or double doors equipped with a mullion.
- Customizable Strikes: Comes standard with the 657 Strike; specialized strikes (649, 656) available for fire-rated or mullion setups.
Technical Specifications
| Feature | Details |
| Device Type | Narrow Stile Rim Exit Device (Exit Only) |
| Minimum Stile | 2" (51mm) |
| Latchbolt | Stainless Steel, 3/4" (19mm) Throw |
| Center Case Size | 8-5/16" x 1-1/16" |
| Centerline | 41" from finished floor (Standard) |
| Dogging | Hex key dogging standard (Non-fire rated only) |
| Mounting | Supplied with wood and machine screws; Thru bolts available |
Ordering Information & Handing
To ensure a perfect fit, Sargent rails are factory-cut to size; please provide the exact door width upon order placement. Additionally, door handing information (LHRB or RHRB) is required to ensure the device is correctly configured for your opening. For doors thicker than 1-3/4", specify the dimensions and use the 31- prefix. For high-use areas where keys are preferred for daily dogging, consider the 16- cylinder dogging option.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Sargent Exit Device Rail Length | F - 36" Wide Door or J - 42" Wide Door or G - 48" Wide Door |
| Sargent Exit Device Prefixes | 43 - Flush End Cap or 53 - Latchbolt Monitor Switch – available with 55, 56, 58, AL options) or 55 - Signal Switch in Rail or 56 - Motorized Electric Latch Retraction (Minimum door width for narrow & wide stile is 28") or 58 - Electric Dogging or 59 - Electroguard Delay Egress (Not available with 16-, 53-, 55-, 56-, 58- Options) or HC - Hurricane Code (not available with 16, 28, 63, 66 functions) or WS - Windstorm Certified |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches, 42 Inches, 48 Inches |
