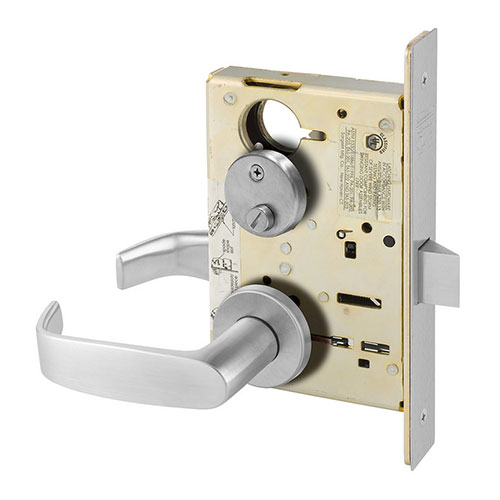

Sargent 8265 LNL Privacy Function Mortise Latchset
The Sargent 8265 LNL is a premium Grade 1 Heavy-Duty Privacy Mortise Latchset designed for high-traffic environments that demand both architectural elegance and industrial-strength durability. As a specialized model in the Sargent 8200 Series, this hardware is the industry benchmark for single-room privacy, making it the premier choice for professional office restrooms, high-end commercial dressing rooms, and private healthcare suites. The 8265 Privacy Function (ANSI F22) provides a secure, non-keyed locking solution that ensures occupant privacy while maintaining critical emergency access.
Enhanced Privacy Function (ANSI F22) with Emergency Release
The 8265 function is engineered for intuitive operation and safety. It provides a robust physical lock without the complexity of a keyed cylinder.
- Interior Thumbturn Locking: The latchbolt is operated by the lever from either side unless the interior thumbturn projects the deadbolt.
- Integrated Deadbolt Security: Features a 1" throw hardened stainless steel deadbolt for maximum resistance to forced entry.
- Emergency Access: In the event of an emergency, the deadbolt can be retracted from the exterior using a small screwdriver or emergency tool through the rose, ensuring facility staff can gain entry if needed.
- Simultaneous Retraction: Operating the inside lever retracts both the latchbolt and the deadbolt simultaneously for immediate, single-motion egress.
Architectural LNL Trim Performance
The LNL trim (L-Lever and LN-Rose) represents a sophisticated, linear design that complements modern building aesthetics while meeting the most rigorous accessibility standards.
- ADA Compliance: The L-Lever is ergonomically designed for ease of use, meeting all ADA accessibility requirements for public and private spaces.
- Extreme Mechanical Longevity: The Sargent 8200 Series is independently verified to exceed 14 million cycles—14 times the requirement for Grade 1 certification—ensuring a lifetime of trouble-free service.
- Lever Sag Prevention: High-carbon steel spring cartridges and heavy-gauge wrought steel hubs prevent lever sag, keeping the hardware perfectly horizontal even in high-use restrooms.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical strength and physical durability.
- Privacy/Bath Function (F22): Secure deadbolt locking with a thumbturn and exterior emergency release.
- Fire Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, maintaining the integrity of fire-rated walls and corridors.
- Stainless Steel Latchbolt: Features a 3/4" throw anti-friction latchbolt for quiet, smooth operation.
- Corrosion Resistance: The 12-gauge wrought steel lock case is zinc dichromate plated to withstand humid environments like bathrooms and locker rooms.
- Universal Fit: The non-handed chassis is easily field-reversible to accommodate any door swing.
Technical Specifications
| Feature | Details |
| Function | 65 Privacy / Bedroom / Bath (ANSI F22) |
| Series | 8200 Heavy-Duty Mortise |
| Lever Style | LNL (L-Lever with LN-Rose) |
| Deadbolt | 1" Throw Hardened Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Thumbturn | Standard 130W Thumbturn Included |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8265 LNL is designed for precision fitment in standard commercial door preparations. While the lock is field reversible, specifying the hand of your door ensures the unit arrives correctly configured for your opening.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | Sargent |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | LNL |
| Series | Sargent - 8200 Series |
| Occupancy Indicator | No |
