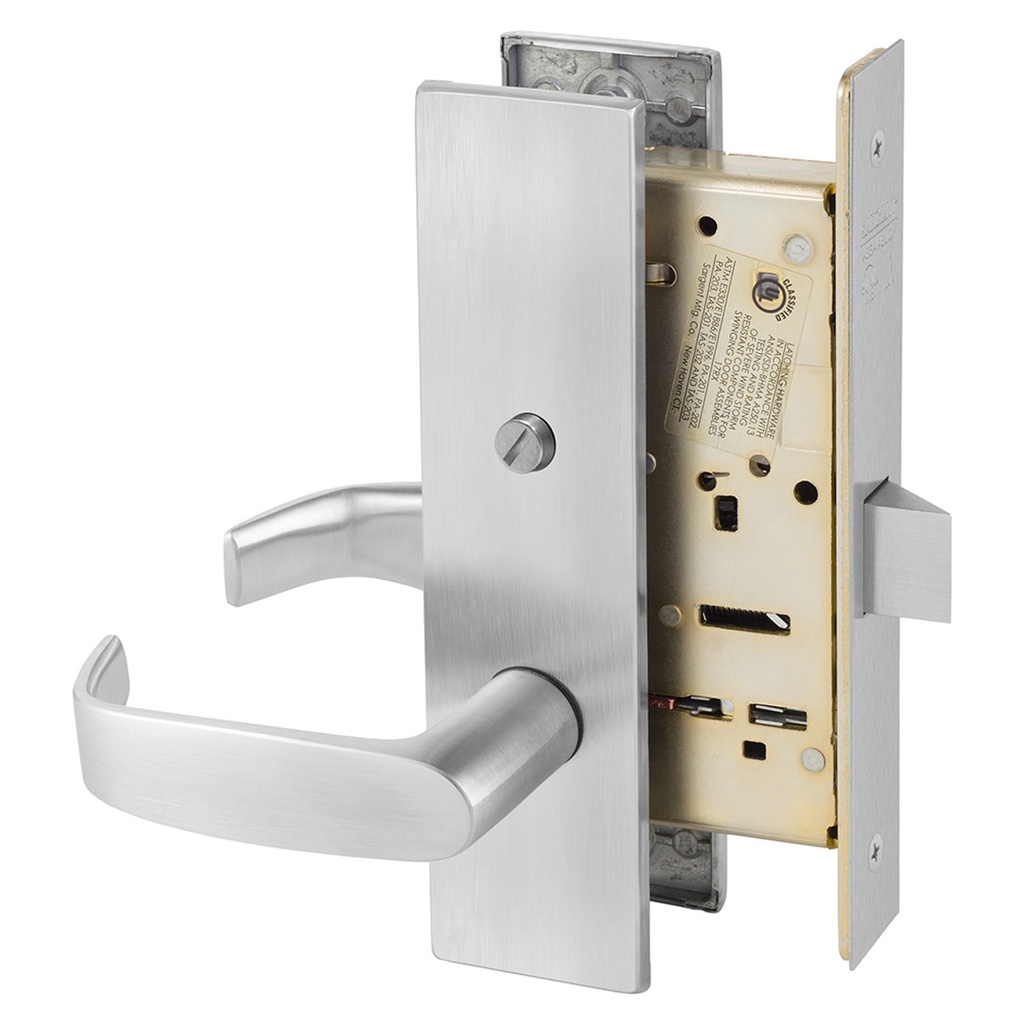

Sargent 8265 LE1L Privacy Function Mortise Latchset
The Sargent 8265 LE1L is a premium Grade 1 Heavy-Duty Mortise Latchset specifically designed for high-traffic environments that demand both ultimate durability and reliable privacy. As a core offering in the Sargent 8200 Series, it is widely recognized by architects and facility managers as the "strongest lock on the block," far exceeding ANSI/BHMA A156.13 standards for cycle life and structural integrity. The 8265 Privacy Function (ANSI F22) is the industry standard for single-occupant restrooms, dressing rooms, and private bedrooms in hospitals, schools, and government facilities.
Reliable Privacy & Life Safety (ANSI F22)
The 8265 function is engineered for intuitive use, providing a clear "locked" or "unlocked" state to ensure user comfort and safety.
- Interior Thumbturn Control: The exterior lever is locked or unlocked by a thumbturn on the interior escutcheon.
- Emergency Override: For safety, an emergency release on the exterior escutcheon allows for unlocking via a coin or emergency key, ensuring access in the event of a medical emergency.
- Auto-Unlock Logic: To prevent accidental lockouts, closing the door automatically unlocks the outside lever, returning the latchset to its default passage state.
- Instant Exit: The inside lever always allows for immediate exit, retracting the latchbolt and simultaneously unlocking the outside trim to meet all NFPA 101 Life Safety and fire codes.
Heavy-Duty LE1L Escutcheon Trim
The LE1L trim configuration provides a sleek, modern architectural aesthetic while offering superior door protection and mechanical support.
- LE1 Escutcheon Plate: This heavy-duty, full-height linear escutcheon reinforces the door face and protects the internal components and thumbturn from tampering or vandalism.
- L Lever Design: The L Lever features a clean, linear profile that is fully ADA compliant, allowing for easy operation without the need for tight grasping or twisting of the wrist.
- Verified Endurance: Tested to exceed 14 million cycles, this latchset is built to survive the entire lifecycle of a high-use facility, reducing long-term maintenance costs.
- Anti-Sag Engineering: Heavy-duty wrought steel hubs and high-carbon steel spring cartridges ensure the L Lever stays perfectly horizontal, eliminating "lever sag" even after decades of use.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical performance, physical security, and operational grade.
- Privacy/Bath Function (F22): Thumbturn locking for privacy with an integrated emergency release for safety.
- Fire-Rated Integrity: UL/cUL Listed for use on 3-hour fire-rated doors, maintaining a safe fire barrier in corridor applications.
- Stainless Steel Latchbolt: Features a 3/4" throw anti-friction latchbolt for smooth, quiet operation and consistent engagement.
- Vandal-Resistant Chassis: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
- Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing.
Technical Specifications
| Feature | Details |
| Function | 65 Privacy / Bedroom / Bath (ANSI F22) |
| Series | 8200 Heavy-Duty Mortise |
| Trim Style | LE1L (LE1 Escutcheon / L Lever) |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Case Material | 12-Gauge Wrought Steel |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8265 LE1L is designed for rapid installation into standard mortise door preparations. The modular design of the 8200 series lock body allows for function changes in the field should the needs of the room evolve. This unit is often paired with an occupancy indicator (available separately) to provide a clear visual signal when the room is in use.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | Sargent |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | LE1L |
| Series | Sargent - 8200 Series |
| Occupancy Indicator | No |
