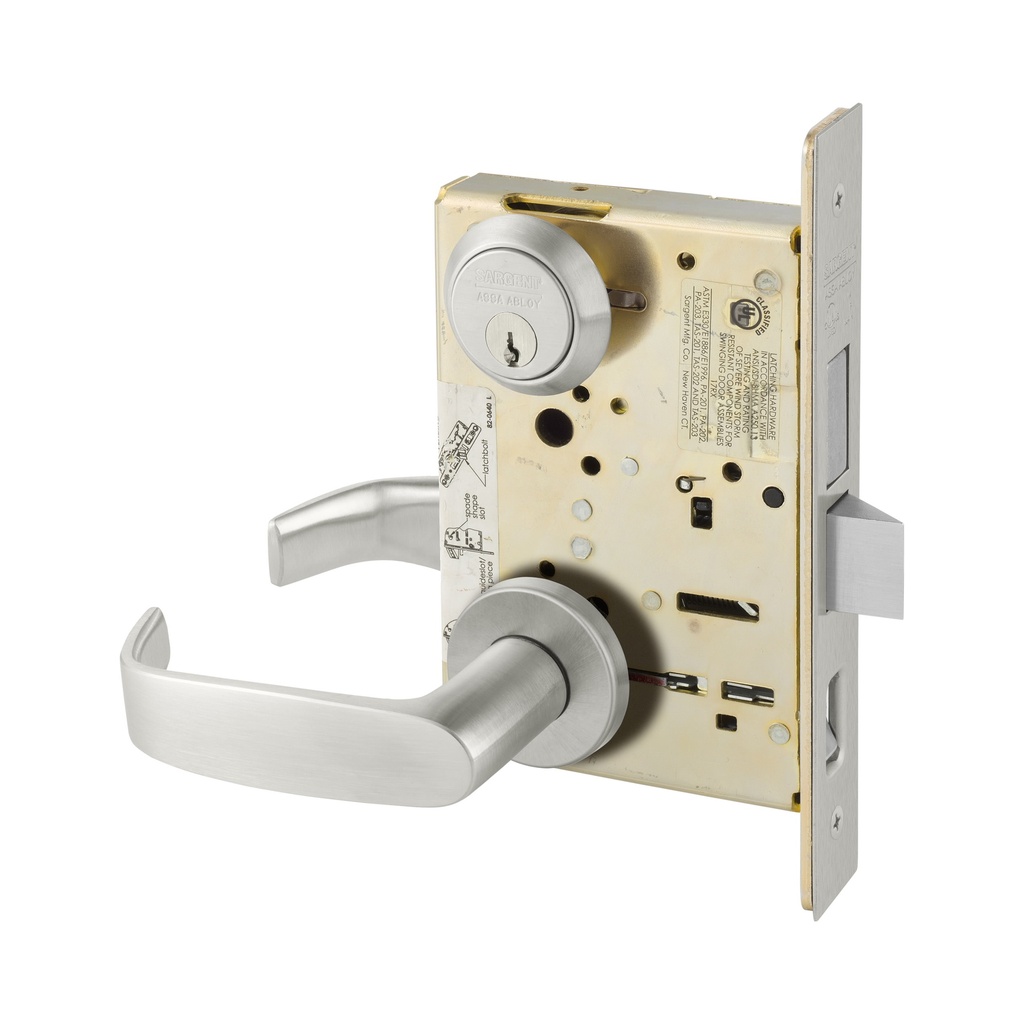

Sargent 8245 LNL Mortise Lockset – Dwelling & Dormitory Entrance Function

The Sargent 8245 LNL is a heavy-duty commercial mortise lockset engineered for dwelling and dormitory entrance applications — one of the most demanding use cases in residential, student housing, multi-family, and institutional facilities. Built on Sargent's industry-trusted 8200 Series mortise lock platform, the 8245 delivers the security, reliability, and finish-depth expected on high-traffic interior and exterior corridor doors.

The LNL trim designation indicates a lever-on-lever escutcheon configuration with a full-length trim plate, providing a clean, institutional appearance that coordinates across a wide range of door preps and architectural styles. The LA keyway (referenced in the product name) is a Sargent proprietary keyway compatible with Sargent's standard 40 Series mortise cylinder system, supporting 6-pin keying, master keying, and key control options up to Sargent's Degree DG1 patented keyway level.

Dwelling & Dormitory Entrance Function — What It Means

The ANSI/BHMA Dwelling/Dormitory Entrance function (commonly designated F82 or equivalent per BHMA A156.13) is designed for residential-style entry control in multi-unit and institutional environments. Typical behavior:

• Outside lever is key-controlled — locked by default; key retracts the latch bolt from outside
• Inside lever is always free — occupant can always egress without a key
• A turn button or auxiliary control on the inside can lock or unlock the outside lever
• Meets egress requirements for dormitory corridors, apartment entries, and similar occupied spaces

This function is widely specified for college dormitories, university housing, military barracks, senior living facilities, and multi-family residential buildings where individual unit security and free egress are both required.

Key Benefits

• Sargent 8200 Series platform — a proven, long-running mortise lock body recognized by specifiers and installers for consistent performance and parts availability
• LNL trim — full-length escutcheon lever trim for a finished, institutional appearance on wood and hollow metal doors
• LA keyway cylinder — compatible with Sargent 40 Series 6-pin mortise cylinders; supports master keying and key control upgrades
• Mortise construction — internal dead latch, anti-friction latch bolt, and solid brass case components for Grade 1 commercial durability
• Wide finish availability — Sargent 8200 Series supports a broad range of BHMA standard finishes to match facility hardware schedules

Typical Applications

• College and university dormitory room entry doors
• Military barracks and government residential housing
• Apartment and multi-family residential unit entry doors
• Senior living and assisted living room entries
• Hotel and extended-stay suite entry doors (non-hotel-function configuration)
• Institutional housing and transitional residential facilities

Technical Details

Note: Finish, handing, and cylinder options for the 8245 LNL are configured at time of order. Contact us to confirm your specific finish code, backset, and keying requirements before purchase. Comparable mortise locksets in preferred lines such as Corbin Russwin and PDQ are also available — request a quote for alternatives.

The Sargent 8245 LNL is an elite Grade 1 Mortise Lockset specifically engineered for residential-style security in high-traffic institutional settings. Combining the rugged durability of the Sargent 8200 Series with a sophisticated double-cylinder locking mechanism, this hardware is the industry standard for university dormitories, military barracks, and multi-family dwelling units. The 8245 Dwelling Entrance Function (ANSI F12) provides a high level of physical protection by integrating a heavy-duty deadbolt with keyed control from both the interior and exterior.

High-Security Dwelling & Dormitory Function (ANSI F12)

The 8245 function is designed for environments where access control and privacy must be balanced with extreme resistance to forced entry.

• Double Cylinder Deadbolt: The 1" throw hardened stainless steel deadbolt is projected and retracted by a key from either the outside or the inside.
• Automatic Exterior Locking: When the deadbolt is projected, the outside lever is automatically locked, preventing unauthorized entry even if the latch is bypassed.
• Single-Motion Egress: For critical life safety, the inside lever retracts both the latchbolt and the deadbolt simultaneously. This ensures that occupants can exit the room instantly in an emergency, regardless of whether the door is double-keyed.
• Anti-Friction Latch: The 3/4" throw latchbolt ensures quiet, smooth operation and reduces wear on the strike plate over time.


The LNL Trim: Modern Performance

The LNL design (L-Lever and LN-Rose) offers a clean, linear architectural aesthetic that is as functional as it is attractive.

• ADA & Accessibility: The L-Lever is fully ADA compliant, designed for easy operation without requiring tight grasping or twisting.

• Vandal Resistance: Built on a 12-gauge heavy-duty wrought steel lock case, this unit is UL-verified to exceed 14 million cycles—providing a service life up to 14 times longer than standard Grade 1 locks.

• Lever Sag Prevention: High-carbon steel spring cartridges ensure the levers remain perfectly horizontal, maintaining the door's professional appearance for decades.

Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest rating for operational strength and security against physical attack.
• Dwelling Entrance Function (F12): Double cylinder deadbolt security with a life-safety "single-motion" exit feature.
• LA Keyway Standard: Ships with the popular Sargent LA Keyway 6-pin brass cylinders, compatible with most existing master key systems.
• Fire Rated Integrity: UL/cUL Listed for use on 3-hour fire-rated doors, essential for dormitory corridor safety.

• Field Reversible: The non-handed chassis allows for easy adjustment to any door swing during installation.
• Corrosion Protection: The lock case is treated with a zinc dichromate finish to resist environmental degradation in various climates.

Technical Specifications

Ordering & Installation Information

The Sargent 8245 LNL is engineered for precision fitment. For doors thicker than 1-3/4", please specify the door thickness at the time of order to ensure correct cylinder and spindle sizing. This model is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
