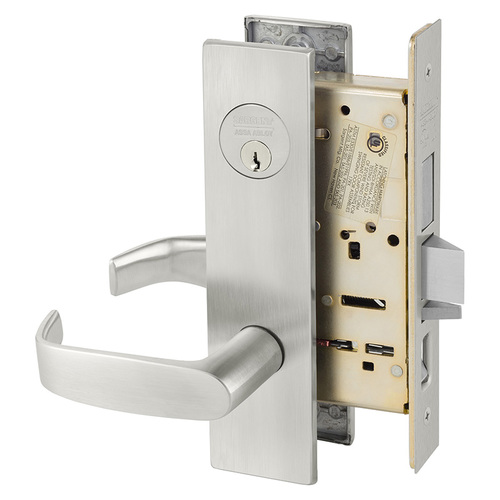

Sargent 8243 LE1L Apartment/Corridor Mortise Lockset - LA Keyway
The Sargent 8243 LE1L is a top-tier Grade 1 Heavy-Duty Mortise Lockset specifically designed for multi-family residential housing, high-end apartments, and executive corridor suites. As a cornerstone of the Sargent 8200 Series, it is engineered to provide an impenetrable level of security while maintaining the sleek architectural lines required for modern interiors. The 8243 Apartment/Corridor Function (ANSI F20) combines a high-strength deadbolt with a versatile toggle locking mechanism, offering residents total control over their privacy and security.
Versatile Apartment & Corridor Function (ANSI F20)
The 8243 function is purpose-built for residential life-safety and security. It allows for a seamless transition between "passage" and "locked" modes via the face-mounted stop works.
- Deadbolt Security: Features a 1" throw hardened stainless steel deadbolt that is projected or retracted by a key from the exterior or a thumbturn from the interior.
- Stop Works (Toggle) Control: The outside lever is made rigid (locked) or operative (unlocked) by the stop works toggle on the lock face. This allows residents to keep the door unlocked during the day for easy access and locked at night for security.
- Automatic Deadbolt Retraction: For ease of use, the deadbolt is retracted by the interior lever, providing immediate exit without needing to manually turn the thumbturn first.
- Single-Motion Egress: In an emergency, the inside lever retracts both the latchbolt and the deadbolt simultaneously, meeting all ADA and Life Safety codes.
Heavy-Duty LE1L Escutcheon Trim
The LE1L trim configuration provides an elegant, linear aesthetic while offering maximum physical protection for the lock chassis and the door.
- LE1 Escutcheon Plate: This full-height linear escutcheon reinforces the door and protects the Sargent LA Keyway cylinder and thumbturn from tampering, forced rotation, or vandalism.
- L Lever Design: The L Lever features a modern, clean profile that is fully ADA compliant, ensuring effortless operation for all residents regardless of physical ability.
- Extreme Mechanical Durability: Independently verified to exceed 14 million cycles—14 times the requirement for Grade 1 certification—ensuring a lifetime of trouble-free performance.
- Anti-Sag Technology: Equipped with high-carbon steel spring cartridges to ensure the L Lever remains perfectly level, preventing "lever sag" and maintaining a professional appearance.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical strength and operational longevity.
- Apartment/Corridor Function (F20): Features a face-mounted toggle and 1" deadbolt for multi-layered security.
- Sargent LA Keyway: Ships with a 6-pin brass cylinder in the popular LA Keyway, allowing for easy integration into existing master key systems.
- Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor and apartment safety.
- Stainless Steel Latchbolt: 3/4" throw anti-friction latchbolt ensures smooth operation and quiet closing.
- Universal Fit: The non-handed chassis is easily field-reversible to accommodate any door swing without opening the lock case.
Technical Specifications
| Feature | Details |
| Function | 43 Apartment / Corridor (ANSI F20) |
| Series | 8200 Heavy-Duty Mortise |
| Trim Style | LE1L (LE1 Escutcheon / L Lever) |
| Deadbolt | 1" Throw Hardened Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Cylinder | 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8243 LE1L is designed for precision fitment in standard commercial door preparations. The unit is surface-mounted via through-bolts for maximum stability. This lockset is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F20 - Apartment |
| Trim Design | LE1L |
| Series | Sargent - 8200 Series |
