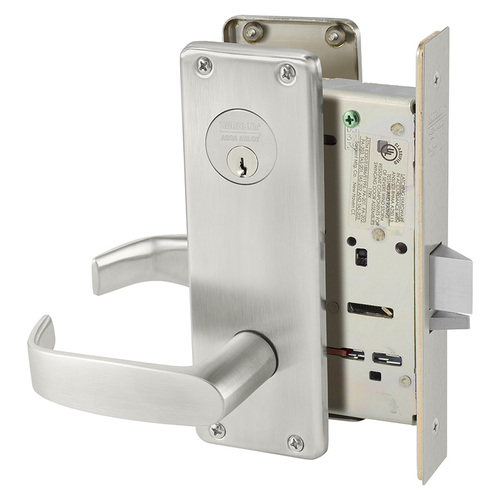

Sargent 8237 WTL Classroom Mortise Lockset — Grade 1 Commercial | LA Keyway

The Sargent 8237 WTL is a heavy-duty commercial mortise lockset built on Sargent's industry-proven 8200 Series platform. Function 37 is the ANSI F05 Classroom function: the outside lever is locked or unlocked by key only, while the inside lever always freely retracts the latch — making it the standard choice for K–12 classrooms, university lecture halls, and institutional spaces where staff must be able to lock a door from the corridor without entering the room. The WTL designation specifies the lever trim style paired with this lockbody. The standard keyway is the LA keyway, Sargent's widely specified conventional keyway, compatible with existing LA-keyed masterkey systems throughout educational and commercial facilities.

Built to ANSI/BHMA A156.13 Series 1000, Operational Grade 1 and Security Grade 1, the 8237 WTL delivers institutional-grade durability rated for high-cycle, high-frequency use. Sargent's 8200 Series has achieved 16 million cycles in UL cycle testing — sixteen times the ANSI Grade 1 minimum — making it a strong specification choice for heavily trafficked school corridors and public buildings.

Key Features & Benefits

• Classroom Lockdown Function (ANSI F05): Outside lever locks and unlocks by key from the corridor; inside lever remains free at all times for unrestricted egress — a critical life-safety requirement on educational openings.
• ADA-Compliant Lever Trim: Lever-style trim meets ANSI A117.1 accessibility requirements — essential for code-compliant educational and commercial installations.
• Grade 1 Certified: Meets ANSI/BHMA A156.13 Operational Grade 1 and Security Grade 1 for the most demanding institutional environments.
• Heavy-Duty Mortise Lockbody: 12-gauge wrought steel case, zinc dichromate plated; cold-forged steel hub; one-piece anti-friction stainless steel latchbolt (3/4" projection); stainless steel auxiliary deadlatch for anti-credit-card security.
• LA Keyway Standard: Ships with Sargent conventional LA keyway cylinder — integrates into existing LA masterkey systems without cylinder replacement.
• UL/cUL Fire-Rated: Listed for use on fire-rated door assemblies per UL 10C Positive Pressure Fire Test, up to 3-hour assemblies on qualifying openings.
• Field-Adjustable Latchbolt Front: Outside front is field-adjustable from flat to 1/8" bevel in 2" to match standard 1-3/4" beveled door edges without special ordering.
• Standard Mortise Door Prep: Fits ANSI/SDI A250.14 modified per template 7057 mortise cutout — 8" tall × 1-1/4" wide — the industry-standard prep for commercial mortise locksets.

Classroom Function — Buyer Summary

ANSI F05 / Sargent Classroom function — Classroom: The outside lever is normally locked and can only be unlocked or re-locked by a key inserted in the outside cylinder. The inside lever always retracts the latch freely, ensuring occupant egress is never impeded. This function is the standard for classroom doors, enabling a teacher or administrator to lock the door from the hallway in emergency or lockdown scenarios without needing to be inside the room.

Typical Applications

• K–12 classroom and school corridor doors
• University and college lecture halls and seminar rooms
• Government and institutional office doors
• Commercial office suites requiring keyed corridor lockdown
• Healthcare ancillary rooms requiring staff-controlled access

Technical Details

The Sargent 8237 WTL is a premier Grade 1 Heavy-Duty Mortise Lockset specifically engineered for the high-frequency demands of K-12 schools, universities, and administrative offices. As a flagship model in the Sargent 8200 Series, it is recognized as the "strongest lock on the block," far exceeding ANSI/BHMA A156.13 standards for physical security and mechanical longevity. The 8237 Classroom Function (ANSI F05) is a critical security component, allowing faculty to control exterior access while ensuring students and staff always have an immediate, safe path of egress.

Critical Classroom Security (ANSI F05)

The 8237 function is designed to provide robust perimeter control, ensuring that authority over the room's locking status remains strictly with keyholders.

• Key-Controlled Exterior: The outside lever is locked or unlocked by a physical key using the standard Sargent LA Keyway. When locked, the outside lever remains rigid to prevent unauthorized entry.

• Constant Life-Safety Egress: Regardless of whether the outside is locked, the inside lever is always operative. This provides a fail-safe exit during emergencies, fully complying with NFPA 101 Life Safety and ADA accessibility codes.

• Deadlocking Latchbolt: Equipped with a stainless steel auxiliary deadlatch that prevents "shimming" or unauthorized manipulation of the latch when the door is closed.

• Low-Force Operation: Requires only 30° of lever rotation to retract the latchbolt, reducing mechanical wear and making it easy for all users to operate.


Professional WTL Escutcheon Trim

The WTL trim configuration (WT Escutcheon with L Lever) delivers a sophisticated linear architectural aesthetic backed by extreme mechanical reinforcement.

• WT Escutcheon Plate: This heavy-duty wrought metal escutcheon provides a robust mounting surface that reinforces the door face and protects the LA Keyway cylinder from tampering, physical abuse, or vandalism.

• L Lever Design: The L Lever features a clean, modern profile that is fully ADA compliant (consult local authorities) (consult local authorities). Its ergonomic shape allows for effortless operation without requiring a tight grip, pinch, or wrist twist.

• Exceeds 16 Million Cycles: Independently verified to withstand over 16 times the cycle requirements for Grade 1 certification, ensuring this hardware built for long service life.

• Anti-Sag Technology: High-carbon steel spring cartridges and cold-forged steel hubs ensure the L Lever remains perfectly horizontal, maintaining a professional appearance even after decades of high-traffic use.

Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical performance, physical security, and operational longevity.
• Classroom Function (F05): Key-controlled exterior with a fail-safe free-egress interior.

• Sargent LA Keyway: Ships with a 6-pin brass cylinder in the popular LA Keyway, allowing for seamless integration into existing master key systems.

• Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, a mandatory requirement for classroom and corridor safety.

• Vandal-Resistant Chassis: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
• Field-Reversible Lockbody: The non-handed chassis is easily field-reversible to accommodate any door swing without opening the lock case.

Technical Specifications

Ordering & Installation Information

The Sargent 8237 WTL is designed for efficient installation into standard mortise door preparations. The through-bolted lever trim ensures the lock remains securely fastened even under heavy abuse. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
