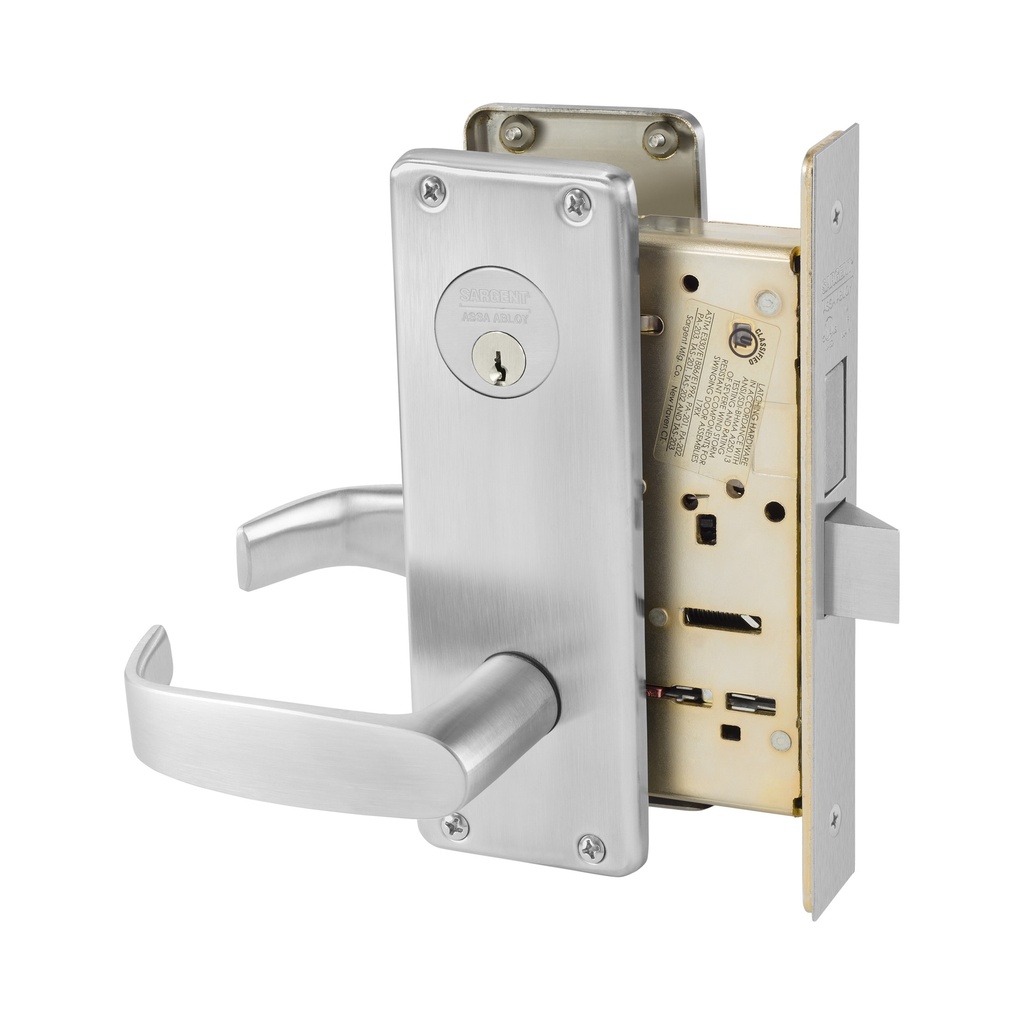

Sargent 8225 WTL Dormitory Function Mortise Lockset — LA Keyway

The Sargent 8225 WTL is a heavy-duty commercial mortise lockset configured for the Dormitory / Exit function (ANSI F13), finished with WTL lever trim and keyed to the LA keyway. Engineered for institutional and multi-unit residential applications, the 8225 delivers the security and operational reliability demanded by dormitories, apartment corridors, university housing, and similar facilities where controlled after-hours access is essential.

What Is the Dormitory / Exit Function?

The Dormitory function (Sargent Function 25 / ANSI F13) is purpose-built for doors where occupants need free egress at all times while outside access must be controlled. Here is how it operates:

• A key or thumb turn on the inside projects or retracts the deadbolt.
• Levers on either side always retract the latch bolt — occupants are never trapped inside.
• When the deadbolt is projected, the outside lever is locked; a valid key is required for entry.
• When an occupant pushes the inside lever with the deadbolt projected, the lever simultaneously retracts both the latch bolt and the deadbolt, allowing exit while automatically securing the door behind them.

This behavior makes the 8225 an ideal solution for student housing, multi-family corridor doors, and any opening where life-safety egress and after-hours security must coexist.

Key Benefits

• Grade 1 commercial mortise construction — designed for high-cycle, heavy-traffic openings
• Simultaneous deadbolt and latch retraction from inside — supports code-compliant egress without compromising perimeter security
• WTL lever trim — ADA-compliant lever design suitable for accessible openings
• LA keyway — integrates into Sargent master key systems for facility-wide key control
• Sargent 8200 series platform — a field-proven mortise lock body with broad compatibility for trim, cylinder, and finish options
• Compatible with fire-rated door assemblies where listed; consult the Authority Having Jurisdiction (AHJ) for project-specific requirements

Typical Applications

• University and college dormitory room doors
• Apartment and multi-family residential corridor doors
• Student housing and assisted-living facilities
• Any institutional opening requiring controlled exterior access with free interior egress

Technical Details

Note: Finish, handing, and additional options (such as cylinder length or rose style) should be confirmed at time of order. Contact our technical team for master keying, keyed-alike, or large-format interchangeable core (LFIC) requirements.

The Sargent 8225 WTL is an industrial-grade ANSI/BHMA Grade 1 Mortise Lockset specifically engineered for the high-frequency demands of university housing, military barracks, and multi-family residential facilities. As a part of the legendary Sargent 8200 Series, it is widely recognized as the industry’s most durable mortise lock, far exceeding ANSI/BHMA A156.13 standards for cycle life and physical security. The 8225 Dormitory or Exit Function (ANSI F13) provides a comprehensive locking solution that combines a heavy-duty deadbolt with automatic interior unlocking, ensuring absolute occupant safety and intuitive operation.

Advanced Dormitory & Exit Function (ANSI F13)

The 8225 function is designed to provide residents with a secure "home-base" environment while meeting the most stringent life-safety and fire codes for rapid egress.

• Deadbolt Privacy & Security: A 1" throw hardened stainless steel deadbolt is projected or retracted by a key from the exterior or a thumbturn from the interior.

• Intelligent Exterior Locking: When the deadbolt is projected, the exterior lever is automatically locked, preventing unauthorized entry.

• Keyed Latch & Bolt Retraction: From the outside, a physical key retracts both the latchbolt and the deadbolt simultaneously, providing a smooth entry for authorized users.

• Single-Motion Life-Safety Egress: Regardless of the deadbolt's position, the inside lever retracts both the latchbolt and the deadbolt simultaneously. This ensures occupants can exit the room instantly with a single motion, fulfilling NFPA 101 and ADA requirements.


Heavy-Duty WTL Escutcheon Trim

The WTL trim configuration (WT Escutcheon with L Lever) delivers a sophisticated linear architectural aesthetic backed by extreme mechanical reinforcement.

• WT Escutcheon Plate: This heavy-duty wrought metal escutcheon reinforces the door face and protects the Sargent LA Keyway cylinder and thumbturn from tampering or vandalism.
• L Lever Design: The L Lever features a clean, modern profile that is fully ADA compliant, requiring only 30° of rotation for latch retraction—ideal for users with limited mobility.

• Exceeds 14 Million Cycles: Independently verified to withstand 14 times the cycle requirements for Grade 1 certification, ensuring this hardware will outlast the building it is installed in.

• Anti-Sag Engineering: High-carbon steel spring cartridges and cold-forged steel hubs ensure the L Lever remains perfectly horizontal, maintaining a professional look even after decades of high-traffic use.


Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical performance, physical security, and operational longevity.
• Dormitory/Exit Function (F13): Integrated deadbolt for privacy and single-motion egress for life safety.

• Sargent LA Keyway: Ships with a 6-pin brass cylinder in the standard LA Keyway, allowing for seamless integration into existing master key systems.

• Fire-Rated Integrity: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor-facing residential units.

• Vandal-Resistant Chassis: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
• Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing.

Technical Specifications

Ordering & Installation Information

The Sargent 8225 WTL is designed for efficient installation into standard mortise door preparations. The through-bolted lever trim ensures the lock remains securely fastened even under heavy abuse. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
