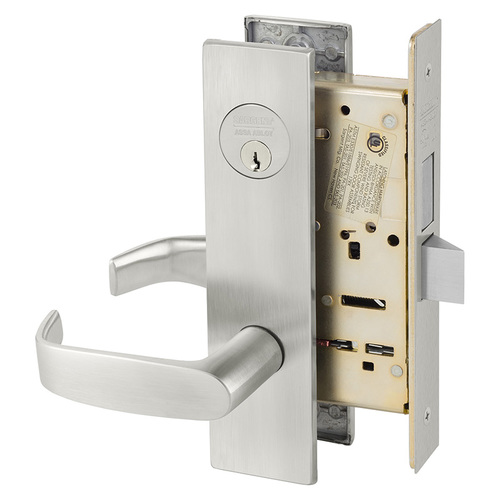

Sargent 8225 LE1L Dormitory Function Mortise Lockset - LA Keyway
The Sargent 8225 LE1L is an elite-grade security solution engineered for the high-intensity demands of university dormitories, military barracks, and multi-family residential facilities. As a cornerstone of the Sargent 8200 Series, it is widely considered the industry benchmark for mechanical endurance and forced-entry resistance, far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards. The 8225 Dormitory or Exit Function (ANSI F13) provides a sophisticated balance of privacy and life-safety, integrating a heavy-duty deadbolt with a "single-motion" egress feature to ensure occupants remain safe and secure.
Professional Dormitory & Exit Security (ANSI F13)
The 8225 function is designed to provide residents with total control over their personal space while maintaining strict adherence to building safety codes.
- Integrated Deadbolt Protection: Features a 1" throw hardened stainless steel deadbolt projected or retracted by a key from the outside or an interior thumbturn.
- Intelligent Locking Logic: When the deadbolt is projected, the exterior lever is automatically locked. Retracting the deadbolt via key or thumbturn unlocks the exterior trim for passage.
- Single-Motion Life Safety Egress: Regardless of the deadbolt's position, operating the inside lever retracts both the latchbolt and the deadbolt simultaneously. This ensures an immediate, unhindered exit during emergencies.
- Deadlocking Latch: Includes a stainless steel auxiliary deadlatch to prevent "shimming" or unauthorized manipulation of the latchbolt.
Heavy-Duty LE1L Escutcheon Trim
The LE1L trim is designed for maximum door protection and a clean, linear architectural aesthetic.
- LE1 Escutcheon Plate: This full-height linear escutcheon provides a robust mounting surface that reinforces the door and protects the internal cylinder and lock components from tampering.
- L Lever Design: The L Lever provides a sleek, modern profile that is fully ADA compliant, allowing for effortless operation without requiring a tight grip or wrist twisting.
- Vandal-Resistant Engineering: The through-bolted trim design ensures the escutcheon remains securely fastened even in high-abuse "student-proof" environments.
- Anti-Sag Technology: High-carbon steel spring cartridges prevent the L lever from sagging, keeping the hardware perfectly horizontal for the life of the opening.
Key Product Features
- ANSI/BHMA Grade 1 Certified: Independently verified to exceed 14 million cycles, providing 14 times the standard service life.
- Dormitory/Exit Function (F13): Combined latch and deadbolt security with a safe-exit feature.
- Sargent LA Keyway: Ships with a 6-pin brass cylinder in the standard LA Keyway, compatible with most existing Sargent master key systems.
- Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor and dormitory safety.
- Corrosion Resistance: The 12-gauge heavy-duty wrought steel lock case is zinc dichromate plated for long-term structural integrity.
- Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing.
Technical Specifications
| Feature | Details |
| Function | 25 Dormitory / Exit (ANSI F13) |
| Series | 8200 Heavy-Duty Mortise |
| Trim Style | LE1L (LE1 Escutcheon / L Lever) |
| Deadbolt | 1" Throw Hardened Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Cylinder | 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8225 LE1L is designed for "plug-and-play" installation into standard mortise door preps. This unit is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F12 - Dormitory |
| Trim Design | LE1L |
| Series | Sargent - 8200 Series |
