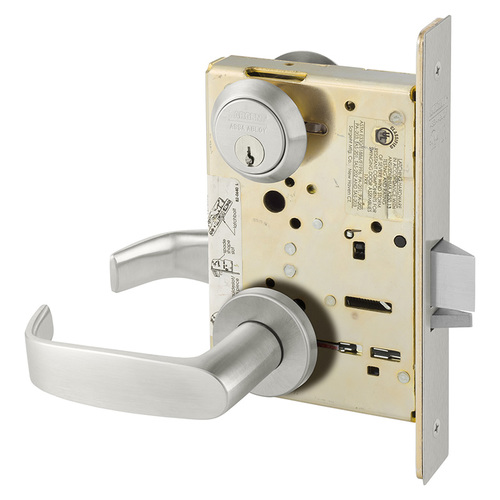

Sargent 8216 LNL Apartment/ Exit Mortise Lockset - LA Keyway
The Sargent 8216 LNL is a high-performance Grade 1 Mortise Lockset designed for elite security and versatile management of multi-family housing, apartment corridor doors, and public restrooms. As a specialized model in the Sargent 8200 Series, the 8216 Apartment, Exit, or Public Toilet Function (ANSI F09) provides a unique double-cylinder configuration without a deadbolt. This ensures that facility managers can strictly control access from both sides of the door while maintaining the extreme physical durability that has made the 8200 series the industry benchmark for mortise hardware.
Specialized Apartment & Exit Function (ANSI F09)
The 8216 function is engineered for high-security environments where the locking status of the exterior trim must be controlled by a key from the interior.
- Dual Cylinder Control: The exterior key retracts the latchbolt for entry. The interior key is used to lock or unlock the exterior lever, allowing residents or staff to secure the door from the inside without a thumbturn.
- Life Safety Egress: Regardless of the locking status, the interior lever always allows for constant free egress, ensuring occupants can exit the room immediately in an emergency.
- Deadlocking Protection: Features an auxiliary deadlatch that prevents "shimming" or "loiding" the main latchbolt, providing an additional layer of defense against forced entry.
Architectural Excellence: The LNL Trim Design
The LNL trim combines the ergonomic L-Lever with the contemporary LN-Rose, providing a sleek, professional look that stands up to the rigors of institutional use.
- ADA Compliance: The linear lever design is fully accessible, making it suitable for all residential and commercial applications.
- Extreme Durability: Independently verified to exceed 14 million cycles—14 times the requirement for Grade 1 certification—this lockset offers the lowest total cost of ownership over the building's lifespan.
- Superior Spring Cartridges: Equipped with high-carbon steel spring cartridges that prevent lever sag, keeping your doors looking level and well-maintained even after millions of operations.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The highest rating for operational strength and security against vandalism.
- Apartment/Exit Function (F09): Key outside retracts latch; key inside locks/unlocks outside trim.
- LA Keyway Integration: Includes the popular Sargent LA Keyway 6-pin brass cylinder, allowing for easy integration into existing master key systems.
- Fire Rated Security: UL/cUL Listed for use on 3-hour fire-rated doors, ensuring full compliance with building codes.
- Anti-Friction Latchbolt: Features a 3/4" throw stainless steel latchbolt for quiet operation and long-term mechanical reliability.
- Field Reversible: The 12-gauge heavy-duty wrought steel lock case is easily field-reversible to accommodate any door handing.
Technical Specifications
| Feature | Details |
| Function | 16 Apartment / Exit / Public Toilet (ANSI F09) |
| Series | 8200 Heavy-Duty Mortise |
| Lever Style | LNL (L-Lever with LN-Rose) |
| Cylinder | Double 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Faceplate | 8" x 1-1/4" (ANSI Standard A156.115) |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8216 LNL is designed for high-end facility integration. For doors thicker than 1-3/4", please specify the door thickness at the time of order. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, ensuring your facility remains secure against unauthorized key duplication.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F20 - Apartment |
| Trim Design | LNL |
| Series | Sargent - 8200 Series |
