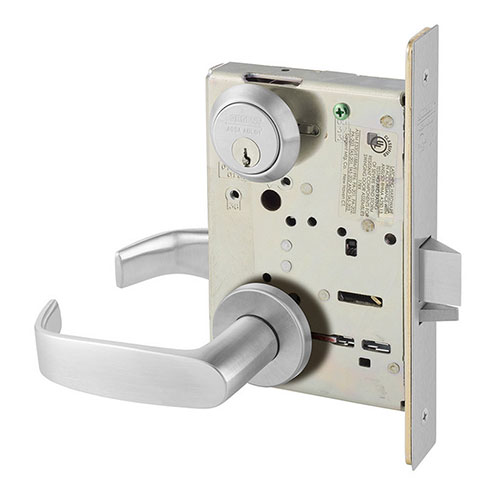

Sargent 8204 LNL Storeroom Mortise Lockset — Commercial Grade, LA Keyway

The Sargent 8204 LNL is a heavy-duty, commercial-grade storeroom function mortise lockset engineered for demanding institutional, government, healthcare, and education applications. Built on Sargent's proven 8200 Series mortise lock platform, the 8204 delivers reliable, key-controlled access control where security and long-term serviceability are non-negotiable. The LNL trim designation indicates a lever-on-lever configuration, and the LA keyway provides a standard Sargent keyway for straightforward master keying and key system integration.

Storeroom Function — What It Means for Your Application

The Storeroom function (ANSI/BHMA function code F86) keeps the outside lever always locked — entry requires a key at all times. The inside lever is always free for immediate egress. This makes the 8204 the correct specification for server rooms, pharmacies, storage areas, supply closets, IT closets, secure offices, and any space where unrestricted exterior access must be prevented at all times. Unlike an office or classroom function, there is no toggle or thumbturn that can inadvertently leave the door unlocked.

Key Benefits

• Always-locked outside lever — no risk of an occupant leaving the space unsecured
• Free egress from inside — inside lever always operable, supporting life-safety code compliance
• Sargent 8200 Series mortise body — heavy-duty commercial construction with a proven, parts-friendly platform
• LNL lever trim — cleanly designed lever-on-lever rose trim compatible with Sargent's broad trim catalog
• LA keyway — integrates into existing Sargent LA keyway master key systems without additional cylinder changes
• Master keying ready — 40 Series mortise cylinder accepts Sargent 6-pin or 7-pin bitting for complex keying hierarchies
• Compatible with custom push plates — Rockwood stainless steel push plates can be ordered to the LNL prep when cosmetic or surface coverage upgrades are needed

Typical Applications

• Server rooms and IT infrastructure spaces
• Hospital and healthcare pharmacies, medication storage, and supply rooms
• Government and federal facility secure storage
• University and K–12 school storage and equipment rooms
• Office building file rooms and records storage
• Retail back-of-house and cash-handling rooms

Specification & Compatibility Notes

The Sargent 8200 Series mortise lock body accepts the standard Sargent 40 Series mortise cylinder (solid brass, 1-5/32" diameter, 6-pin standard, 7-pin available on size 42 and larger). Cylinder length selection depends on door thickness and trim prep. The lock body is compatible with Sargent electrified variants (see the 8271 series) for facilities that may require future conversion to electric access control without replacing the entire lockset. When specifying for fire-rated openings, confirm that the selected assembly carries the required UL fire label and complies with NFPA 80.

Technical Details

The Sargent 8204 LNL is a premier Grade 1 Mortise Lockset engineered for high-security commercial, institutional, and industrial applications. As a cornerstone of the Sargent 8200 Series, this lockset is designed to provide maximum resistance against physical abuse while offering the legendary reliability of a heavy-duty mortise chassis. The 8204 Storeroom Function (ANSI F07) is the industry standard for securing mechanical rooms, IT closets, and perimeter doors where unauthorized entry is strictly prohibited, but immediate exit is required.

High-Security Storeroom Function (ANSI F07)

The 8204 function is purpose-built for total access control. The outside lever is always rigid and locked, ensuring the door cannot be left accidentally unsecured.

• Keyed Entry Only: Entrance from the exterior is granted only via a physical key using the industry-standard LA Keyway.
• Constant Free Egress: The interior lever always allows for unhindered exit, maintaining strict compliance with NFPA 101 Life Safety Codes.
• Anti-Vandal Design: Because the exterior lever does not retract the latch without a key, it is highly resistant to "lever riding" and forced entry attempts.

Architectural Excellence: The LNL Lever Design

The LNL lever features a clean, contemporary aesthetic that complements modern building designs without sacrificing strength.

• ADA Compliance: The ergonomic LNL linear lever is fully accessible, requiring minimal force to operate, making it suitable for all public and private commercial spaces.
• Superior Return Springs: Equipped with high-strength internal springs that prevent lever sag, keeping the hardware perfectly horizontal throughout the life of the opening.
• Heavy-Duty Trim: The rose and lever assembly are constructed from solid materials to withstand high-frequency use in schools, hospitals, and government buildings.

Key Product Features

• ANSI/BHMA Grade 1 Certified: Exceeds the highest industry standards for security, durability, and cycle life.

• Storeroom Function (F07): Exterior lever is always locked; entry by key only.

• LA Keyway: Ships with the popular Sargent LA Keyway 6-pin cylinder for seamless integration into existing master key systems.

• Fire Rated: UL/cUL Listed for use on 3-hour fire-rated doors, ensuring the integrity of fire barriers.

• Non-Handed Chassis: The lock body is easily field-reversible, providing a universal fit for any door swing.

• Stainless Steel Latchbolt: Features a 3/4" throw anti-friction latchbolt for smooth operation and long-term reliability.

Technical Specifications

Ordering & Installation Information

The Sargent 8204 LNL is designed for rapid installation into a standard mortise door prep. This unit is fully compatible with Sargent High-Security Key Systems, including Degree® and Signature, as well as Interchangeable Core (IC) formats for facilities requiring quick re-keying.
