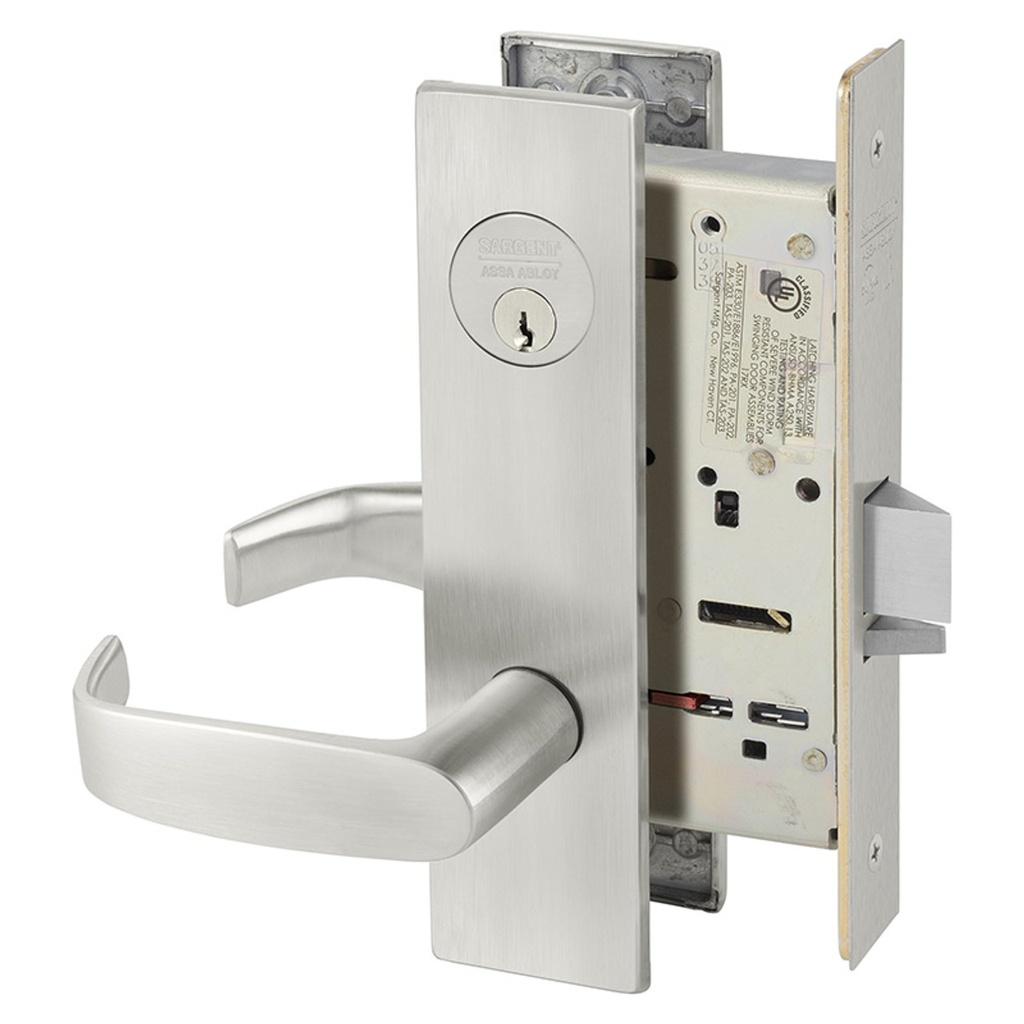

Sargent 8204 LE1L Storeroom Function Mortise Lockset - LA Keyway
The Sargent 8204 LE1L is a premier Grade 1 Heavy-Duty Mortise Lockset engineered for high-security commercial, institutional, and industrial applications. As a cornerstone of the Sargent 8200 Series, this lockset is designed to provide maximum resistance against physical abuse while offering the legendary reliability of a heavy-gauge steel mortise chassis. The 8204 Storeroom Function (ANSI F07) is the industry standard for securing mechanical rooms, IT closets, and perimeter doors where unauthorized entry is strictly prohibited, but immediate exit is required.
High-Security Storeroom Function (ANSI F07)
The 8204 function is purpose-built for total access control. The outside lever is always rigid and locked, ensuring the door cannot be left accidentally unsecured.
- Keyed Entry Only: Entrance from the exterior is granted only via a physical key using the industry-standard LA Keyway.
- Constant Free Egress: The interior lever always allows for unhindered exit, maintaining strict compliance with NFPA 101 Life Safety Codes.
- Anti-Vandal Design: Because the exterior lever does not retract the latch without a key, it is highly resistant to "lever riding" and forced entry attempts.
- Security Grade 1: Meets BHMA Series 1000 Grade 1 requirements, outperforming standard locks in torque resistance and pull strength.
Architectural Excellence: The LE1L Lever Design
The LE1L trim features the LE1 escutcheon paired with the L lever, offering a clean, contemporary aesthetic that complements modern building designs without sacrificing strength.
- ADA Compliance: The ergonomic LE1 escutcheon plate with L Lever is fully accessible, requiring minimal force to operate, making it suitable for all public and private commercial spaces.
- Superior Return Springs: Equipped with high-strength internal spring cartridges that prevent lever sag, keeping the hardware perfectly horizontal throughout the life of the opening.
- Heavy-Duty Trim: The rose and lever assembly are through-bolted to the door for increased stability and resistance to tampering.
Key Product Features
- ANSI/BHMA Grade 1 Certified: Exceeds the highest industry standards for security, durability, and cycle life.
- Storeroom Function (F07): Exterior lever is always locked; entry by key only.
- LA Keyway: Ships with the popular Sargent LA Keyway 6-pin cylinder for seamless integration into existing master key systems.
- Fire Rated: UL/cUL Listed for use on 3-hour fire-rated doors, ensuring the integrity of fire barriers.
- Non-Handed Chassis: The lock body is easily field-reversible, providing a universal fit for any door swing.
- Stainless Steel Latchbolt: Features a 3/4" throw anti-friction latchbolt for smooth operation and long-term reliability.
Technical Specifications
| Feature | Details |
| Function | 04 Storeroom (ANSI F07) |
| Series | 8200 Heavy-Duty Mortise |
| Lever Style | LE1L (LE1 Lever / L Rose) - ADA Compliant |
| Cylinder | 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Case Material | Heavy-Gauge Steel with Zinc Dichromate Finish |
| Latchbolt | 3/4" Throw, Stainless Steel |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8204 LE1L is designed for rapid installation into a standard mortise door prep. This unit is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for facilities requiring quick re-keying.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F07 - Storeroom |
| Trim Design | LE1L |
| Series | Sargent - 8200 Series |
