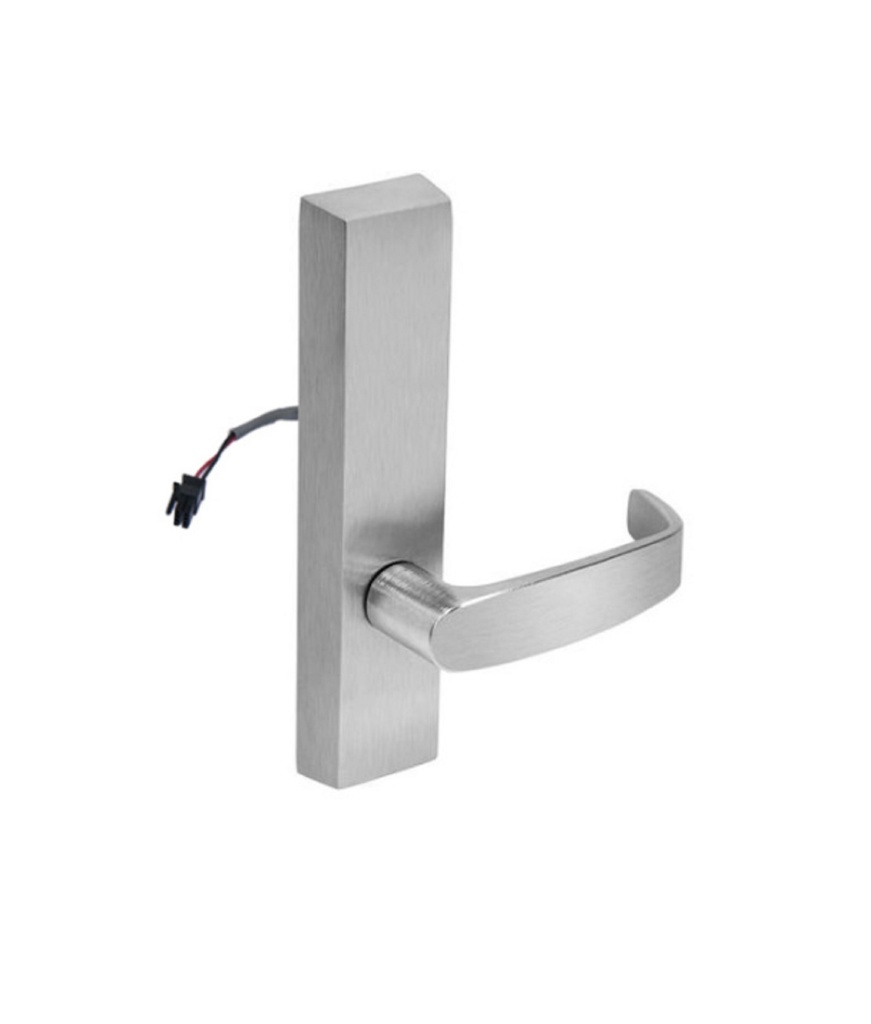

Sargent Mfg. 773 ETL US26D x 24 VDC Outside Trim, Storeroom - Fail Safe
**** Note: This is intended for Wide Stile (8700 Series) Surface Vertical Rod Exit Devices ****
The Sargent 773 ETL is a professional-grade electrified outside trim specifically designed for high-security commercial and institutional facilities. Engineered for use with Sargent 8700 Series Wide Stile Surface Vertical Rod (SVR) exit devices, this trim features Fail-Safe operation, meaning the lever remains unlocked when power is removed—ensuring safety and emergency access during power outages. With its US26D (626) Satin Chrome finish and EcoFlex technology, it provides a sleek, energy-efficient solution for centralized access control management.
Advanced Electrified Security & Efficiency
The 773 ETL is the standard for modern access control, integrating seamlessly with building security systems while maintaining rigorous safety standards.
- Fail-Safe (Power-to-Lock) Operation: In this configuration, the lever is unlocked when power is off. This is essential for specific life-safety paths where re-entry or unrestricted passage is required during fire alarms or power failure.
- EcoFlex Technology: This electrified trim utilizes EcoFlex technology, which reduces energy consumption by up to 95% compared to traditional solenoid-driven trims. This significant reduction in power draw allows for more devices per power supply and reduces heat buildup.
- Universal Voltage Capability: The trim is designed to operate efficiently at 24VDC, making it compatible with the majority of standard commercial access control power supplies.
- Vandal-Resistant Design: The 700 Series trim is through-bolted to the door chassis, providing superior durability and resistance against tampering or forced entry in high-traffic school and healthcare corridors.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 773 ETL |
| Voltage | 24VDC Standard |
| Locking State | Fail-Safe (Power Off Unlocks Lever) |
| Compatible Devices | 8700 Series (Wide Stile Surface Vertical Rod) |
| Finish | US26D (626) Satin Chrome |
| Lever Design | L-Lever (Standard) |
| ANSI Function | Electrified ET Trim (No Cylinder Override) |
| Certification | ANSI/BHMA Grade 1 |
| Current Draw | Approximately 15mA continuous @ 24VDC |
High-Intent Commercial Applications
The Sargent 773 ETL 24VDC is a critical component for facility managers looking to implement a centralized, electrified security perimeter.
- Healthcare & Staff Entry: Provides secure, electrified access control for staff-only areas while allowing for immediate fail-safe unlocking during building emergencies.
- Education & Campus Security: Ideal for high-traffic hallway doors that must be managed remotely by a central security desk.
- Stairwell Management: Used on stairwell doors to allow for re-entry from the stairwell side during a fire alarm (when paired with a fail-safe power supply).
- Life-Safety Compliance: While the exterior is access-controlled, the interior 8700 Series exit device always ensures immediate, free egress for building occupants.
Critical Ordering & Installation Notes
- Handing Required: This trim is handed and must be specified as Left Hand Reverse (LHR) or Right Hand Reverse (RHR) at the time of purchase. It is not field-reversible in most electrified configurations.
- No Key Override: The 773 function is a "Storeroom" style electrified trim with no cylinder override. If you require a manual key backup, consider the 775 ETL series.
- Power Requirements: To ensure peak performance and longevity, always use a regulated and filtered 24VDC power supply.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Trim Design | ETL |
| Voltage | 24 VDC |
| Exit Device Trim Function | Fail Safe |
