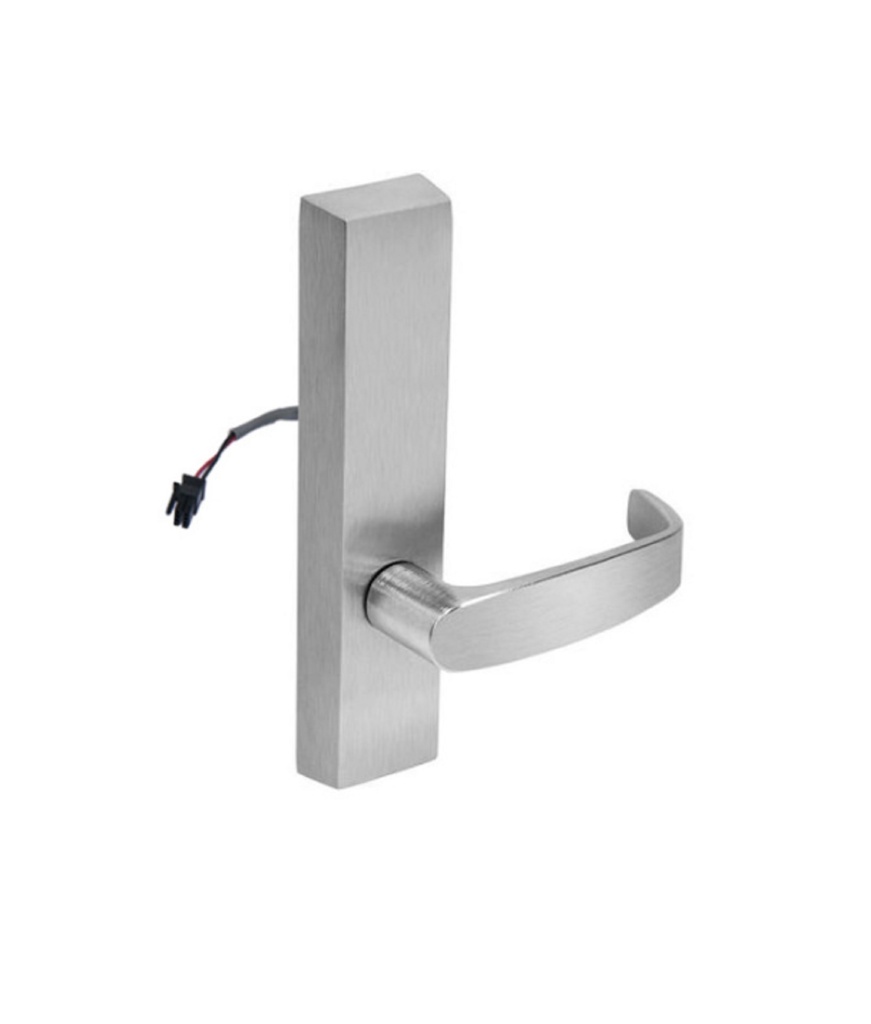

Sargent Mfg. 773-8 ETL US26D x 24 VDC Outside Trim, Storeroom - Fail Safe
This is intended for:
- Narrow Stile (8500 Series) and Wide Stile (8800 Series) Rim Exit Devices
- Surface Vertical Rod less Bottom Rod (NB8700 Series)
- Surface Vertical Rod Devices (SP & PP/PR Series)
The Sargent 773-8 ETL is a high-security electrified outside lever trim engineered for heavy-duty commercial and institutional applications. Specifically designed for Sargent 80 Series Rim and Surface Vertical Rod (SVR) exit devices, this trim features Fail-Safe operation, ensuring the lever unlocks automatically when power is removed. Finished in US26D (626) Satin Chrome and powered by EcoFlex™ technology, it provides a high-performance, energy-efficient solution for centralized access control.
Advanced Electrified Security & Efficiency
The 773-8 ETL integrates sophisticated electronic control with the rugged mechanical reliability of the Sargent 700 Series.
- Fail-Safe (Power-to-Lock) Operation: The lever is unlocked when power is off, making this trim the ideal choice for life-safety paths and stairwell re-entry points where unrestricted passage is required during fire alarms or power failures.
- EcoFlex™ Technology: This trim utilizes an innovative actuator that reduces energy consumption by up to 95% compared to traditional electrified hardware. With a continuous draw of only 15mA, it minimizes heat buildup and allows for more devices per power supply.
- Versatile Device Compatibility: The -8 suffix indicates specialized mounting for 8500 Narrow Stile Rim, 8800 Wide Stile Rim, and various Surface Vertical Rod devices, including the NB8700 (No Bottom Rod) series.
- Vandal-Resistant Engineering: Through-bolted to the door for maximum stability, this Grade 1 trim is built to withstand the rigors of high-traffic school corridors and healthcare facilities.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 773-8 ETL |
| Voltage | 24VDC (Regulated) |
| Locking State | Fail-Safe (Power Off Unlocks Lever) |
| Compatible Rim Devices | 8500 Series (Narrow) & 8800 Series (Wide) |
| Compatible SVR Devices | NB8700, SP, PP/PR Series |
| Finish | US26D (626) Satin Chrome |
| Function | 73 Function (Storeroom - No Cylinder Override) |
| Current Draw | 15mA Continuous @ 24VDC |
| Handing | Handing Required (Specify LHR or RHR) |
High-Intent Commercial Applications
The Sargent 773-8 ETL 24VDC is a critical component for facility managers implementing remote locking and building-wide security protocols.
- Stairwell Re-Entry: Complies with building codes that require stairwell doors to unlock during a fire emergency to prevent occupants from being trapped in a smoky stairwell.
- Healthcare Access Control: Enables centralized management of restricted wings or staff-only corridors while ensuring safety during a power loss.
- Educational Institutions: Perfect for securing perimeter rim-device doors that must be capable of remote lockdown or scheduled unlocking.
- Life-Safety Compliance: While the exterior is electronically controlled, the interior 80 Series exit device always ensures immediate, uninhibited egress for all building occupants.
Critical Ordering & Installation Notes
- Handing Required: This electrified trim is handed and not field-reversible. You must confirm and specify Left Hand Reverse (LHR) or Right Hand Reverse (RHR) based on your door swing when placing your order.
- No Key Override: The 773 function is a purely electrified control with no cylinder backup. For applications requiring a manual key override, please inquire about the 775 ETL series.
- Power Requirements: To protect the EcoFlex™ circuitry and ensure consistent performance, use a filtered and regulated 24VDC power supply.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Door Handing | RHR or LHR |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Trim Design | ETL |
| Voltage | 24 VDC |
| Exit Device Trim Function | Fail Safe |
