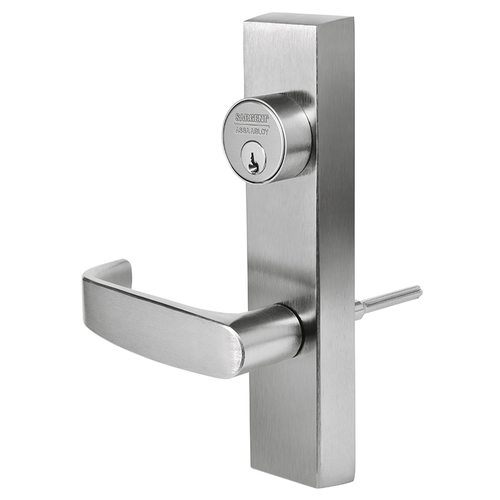

Sargent 743-4 ETL Outside Trim, Freewheeling Lever
This is intended for:
- Narrow Stile (8400 Series) and Wide Stile (8600 Series) Concealed Vertical Rod Exit Devices
Advanced Security for Concealed Vertical Rods
The 743-4 ETL trim is distinguished by its -4 suffix, indicating the offset mounting tabs (top and bottom) required for precise integration with Sargent’s concealed rod systems.
- Freewheeling Vandal Resistance: The lever handle is designed to bypass the locking mechanism when secured. This prevents intruders from using a pipe or heavy tool to "force" the lever and snap the internal spindle.
- Specialized Device Compatibility: This trim is the dedicated solution for AD/MD8400 and AD/WD/MD8600 series concealed vertical rod devices.
Technical Specifications
| Feature | Details |
| Model Number | Sargent 743-4 ETL |
| Trim Function | |
| Lever Design | L Lever (Standard) |
| Escutcheon Type | ET Design (8-1/16" H x 1-13/16" W) |
| Compatible Devices | 8400 & 8600 Series (Concealed Vertical Rod) |
| Mounting Suffix | -4 (Offset Mounting Tabs Top & Bottom) |
| Cylinder Type | Requires 1-1/8" Mortise Cylinder (Sold Separately) |
| Standard Finishes | US26D (Satin Chrome), US10B (Oil Rubbed Bronze), US3, US4, US10 |
| Handing | Handing Required (LHR or RHR) |
Why Specify the 743-4 ETL Trim?
For architects and facility managers working with concealed vertical rod systems, the Sargent 743-4 ETL provides a seamless architectural look with industrial-strength protection. The concealed vertical rod setup (CVR) is often chosen for its clean aesthetic and the fact that there are no surface rods to be tampered with. Matching that with a freewheeling lever ensures that the exterior of the opening is just as secure as the interior.
Ideal Applications:
- Educational Facilities: Preventing student tampering with hallway or classroom exit doors.
- Hospitals & Healthcare: Providing ADA-compliant, easy-access levers that can be locked down instantly.
- Corporate Offices: High-end aesthetics for wide-stile aluminum or hollow metal doors.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Door Handing | RHR or LHR |
| Cylinder Options | LA Keyway or Less Cylinder |
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Exit Device Trim Function | Classroom |
| Trim Design | ETL |
