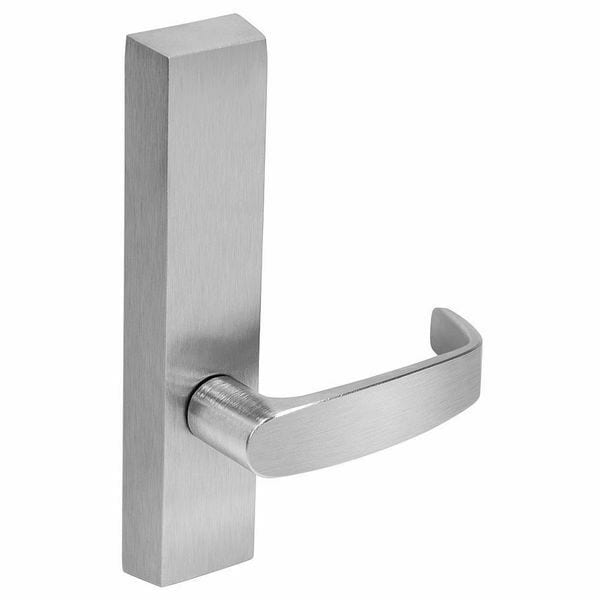

Sargent 715 ETL US26D Exit Trim, Passage Function

This is intended for:

• Narrow Stile (8300 Series) Wide Stile (8900 Series) Mortise Exit Devices
• Surface Vertical Rod less Devices (8700 Series)

The Sargent 715 ETL US26D Outside Trim is a high-performance commercial lever handle engineered to provide unrestricted access for high-traffic environments. Operating in a Passage Function, this trim features a lever that is always active and never locks. This makes it the premier accessibility solution for interior corridors, common areas, and non-secure transition points where ease of movement is the priority. Finished in a durable US26D (Satin Chrome), the ETL lever design is fully ADA compliant, providing an ergonomic hardware solution that balances a professional aesthetic with industrial-grade durability.

Designed for architectural flexibility, the Sargent 715 ETL serves as a compatibility solution for Narrow Stile (8300 Series) and Wide Stile (8900 Series) mortise exit devices, as well as Wide Stile Surface Vertical Rod (8700 Series) systems. By through-bolting directly to the exit device chassis, this trim acts as a structural reinforcement solution, ensuring that the exterior handle can withstand constant, heavy-duty use without sagging or losing alignment. For facility managers in schools, hospitals, and office complexes, this trim offers a standardized hardware solution that simplifies movement throughout a building while maintaining the high performance of Sargent 80 Series exit hardware.

Mechanical Utility & ANSI Function Summary

The 715 ETL trim is designed to facilitate the "always-open" flow of occupants while providing a durable interface for panic hardware:

• Passage Function (ANSI 14): The lever is always active and cannot be locked. This is the primary operational efficiency solution for doors that must remain accessible to the public or staff during all hours of operation.
• Heavy-Duty Construction: Built to ANSI/BHMA Grade 1 standards, ensuring the trim remains functional over millions of cycles, providing a long-term reliability solution for high-occupancy buildings.
• Through-Bolted Stability: The trim is mounted through the door and into the interior panic bar, acting as a vandal-resistant solution that prevents the handle from being pulled or twisted away from the door face.
• Universal 80 Series Integration: Specifically timed to engage the internal hubs of Sargent 80 Series mortise and SVR devices, ensuring a smooth mechanical solution with zero latch-drag.

Technical Specifications

Engineered Solutions for High-Traffic Public Spaces

The Sargent 715 ETL addresses the unique technical and aesthetic demands of modern commercial facility management:

• High-Volume Access Solution: Ideal for main thoroughfares and cafeteria entrances, this trim eliminates the frustration of locked doors in non-secure areas, acting as a user-convenience solution for staff and visitors.
• ADA Accessibility Solution: The ETL lever design allows for "no-grasp" operation with a closed fist or the side of an arm, ensuring that your facility meets all federal accessibility guidelines and universal design standards.
• Structural Longevity: In high-traffic schools or transit hubs, levers are prone to mechanical fatigue. The Sargent 715 series utilizes a heavy-duty internal return spring, providing a durability solution that prevents lever sag.
• Aesthetic Uniformity: The Satin Chrome finish provides a design-unified solution, allowing the exterior trim to match the interior exit device and other nearby hardware like hinges, closers, and kick plates.
• Life Safety Compliance: While the exterior provides easy entry, the interior exit device remains active for immediate egress. This is a critical life-safety solution that balances occupant flow with emergency exit codes.

Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.

For more information as to which 700 Series Trim goes with which 80 Series Device please see below:
