Sargent 700106-ETL-26D Vertical Rod Multi Point Lock, 84"- 96" Door Height, Blank Plate x Key Operates Exit Trim
Sargent 700106-ETL-26D-84" Vertical Rod Multi Point Lock, Blank Plate x Key Operates Exit Trim
Lead Time: 3-4 Weeks

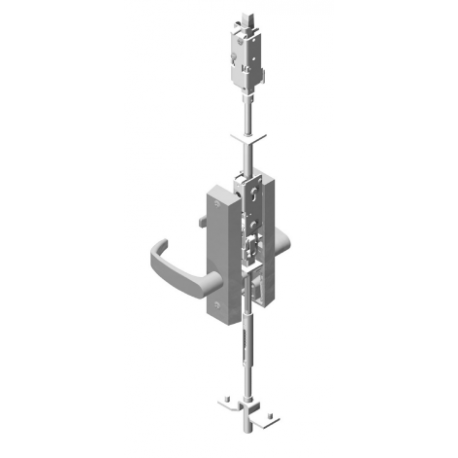

Sargent 700106-ETL-26D Vertical Rod Multi Point Lock for 84"- 96" Door Height
- Inside Function: 01 - Blank Escutcheon Plate
- Exterior Function: 06 - Key unlocks Trim; Trim retracts latch; Trim relocks when key is removed
Are you in need of a flexible and trustworthy multi-point lock? The 7000 Series concealed vertical rod offers exactly that, boasting 36 functions compatible with numerous door styles. Its heavy-duty construction guarantees exceptional strength and durability, making it well-suited for challenging environments such as commercial, educational, and healthcare facilities.

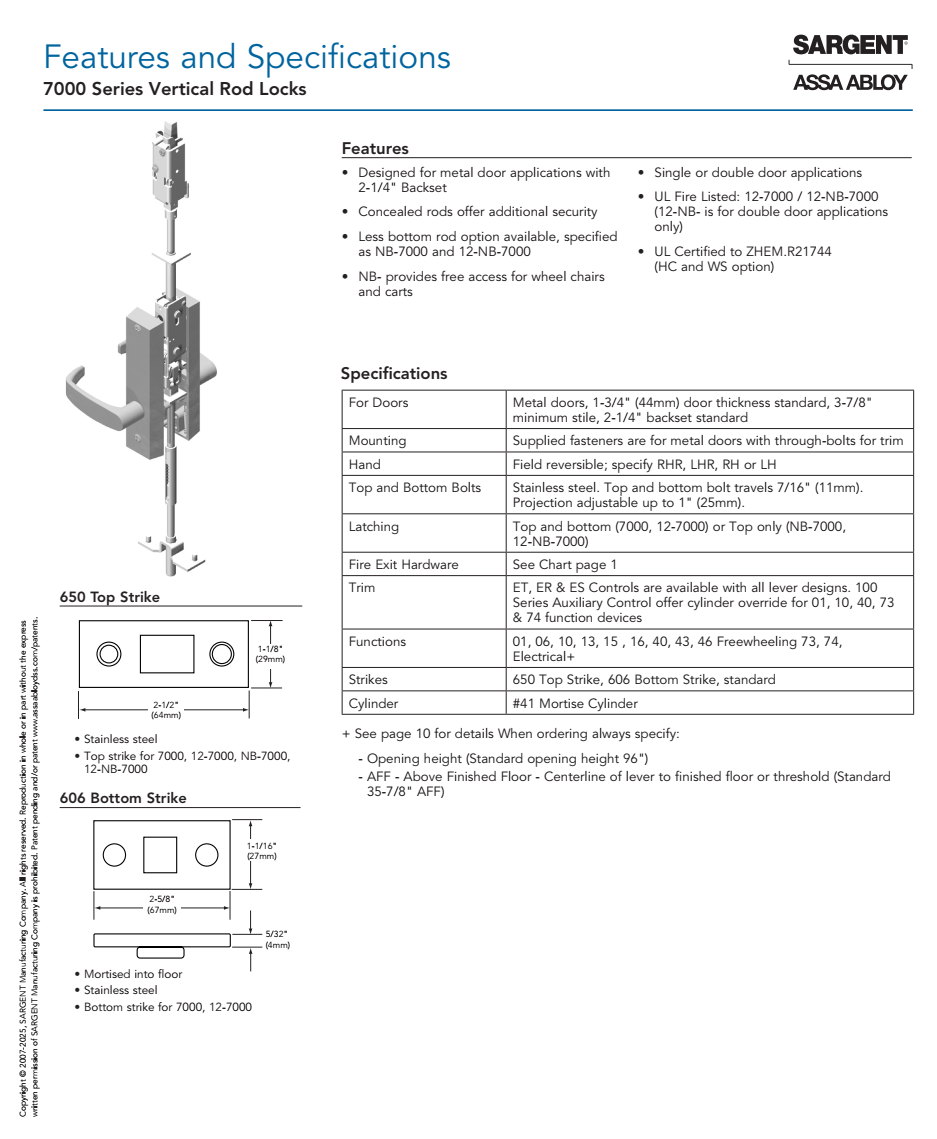

Specifications:
- For Doors: Metal doors, 1-3/4" (44mm) door thickness standard, 3-7/8" minimum stile, 2-1/4" backset standard
- Mounting: Supplied fasteners are for metal doors with through-bolts for trim
- Hand: Field reversible; specify RHR, LHR, RH or LH
- Top and Bottom Bolts: Stainless steel Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)
- Latching: Top and bottom (7000, 12-7000) or Top only (NB-7000, 12-NB-7000)
- Trim: ET, ER & ES Controls are available with all lever designs 100 Series Auxiliary Control offer cylinder override for 01, 10, 40, 73
- & 74 function devices

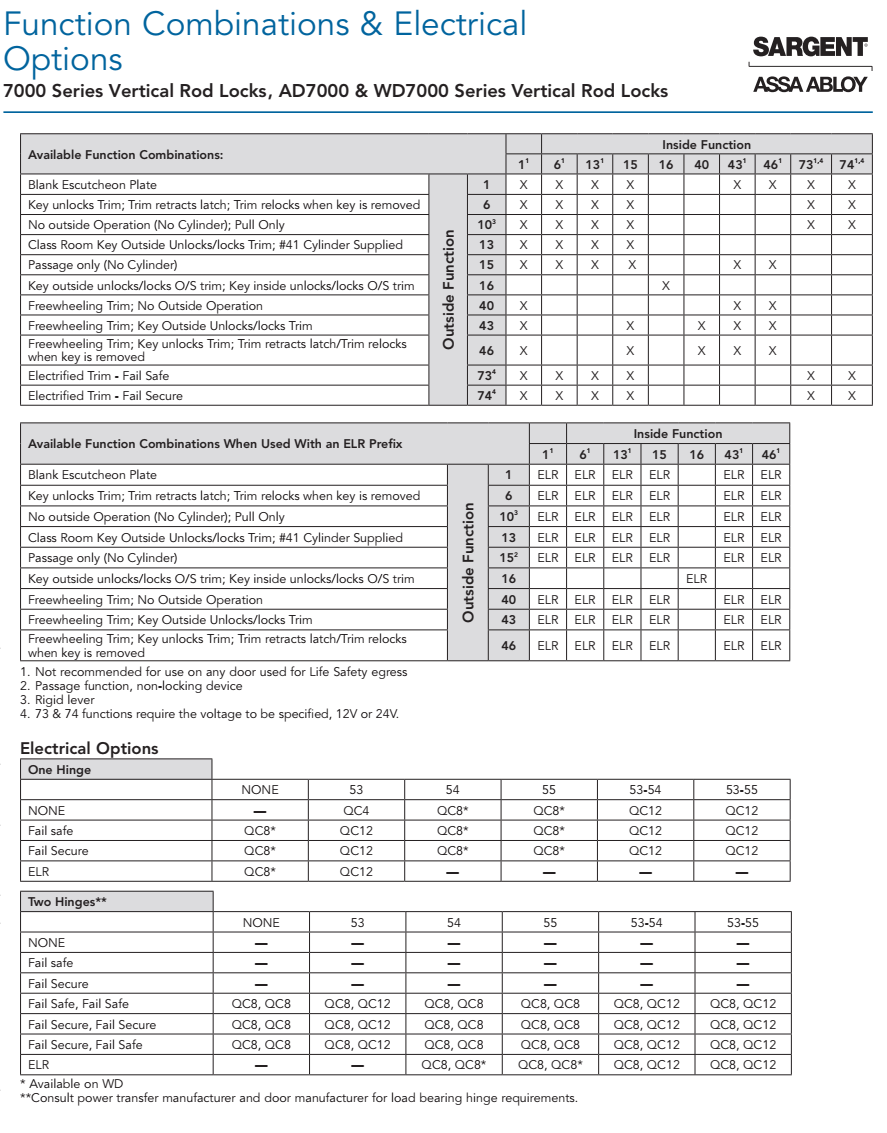

- Functions: 01, 06, 10, 13, 15 , 16, 40, 43, 46 Freewheeling 73, 74, Electrical+
- Strikes: Standard - 650 Top Strike and 606 Bottom Strike
- Cylinder: #41 Mortise Cylinder (1-1/8" Length)
Features:
- Designed for metal door applications with 2-1/4" Backset
- Concealed rods offer additional security
- Less bottom rod option available, specified as NB-7000 and 12-NB-7000
- NB- provides free access for wheel chairs and carts
- Single or double door applications
- UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
- UL Certified to ZHEM R21744 (HC and WS option)
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
**** Note: Door Handing Information is needed ****
| General - US Finishes | US26D - Satin Chrome or US10BE - Oil Rub Bronze Equal |
| Left/Right Handed | LHR - Left Hand Reverse or RHR - Right Hand Reverse |
| Cylinder Options | LA Keyway or Less Cylinder or SFIC or LFIC - Sargent |

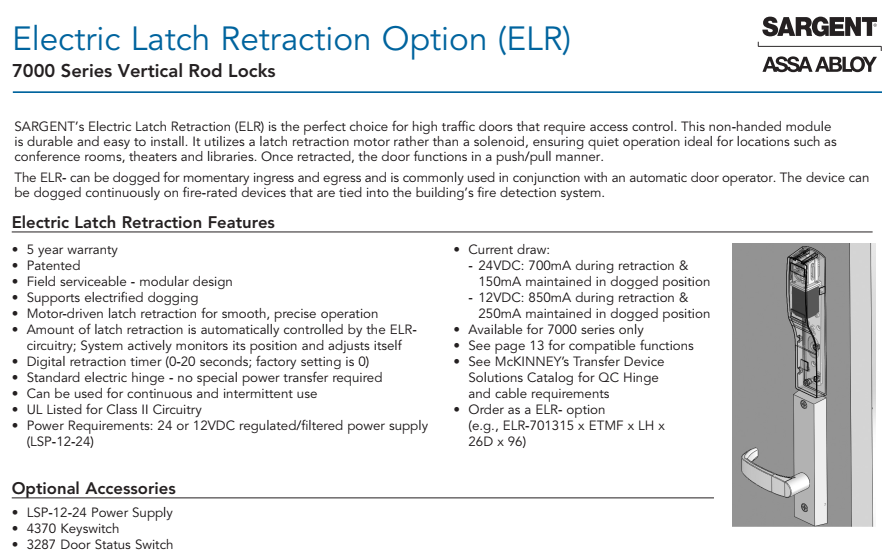

| Sargent Multi Point Prefixes | 53 - Top Bolt Monitoring or 54 - Outside Lever Monitoring or ELR - Electric Latch Retraction or HC - Hurricane Code or WS - Windstorm Certified or Tall Door - 96" - 120" Door Height |
| Brand | Sargent |
| Series | Sargent 7000 Series |
| Trim Design | ETL |
| Multi Point Interior Function | 01 - Blank Plate |
| Multi Point Exterior Function | 06 - Always Locked, Key Operates Exit Trim |
| Door Height | 7'0" Dr Ht, 8'0" Dr Ht |
