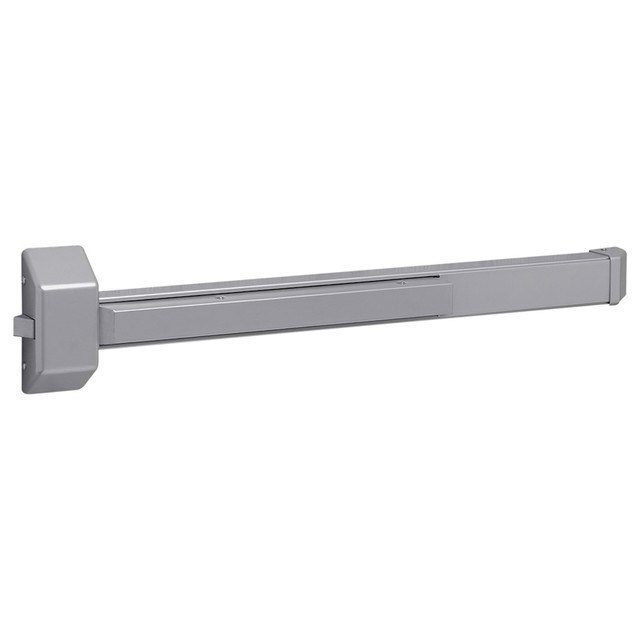

Sargent 3828 Series Rim Exit Device – Wide Stile Panic Hardware
The Sargent 3828 Series is a heavy-duty, ANSI/BHMA Grade 1 rim exit device engineered for reliability and ease of maintenance in high-traffic commercial environments. Designed for wide stile doors, this panic bar features a chassis-mounted unit construction and a roll-formed steel rail assembly that provides superior strength. Whether used as a standalone "Exit Only" device or paired with various outside trim functions, the Sargent 3828 ensures building occupants have a safe, intuitive means of egress in any institutional setting.
Durable Engineering and Versatile Design
The 3828 Rim Exit Device is built to handle the daily rigors of schools, hospitals, and government facilities.
- Chassis-Mounted Unit Construction: This specialized design simplifies installation and allows for quick field maintenance, reducing long-term labor costs.
- Architectural Profile: Features a tapered push rail and angled steel covers that offer a clean, modern look while preventing snagging or tampering.
- Flexible Functionality: Compatible with up to five different Sargent outside trim functions (sold separately), or can be used as a simple exit-only device for perimeter security.
- Fire-Rated Options: Available as Fire Exit Hardware (12 prefix), making it suitable for single door openings up to 48" wide. For mineral core wood or non-reinforced metal doors, thru bolts ensure a secure, code-compliant attachment.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model | 3828 Series |
| Device Type | Rim Exit Device (Wide Stile) |
| Door Thickness | 1-3/4" Standard |
| Minimum Stile Width | 4-1/2" |
| Latchbolt | Stainless Steel, 3/4" Throw |
| Handing | Non-Handed (Field Reversible) |
| Dogging | Allen-Key Dogging (Standard on Non-Fire Rated) |
| Safety Listings | UL Listed / UL Listed to Canadian Standards |
| Grade Rating | ANSI/BHMA Grade 1 |
| Warranty | 3 Year Limited Warranty |
Sizing and Installation Data
To ensure a proper fit without unnecessary field modifications, the Sargent 3828 is available in three distinct rail sizes:
| Size Code | Door Width Range | Cutting Requirement |
| Size F | 33" through 36" | No cutting for 36" door |
| Size J | 37" through 42" | No cutting for 42" door |
| Size G | 43" through 48" | No cutting for 48" door |
Finish and Trim Compatibility
The 3828 Series is finished in durable sprayed enamels designed to withstand industrial cleaning and environmental wear:
- EN (689): Sprayed Aluminum Enamel
- EB (690): Sprayed Bronze Enamel
This device integrates seamlessly with Sargent 28 Series Lever & Rose trims, as well as GTB/HTB pulls and plates. For double door applications, this rim device can be paired with a #980 Hardware Mullion or a #644 Double Door Strike (note that the #644 strike will alter your backset requirements).
Ordering Note: The Sargent 3828 device and outside trim are sold separately. Please verify your door width and fire-rating requirements before selection.
| General - US Finishes | EN - Aluminum Enamel or EB - Bronze Enamel |
| Door Opening Width | 36 Inches or 42 Inches or 48 Inches |
| Exit Device Fire Rating | Non Rated Door or Fire Rated Door |
| Brand | Sargent |
| Exit Device Type | Rim Exit Device |
| Series | Sargent - 30 Series |
