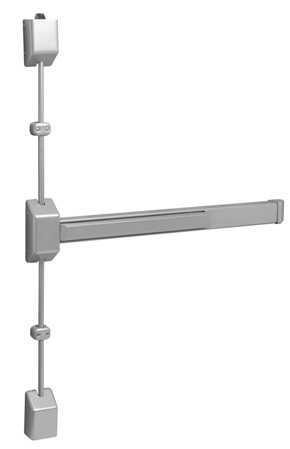

Sargent 3727 SVR Exit Device — 30 Series Surface Vertical Rod
The Sargent 3727 SVR is a high-performance surface vertical rod exit device engineered for simplicity, reliability, and Grade 1 durability. Part of the Sargent 30 Series, this "stocking" device is a versatile solution for commercial environments that require a rugged pushpad design with straightforward installation. Designed for both single and double door applications, the 3727 Series ensures safe and efficient egress in high-traffic settings like offices, schools, and retail centers.
Rugged Reliability and Architectural Design
The 3727 SVR balances industrial-strength construction with a sleek, modern aesthetic that fits seamlessly into contemporary architectural designs.
- Chassis-Mounted Construction: The unit-based design ensures the device is exceptionally easy to install and maintain, making it a favorite for contractors and facility managers.
- Two-Point Latching: The surface-mounted vertical rods provide secure latching at both the top and bottom of the door, offering enhanced stability for double door openings.
- Eco-Friendly Aesthetics: Featuring a tapered push rail and angled steel covers, the device is designed to resist abuse and vandalism while maintaining a professional appearance.
- Flexible Functionality: Compatible with up to five functions using a variety of outside trims, allowing it to be tailored for passages, storerooms, or classroom settings.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model | 3727 Series |
| Device Type | Surface Vertical Rod (SVR) |
| ANSI/BHMA Grade | Grade 1 |
| Standard Door Height | 84" (Up to 96" with Extension Kit) |
| Stile Width | 4-1/2" Minimum |
| Handing | Non-Handed (Field Reversible) |
| Fire Rating | Available up to 3 Hours (12-Prefix) |
| Dogging | Allen-Key Dogging (Standard on Non-Fire Rated) |
| Warranty | 3-Year Limited Warranty |
Sizing and Field Sizing Options
The Sargent 3727 is available in three distinct rail sizes to accommodate a wide range of door widths without requiring excessive field cutting:
- Size F: For doors 33" through 36" (no cutting required for a 36" door).
- Size J: For doors 37" through 42" (no cutting required for a 42" door).
- Size G: For doors 43" through 48" (no cutting required for a 48" door).
Commercial Performance and Compliance
The 30 Series is built to bridge the gap between standard commercial hardware and high-performance institutional series. It meets a wide array of stringent safety and accessibility standards:
- Safety Certifications: Fully compliant with UL 305 for panic hardware and NFPA 101 Life Safety Codes.
- ADA Compliant: Designed with a pushpad that extends slightly more than half the device length, meeting the ease-of-use requirements for the Americans with Disabilities Act.
- System Integration: Can be seamlessly integrated with existing alarms or access control mechanisms for a comprehensive building security solution.
Ordering Note: The Sargent 3727 SVR device and outside trim are sold separately. For fire-rated openings, ensure you select the 12-3727 fire-rated option.
| General - US Finishes | EN - Aluminum Enamel or EB - Bronze Enamel |
| Door Opening Width | 36 Inches or 42 Inches or 48 Inches |
| Exit Device Fire Rating | Non Rated Door or Fire Rated Door |
| Brand | Sargent |
| Series | Sargent - 30 Series |
| Exit Device Type | SVR Exit Device |
| Door Height | 7'0" Dr Ht |
